Programming: Input modules

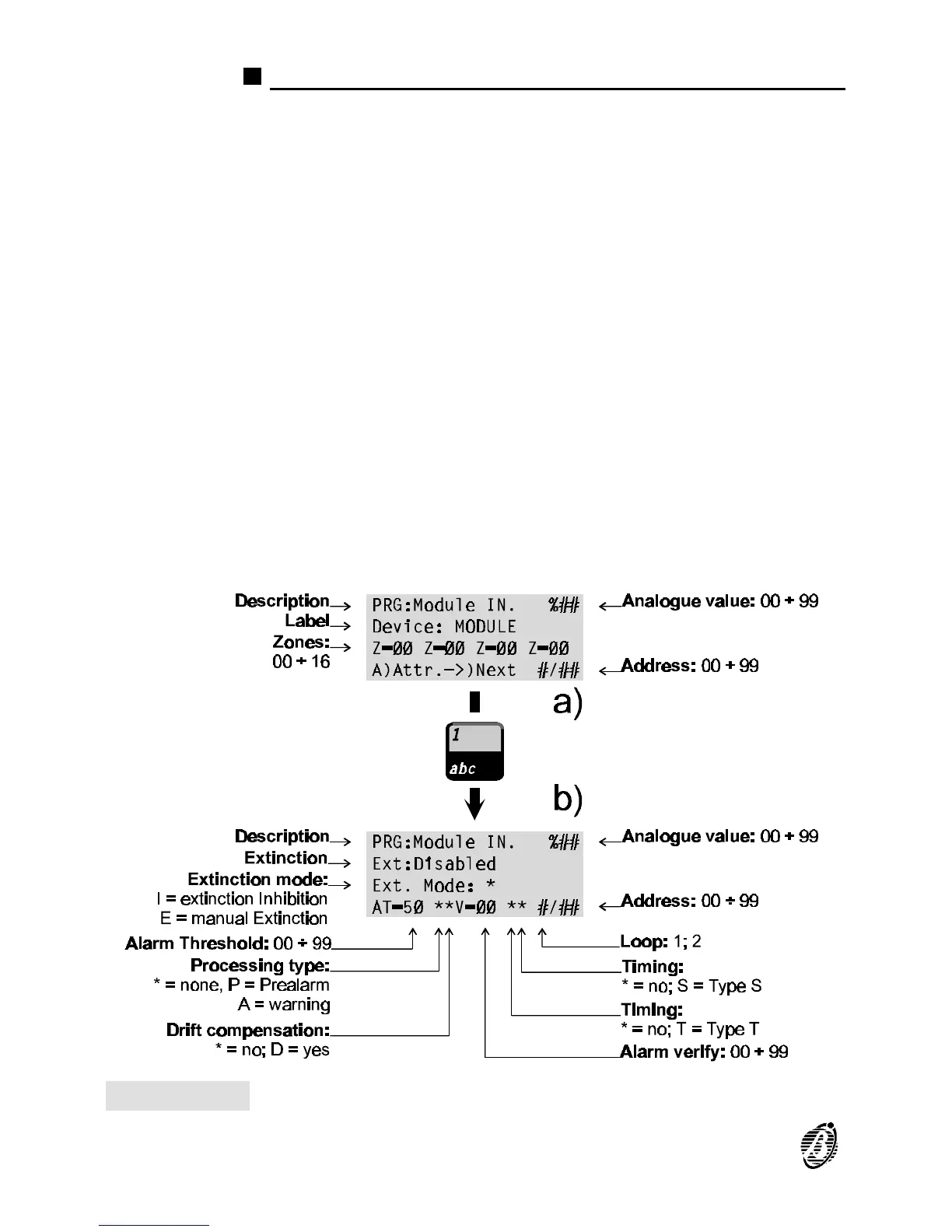

Figure 17 shows the input module parameters.
Ø To access the parameters shown in figure 17b ---- position the cursor on
the third line of the display then press key 1.
Ø Most of the input module parameters are described in the "Programming:
Fire Detectors" section. The following parameters are for input modules
only.
Extinction If this option is enabled, the device will operate in accordance with the se-
lected Extinction Mode (see below).
Extinction mode This option determines whether the input module must activate the devices
and outputs programmed as Manual Extinction (E) or Inhibit Extinction (I).
Figure 17 Input module parameters
46 Analogue Fire Control Panel FireClass200
