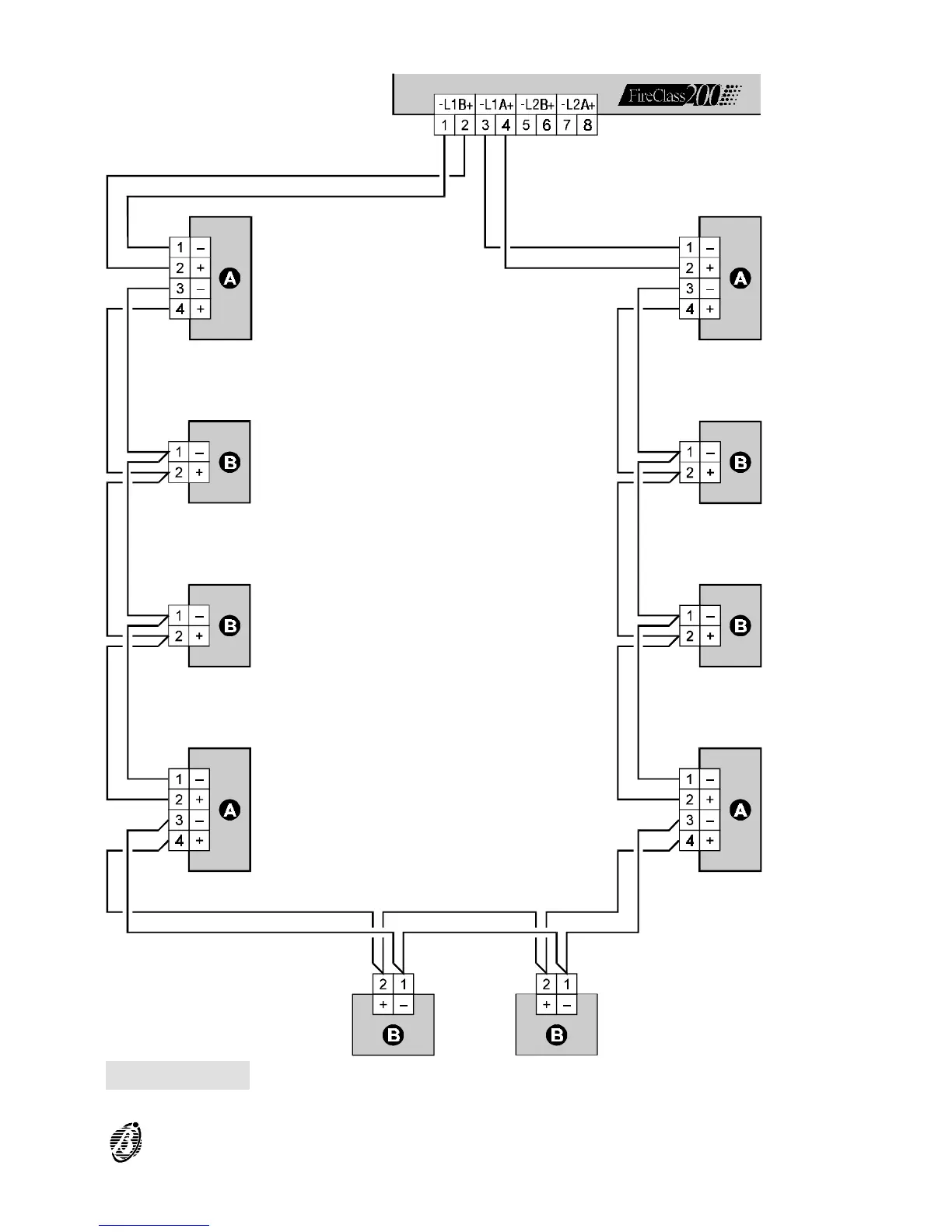

Figure 10 Wiring diagram of a 4 wire connection: a) Insulators; b) Compatible ana-
logue devices (Fire detectors, Input modules, Output modules, Conventional
Zone modules, Manual callpoints).
INSTALLATION 27
