HINT: Programming identical control functions or receive jobs for several amps is easily accomplished by creating a
group that includes all the desired amps and afterwards perform the programming in the group’s Configuration&
Information dialog. All settings are automatically applied to all amplifiers of that group, which saves time and effort
and additionally reduces the risk of programming errors.
Transmit Jobs: Transmit Job defines a function number that is sent as soon as a specific internal event (condition)
occurs in the amplifier.
Example:

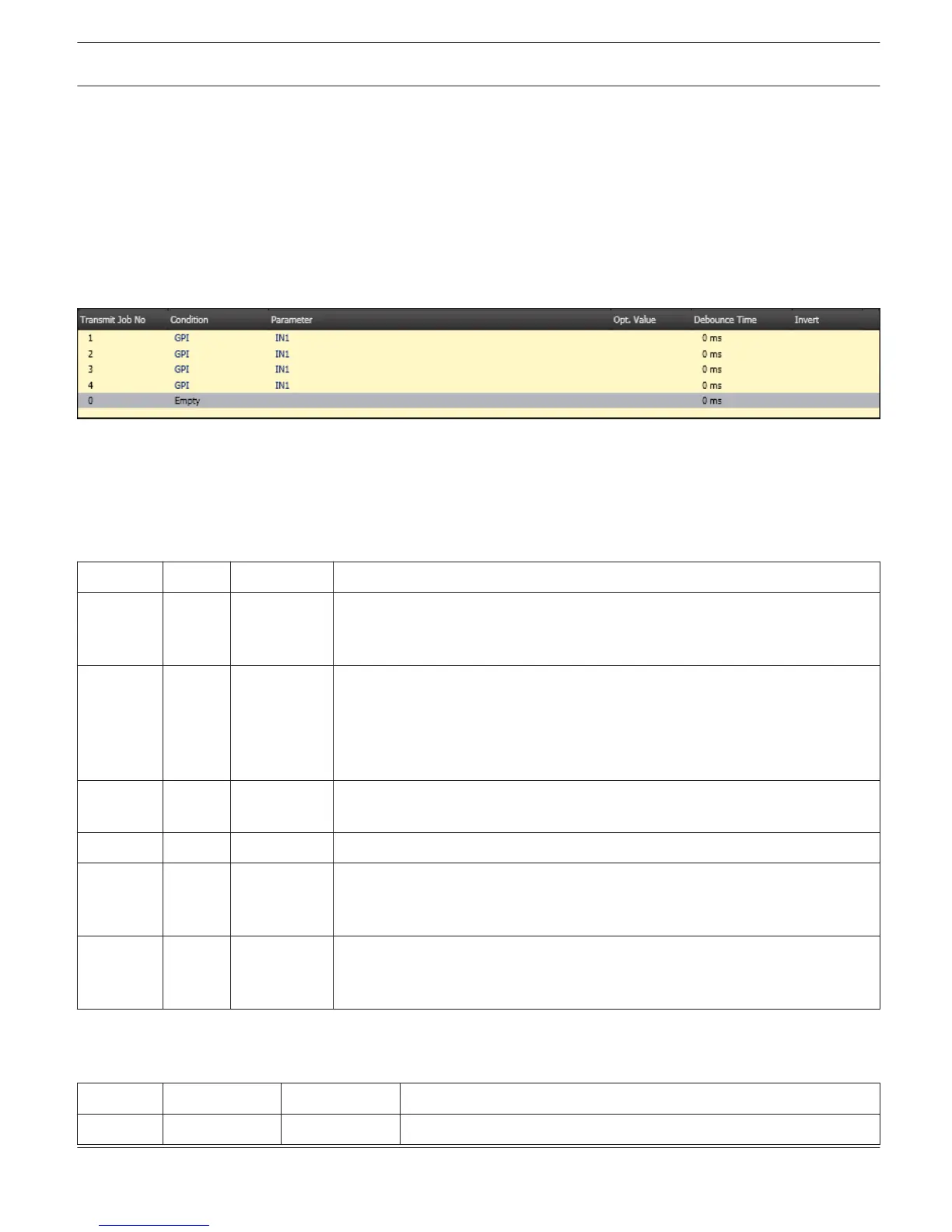

This example shows the programming of four Transmit Jobs. Jobs No. 1 and 2 are triggered by control input 1. Jobs
No. 3 and 4 are triggered by the status signaled from control input 2. The fifth transmit job has not been configured.
– Transmit Job Nr. 1: GPI IN1 (Job Code 1 is transmitted when control input 1 is closing)
– Transmit Job Nr. 2: Invert GPI IN1 (Job Code 2 is transmitted when control input 1 opens)
– Transmit Job Nr. 3: GPI IN2 (Job Code 3 is transmitted when control input 2 is closing)
– Transmit Job Nr. 4: Invert GPI IN2 (Job Code 4 is transmitted when control input 2 opens)
Element Default Range Description
Transmit
Job No
0 1...65536 Here, you can specify which job code numbers an amplifier transmits on the
occurrence of specific events. Entering random numbers between 0 and 65536
is possible.
Condition (empty) This column allows specifying an event (condition) that triggers the
transmission of the corresponding job code. Clicking the desired line in the
Condition menu opens a dialog field that shows all accessible functions. The
table "Output and Transmit Job Conditions" lists all functions together with
their individual settings.
Parameter (empty) Here you can set the different function parameters. For more information,
please refer to the table "Output and Transmit Job Conditions".
Opt. Value (empty) Certain functions allow specifying optional parameter values.
Debounce
Time
0 ms 0...10027 ms
16.33 ms
Steps
Here, you can program delay or debouncing times. A transmit job code is sent
following a specific event and after the specified time interval has past.
Invert This column allows entering whether a job code is transmitted when the
specified Condition is "true" (no entry) or "false" (click "X" to signal an inverted
state).
Input and Receive Job Functions: The following table lists all functions together with their individual settings, which
can be triggered via control input or Receive Job.
Function
Parameter Opt. Value Function executed
Empty - - None
IRIS-Net REMOTE AMPLIFIER | en 255
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
