SPEAKERD
LY
This page allows the programming of delay lines for the output channels.
SPEAKER
LIM
This page provides access to Peak Anticipation limiter and TEMP thermal limiter of each amplifier
channel.
The DSP functions of a remote amplifier can be accessed by clicking onto the SET key in the Amplifier Control Panel
followed by a click on the DSP tab in the Setup & Control Window.

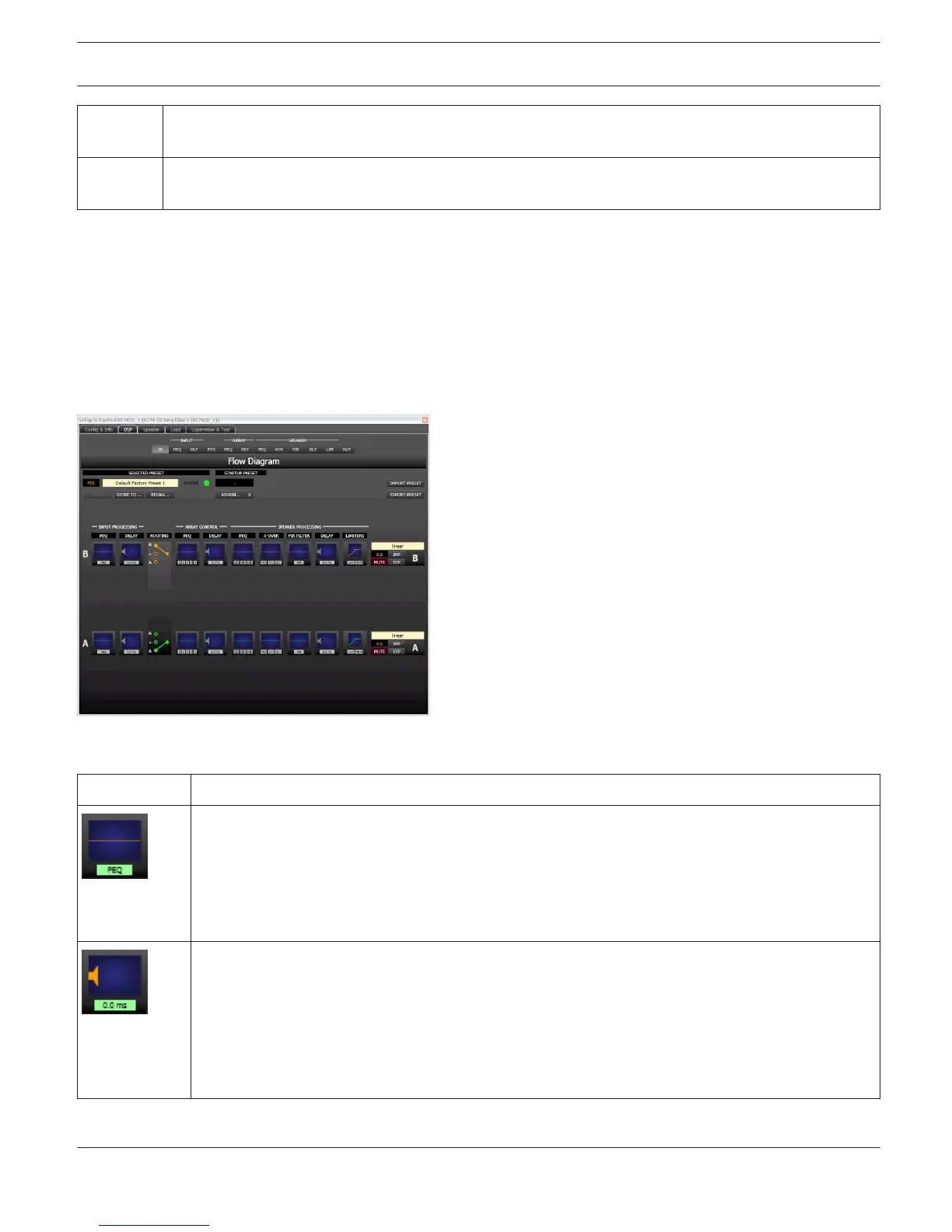

FLOW DIAGRAM
The FLOW DIAGRAM window shows a signal flow diagram, which offers a quick overview of all DSP settings of an
amplifier. Routing channels can be done directly in the diagram. Clicking onto the corresponding function blocks lets
you access all other DSP parameters. All parameters that are necessary for the saving and loading of loudspeaker
presets are also accessible from this window.
Function blocks
Element
Description
INPUT PEQ Block:
The INPUT PEQ block displays the 10 EQs of the corresponding input channel. The graph shows the
frequency response of the EQ block. A single click with the left mouse button onto this block opens
the Input Parametric EQ page.
Clicking with the right mouse button opens the Copy & Paste menu, which allows copying all
parameters of the corresponding EQ block to any other EQ block within the same project.
INPUT DELAY Block:
This displays the Delay of the input channels. The delay-value is displayed together with the
measurement unit. The graph shows the approximate usage of amount of delay being applied. A
single click with the left mouse button onto this block opens the Input Delay page.
Clicking with the right mouse button opens the Copy & Paste menu, which allows copying all
parameters of the corresponding Delay block to any
other Input Delay block within the same project.
