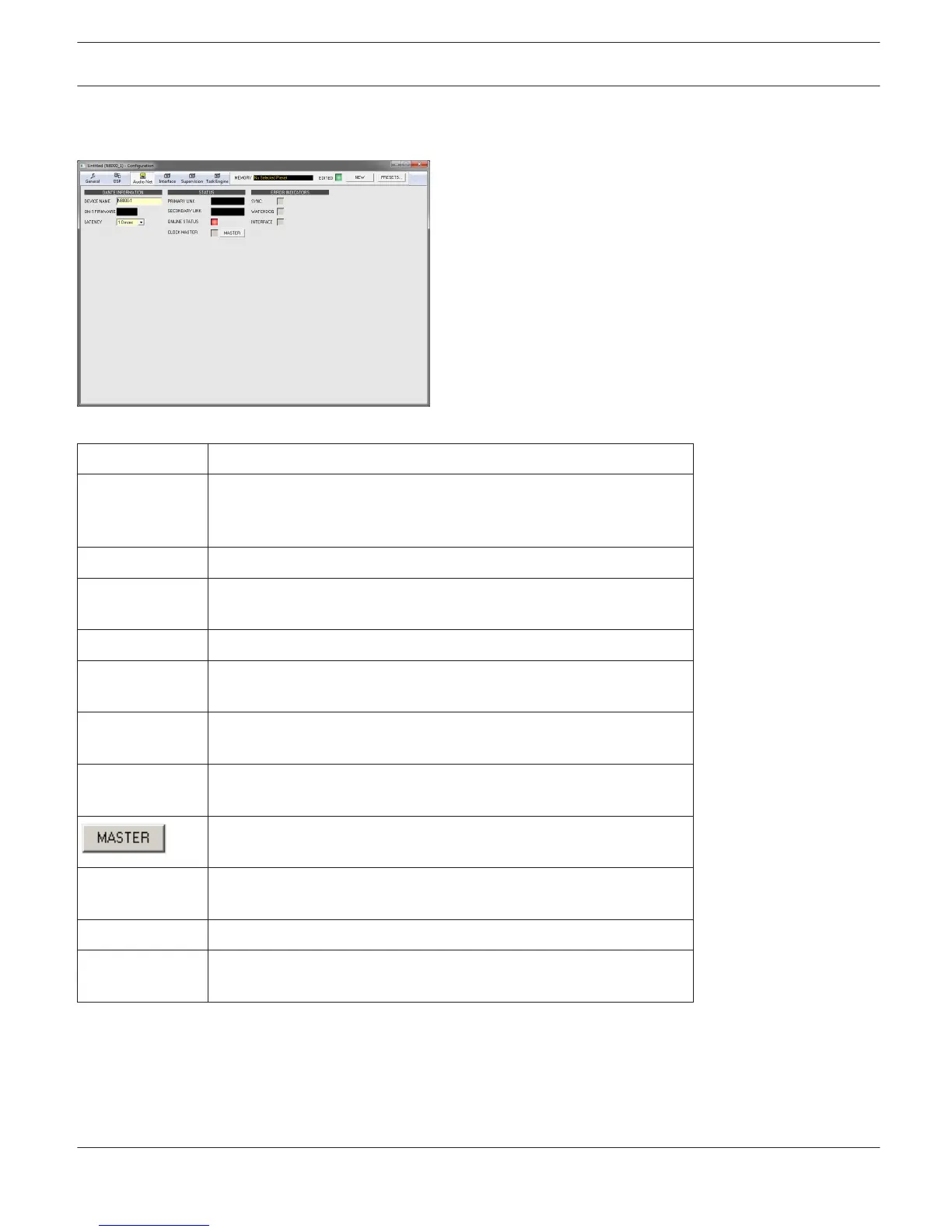

HINT: The Dante Configuration dialog (menu Tools > Dante Configuration) provides the possibility to configure the
Dante network.
Element
Description
DEVICE NAME Alphanumeric name of the N8000 within the Dante network (also
indicated in DANTE-Controller). Limitations: string must not start with
number, maximum of 32 characters.
OM-1 FIRMWARE Firmware version of the OM-1 module.
LATENCY Latency setting for the OM-1 module. The settings 0.5 ms, 1.0 ms or
5.0 ms are available.
PRIMARY LINK Indicates the Ethernet speed of the primary Ethernet interface.
SECONDARY
LINK
Indicates the Ethernet speed of the secondary Ethernet interface.
ONLINE STATUS Green, if the connection to the OMNEO or Dante network is OK;
otherwise red.
CLOCK MASTER Green, if the OM-1 is the clock master in the OMNEO or Dante
Network, grey, if another unit acts as clock master within the network.
Press the MASTER button if this OM-1 should be clock master in the
Dante network.
SYNC Synchronizing the DSP system to an OMNEO or Dante network is not
possible.
WATCHDOG The OM-1 is being reset because of a hardware or software failure.
INTERFACE An error has been detected in the internal connection between N8000
and OM-1.
Network View DM-1 / OM-1
Click on Tools -> DanteConfiguration to open the Network View dialog. This dialog allows the configuration of
transmitters and receivers in a Dante network. Left clicking the node in the matrix where the transmitter channel’s
column and the receiver channel’s line meet with the mouse does connect an output to an input. Again clicking onto
the corresponding node disconnects inputs and outputs.
IRIS-Net
DIGITAL MATRIX | en 327
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
