It is possible to manually change the condition of the control
outputs (Opener or Shutter). Depending on their according
configuration, control outputs are only switched as long as the
mouse button is pressed.
Clicking with the right mouse button on the corresponding symbol of
a control output provides opens the configuration dialog of this
control output. (not yet activated)

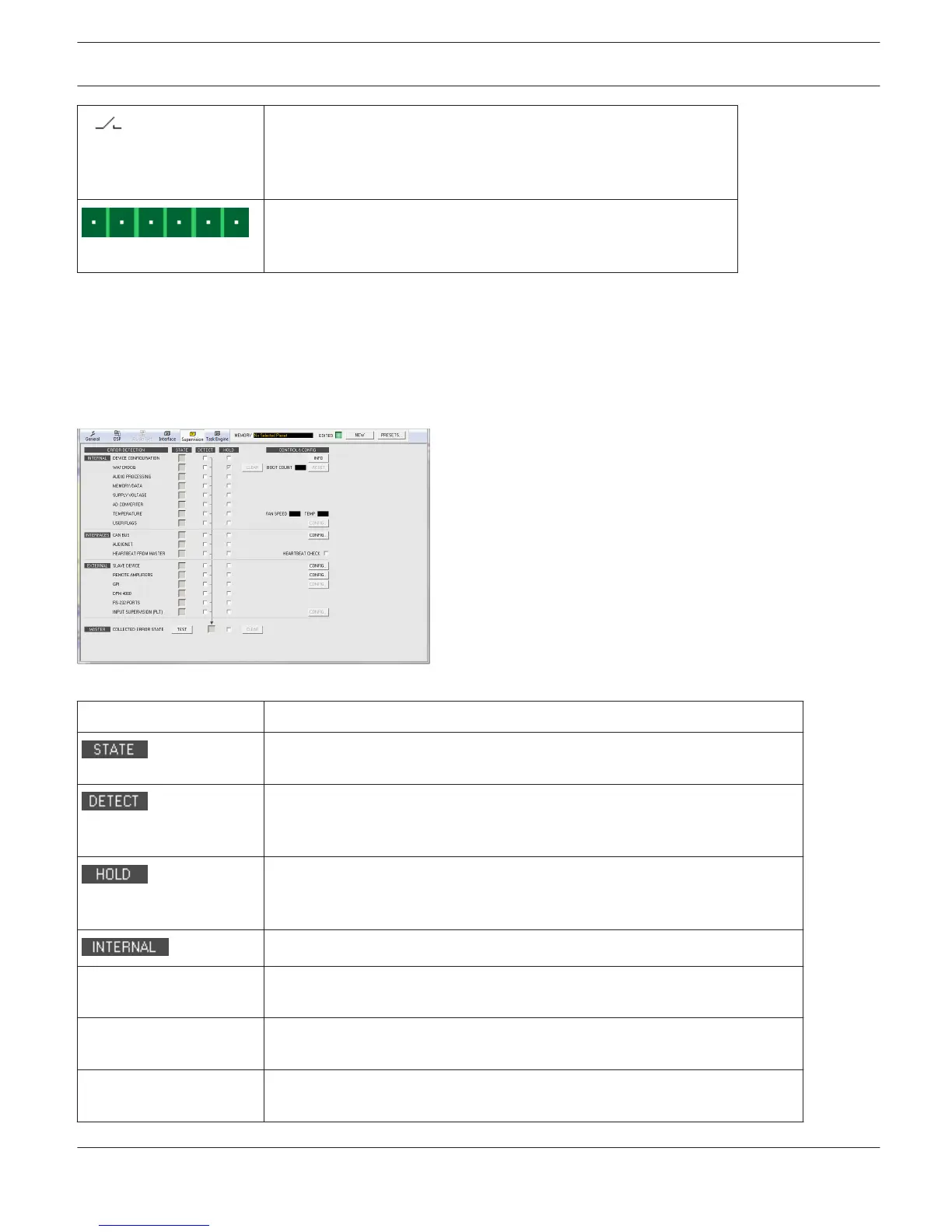

Supervision Dialog
The Supervision window shows the condition of the NetMax N8000. When on-line, all fault conditions are being
indicated. It is possible to select for each type of error whether it is displayed in a collected fault message, buffered
and/or included in the fault protocol. Further details can be set and are being displayed in the corresponding Config
and Info dialogs.
Element
Description
The current condition of each type of error gets indicated. Green means no
error, red indicates that an error has been detected.
At the occurrence of a type of error for which the checkbox DETECT is ticked,
the COLLECTED ERROR STATE flag is set at the same time. The FAULT-LED on
the front panel of the NetMax N8000 lights and the FAULT relay opens.
Detected types of errors for which the checkbox HOLD is ticked are stored.
Sporadic errors are indicated until the feature is reset using the CLEAR
button.
DEVICE CONFIGURATION Error in the hardware configuration of the N8000. Pressing the INFO button
reveals more detailed information concerning the error.
WATCHDOG The Watchdog of the N8000 was activated. Press the CLEAR button to clear
this error indication.
BOOT COUNT Indicates the number of resets caused by the watchdog. Press the RESET
button to reset the number to 0.
IRIS-Net DIGITAL MATRIX | en 330
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
