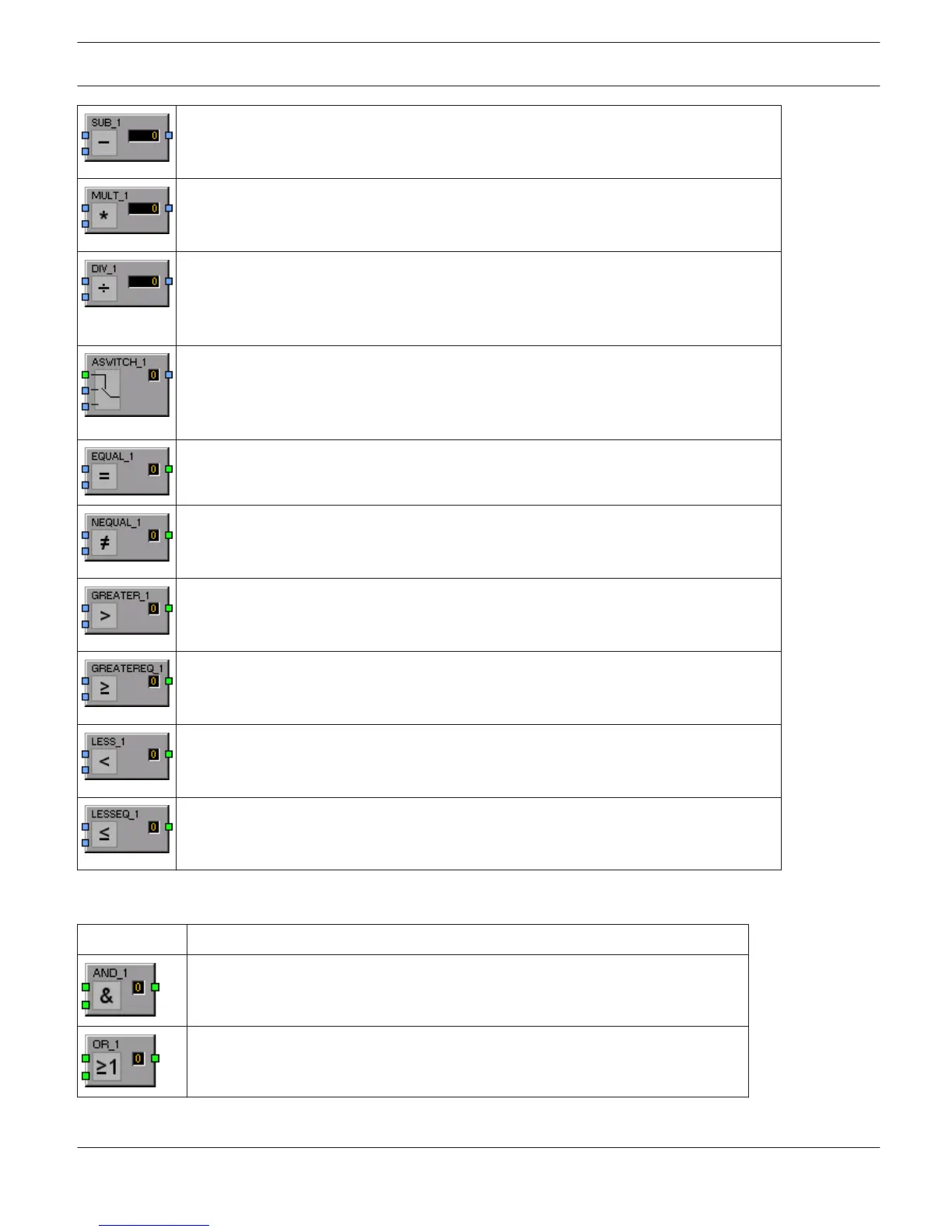

The Subtraction block subtracts the rational number of the lower input from the rational
number of the upper input. The output always presents the result of this arithmetic
operation.
The Multiplication block multiplies the rational number of the upper input with the
rational number of the lower input. The output always presents the result of this
arithmetic operation.
The Division block divides the rational number of the upper input by the rational number
of the lower input.
CAUTION: If the rational number "0" is present at the lower input, the rational
number "0" is always output, independent of the upper input's value.
The Switch block switches the rational number at the center or lower input through,
depending on the Boolean value at the upper input. If the Boolean value at the upper
input is false, the value of the center input appears at the output. If the Boolean value at
the upper input is true, the value of the lower input appears at the output.
The Equal block compares the rational numbers at the inputs. The Boolean value at the
output is only true when identical numbers are present at the inputs.
The Not Equal block compares the rational numbers at the inputs. The Boolean value at
the output is only true when the numbers that are present at the inputs differ from each
other.
The Greater block compares the rational numbers at the inputs. The Boolean value at
the output is only true when the rational number of the upper input is greater than the
rational number of the lower input.
The Greater Or Equal block compares the rational numbers at the inputs. The Boolean
value at the output is only true when the rational number of the upper input is greater
than or equal to the rational number of the lower input.
The Less block compares the rational numbers at the inputs. The Boolean value at the
output is only true when the rational number of the upper input is less than the rational
number of the lower input.
The Less Or Equal block compares the rational numbers at the inputs. The Boolean
value at the output is only true when the rational number of the upper input is less than
or equal to the rational number of the lower input.
LOGIC OPERATIONS
Element Description
The Boolean value at the output of the AND block is only true when all (wired)
inputs are true.
The Boolean value at the output of the OR block is only true when at least one
(wired) input is true.
