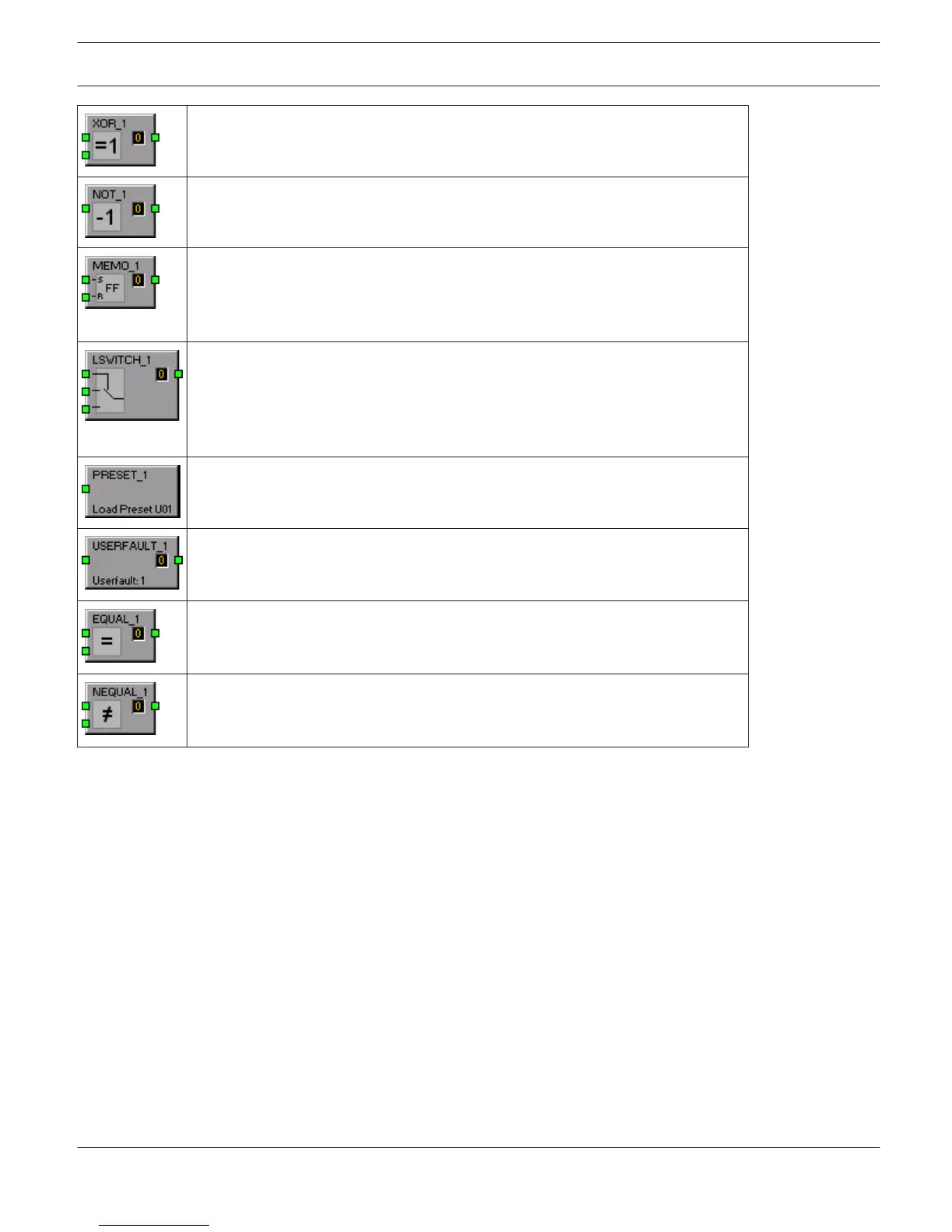

The Boolean value at the output of the XOR block is only true when the number of
true (wired) inputs is odd.
The NOT block negates the Boolean value at the input.
The Memo (Flip-flop) block represents a Bistable flip-flop. The Boolean value at
the output is set to true when the input S (Set) is true. The output stays true
when the input S is false. To reset the output to false the input R (Reset) must be
true.
The Switch block switches the Boolean value at the center or the lower input
through, depending on the Boolean value at the upper input. If the Boolean value
at the upper input is false, the value of the center input appears at the output. If
the Boolean value at the upper input is true, the value of the lower input appears
at the output.
The Load Preset block is used for loading the preset of a N8000 or P 64. The
preset is loaded when the input is true.
The User Fault block is used for indicating a Boolean value by a User Fault. The
User Fault is active when the input is true. The output always presents the state
of the User Fault.
The Equal block compares the Boolean values at the inputs. The Boolean value at
the output is only true when the values at the inputs are identical (i.e. both inputs
are true or both inputs are false).
The Not Equal block compares the Boolean values at the inputs. The Boolean
value at the output is only true when the values at the inputs are different from
each other (i.e. one input is true while the other input is false).
IRIS-Net DIGITAL MATRIX | en 336
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
