ADVANCED
Element
Description

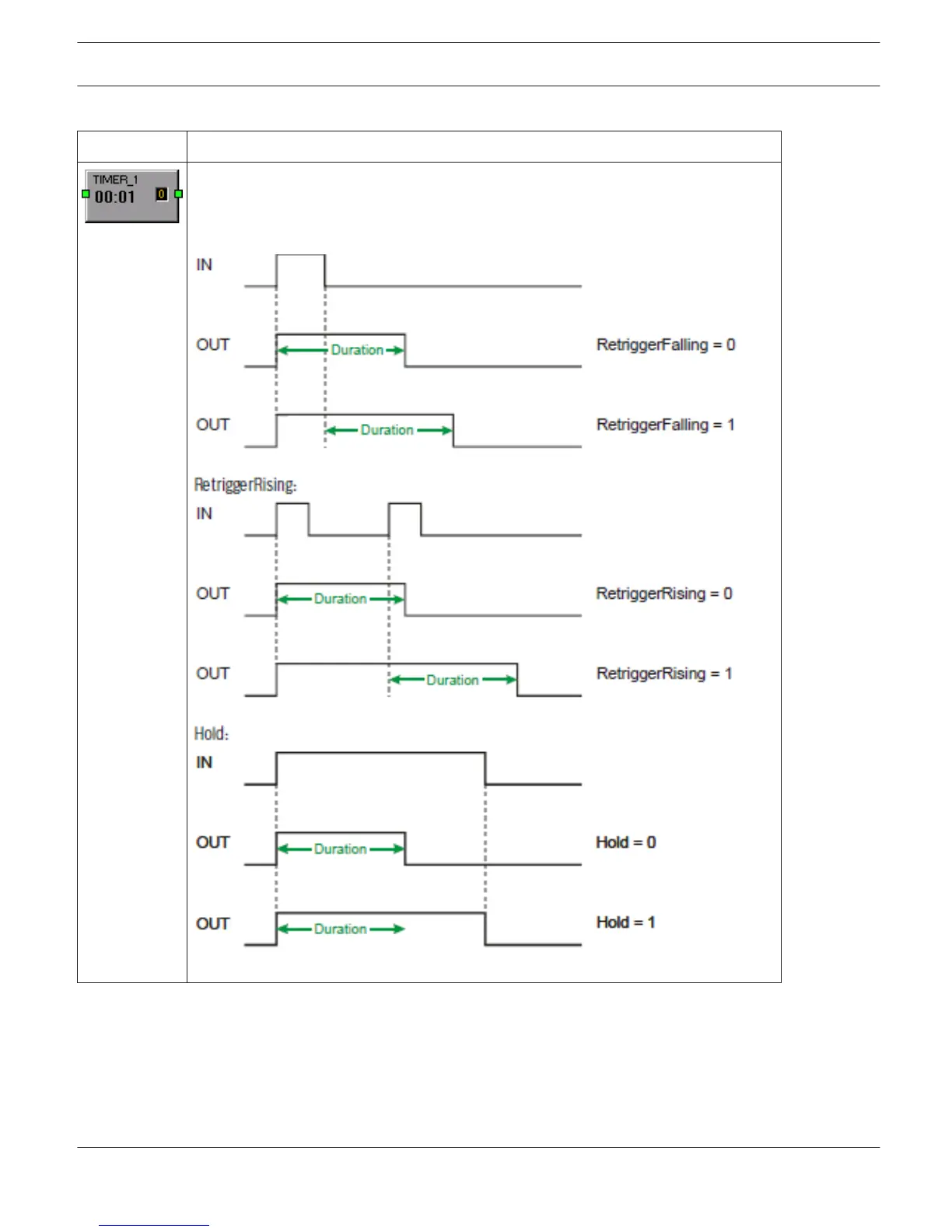

The Timer block sets the Boolean value „State“ at the output to true for the time
„Duration“, if the Boolean value at the input changes from false to true. Following
charts illustrate the functionality of the available block parameters:
Retrigger Falling:
IRIS-Net
DIGITAL MATRIX | en
337
Bosch Security Systems B.V.
User Manual
2017.05 | 3.20 | F.01U.119.956
336
