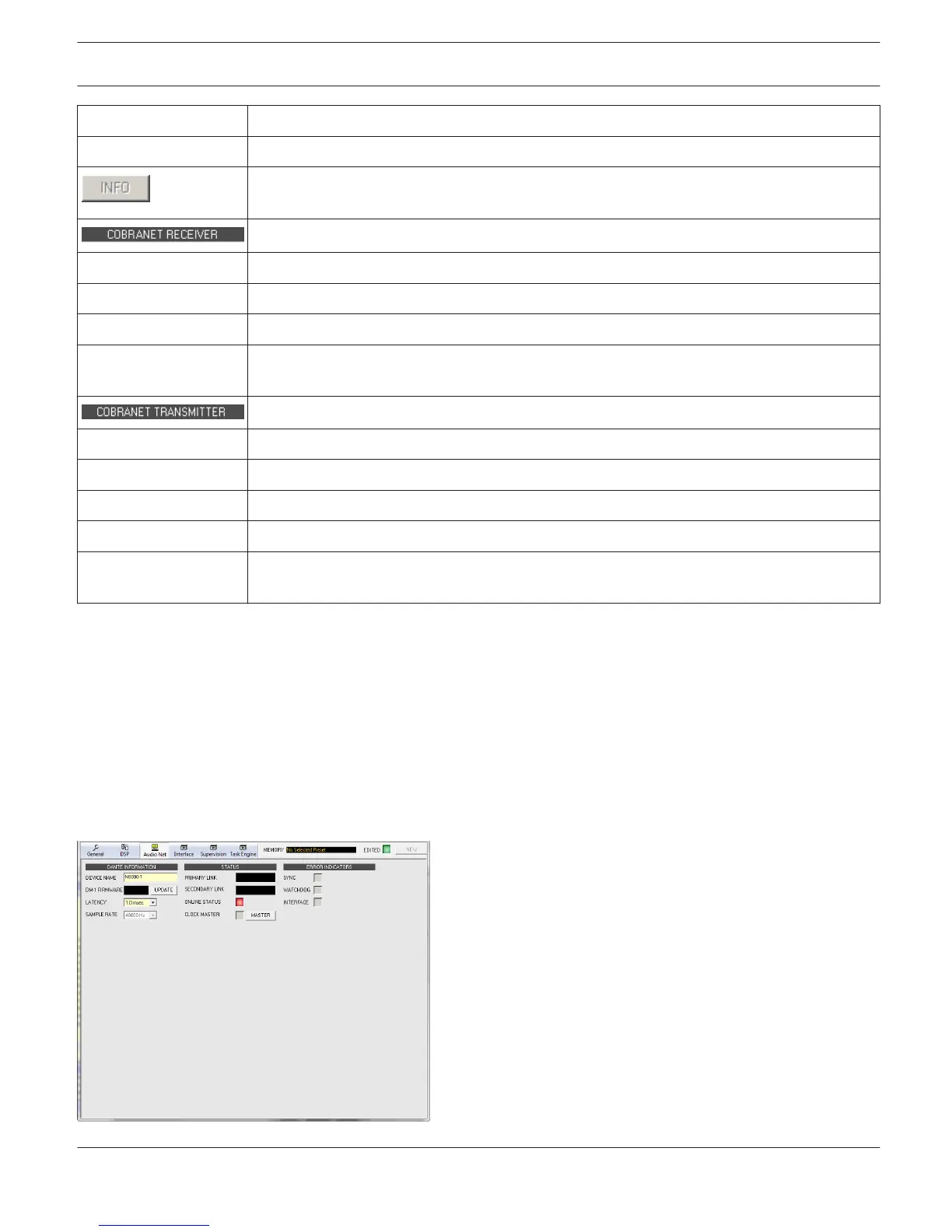

FATAL ERROR A fatal error has been detected within the CM-1.
ERROR DISPLAY Displays the corresponding error code for detected faults. 0 = no fault.
If an error code is being displayed, this button allows recalling information about the
detected error.
BUNDLE Number of the received bundle.
RECEPTION Indicates whether or not a bundle is currently received.
CHn Displays the corresponding Resolutions of all channels of the received bundle.
LOAD A bundle’s utilization ratio in percent. The load depends on the number and resolution of
the channels transmitted in a bundle.
BUNDLE Number of the transmitted bundle.
RECEPTION Indicates whether or not another unit receives the transmitted bundle.
CHANNELS Number of channels transmitted in a bundle.
CHn Displays the corresponding Resolutions of all channels of the transmitted bundle.
LOAD A bundle’s utilization ratio in percent. The load depends on the number and resolution of
the channels transmitted in a bundle.
DM-1
This window provides detailed information about a DM-1 Data Interface module installed in the P 64. The DSP blocks
Dante Inputs and Dante Outputs (see DANTE INPUTS, page 386) provide the possibility to select and configure Dante
channels.
HINT: The DanteConfiguration dialog (menu Tools > DanteConfiguration) provides the possibility to configure the
Dante network.
IRIS-Net
DIGITAL MATRIX | en 349
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
