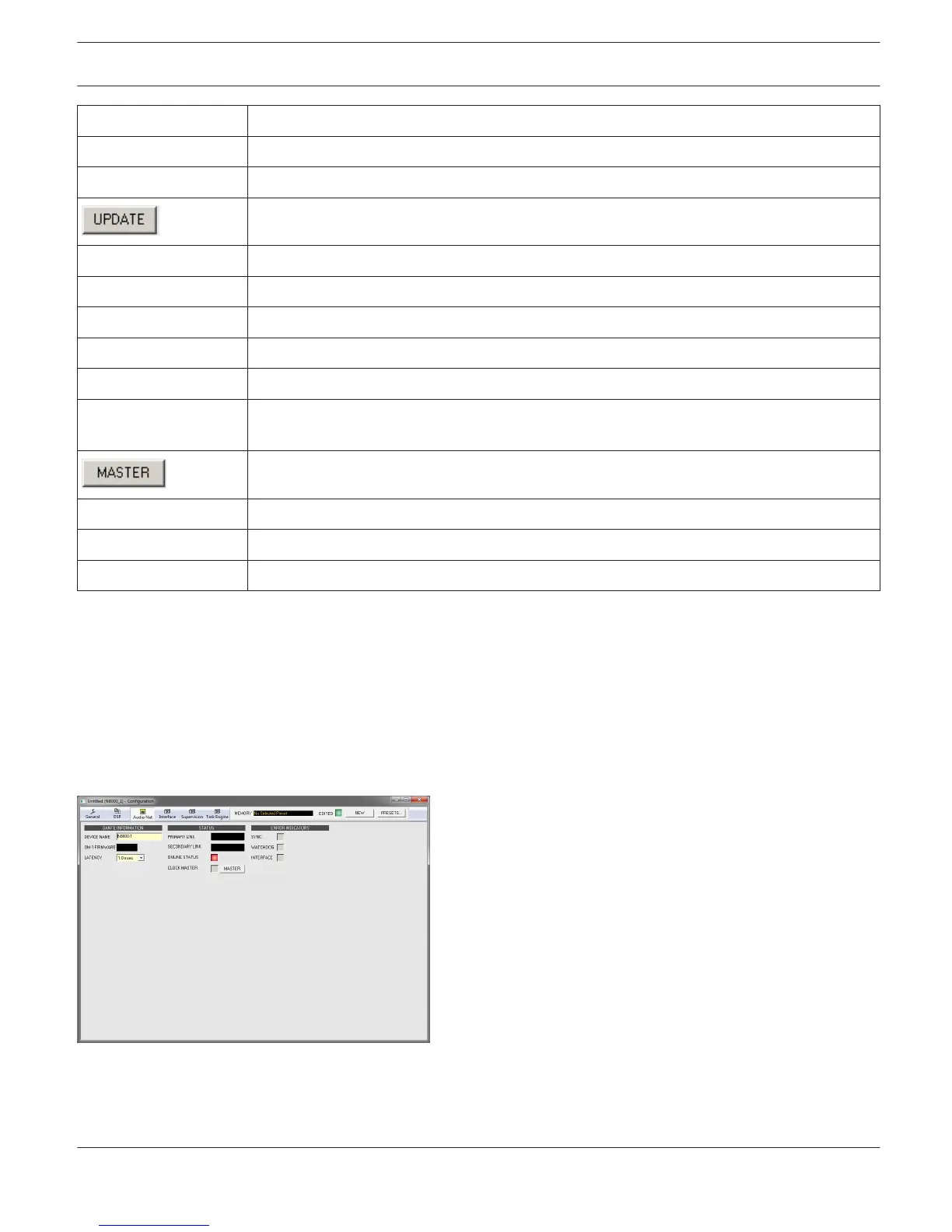

Element Description
DEVICE NAME Alphanumeric name of the P 64 within the Dante network.
DM-1 FIRMWARE Firmware version of the DM-1 module.
The UPDATE button opens the web interface of the module.
LATENCY Latency setting for the DM-1 module. The settings 0.5 ms, 1.0 ms or 5.0 ms are available.
SAMPLE RATE Sample rate of all DM-1 modules. Preset to 48 kHz.
PRIMARY LINK Indicates the Ethernet speed of the primary Ethernet interface.
SECONDARY LINK Indicates the Ethernet speed of the secondary Ethernet interface.
ONLINE STATUS Green, if the connection to the Dante network is OK; otherwise red;
CLOCK MASTER Green, if the DM-1 is the clock master in the Dante Network, grey, if another unit acts as
clock master within the Dante network.
Press the MASTER button if this DM-1 should be clock master in the Dante network.
SYNC Synchronizing the DSP system to Dante network is not possible.
WATCHDOG The DM-1 is being reset because of a hardware or software failure.
INTERFACE An error has been detected in the internal connection between P 64 and DM-1.
OM-1
This window provides detailed information about an OM-1 OMNEO Interface module installed in the P 64. The DSP
blocks OMNEO Inputs and OMNEO Outputs (see DANTE INPUTS, page 386) provide the possibility to select and
configure OMNEO or Dante channels.
HINT: The Dante Configuration dialog (menu Tools > Dante Configuration) provides the possibility to configure the
Dante network.
IRIS-Net
DIGITAL MATRIX | en 350
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
