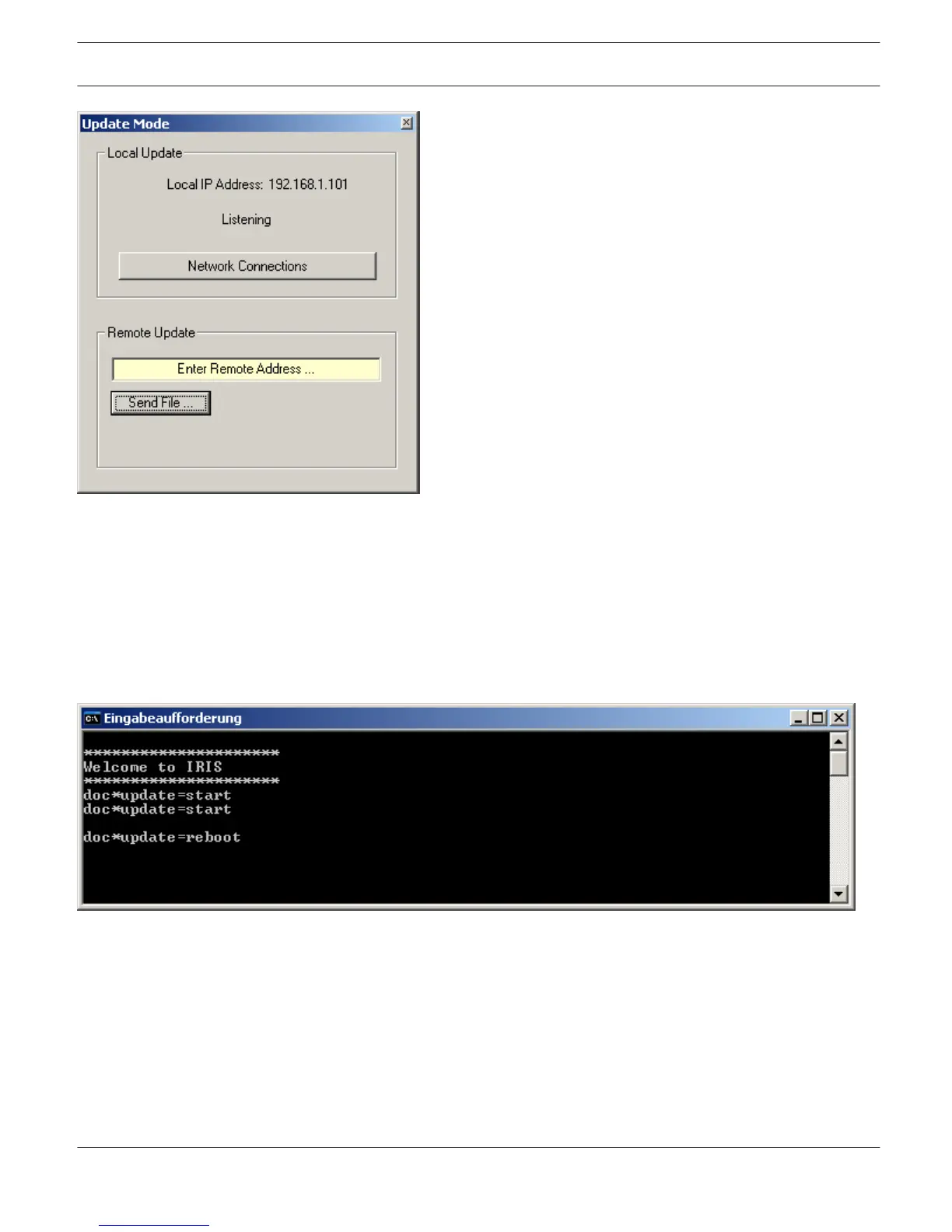

8. Type 192.168.1.101 in the Enter Remote Address.. input field and tap the return button.
9. Click on Send File...button in the Update Mode dialog.
The window Open appears.
10. Select the file to be transferred in the window Open and click on the Open button. The file types Project Files
(*.ds) and Application Archives (*.zip) can be selected.
The file is now sent to the TPI-8/TPI-12. The successful transmission is indicated by message “success” in the
Update Mode dialog at the PC and also the TPI-8/TPI-12.
11. Enter doc*update=reboot and tap the return button.
The TPI-8/TPI-12 reboots and uses the new IRIS-Net project file or IRIS-Net application.
IRIS-Net TOUCH PANELS | en 548
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
