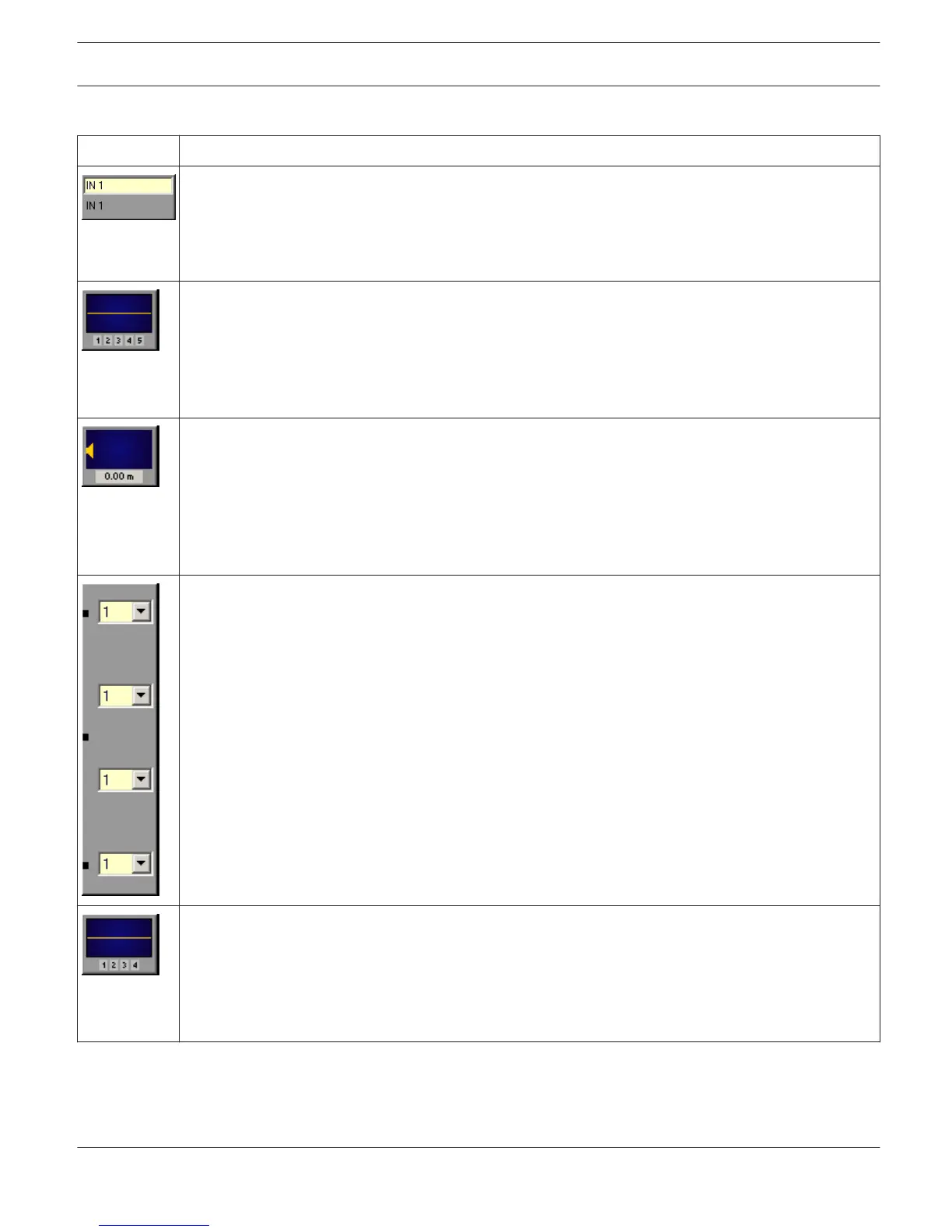

Function Blocks
Element Description
Input Block:
The text field allows specifying a name for the corresponding input channel.
A click with the right mouse button onto IN 1 or IN 2 opens the Copy & Paste menu, which allows
copying all parameters of the corresponding input channel (Master EQ, Master Delay) to any other
input channel within the same project.
Master EQ Block:
The Master EQ block displays the 5 Master EQs of the corresponding input channel. The 5 LEDs
indicate which EQ-bands are being used while the graph shows the frequency response of the Master
EQ block. A single click with the left mouse button onto this block opens the MASTER EQ page.
Clicking with the right mouse button opens the Copy & Paste menu, which allows copying all
parameters of the corresponding EQ block to any other EQ block within the same project.
Master Delay Block:
This displays the Master Delay of the input channels. The corresponding LED signals whether a delay
has been programmed or not. The delay-value is displayed together with the measurement unit next to
the LED. The graph shows the approximate usage of delay memory capacity. A single click with the left
mouse button onto this block opens the MASTER DELAY page. Clicking with the right mouse button
opens the Copy & Paste menu, which allows copying all parameters of the corresponding Master Delay
block to any other Master Delay block within the same project.
Routing Block:
Here you can assign the output channel routing. The selection can be performed using the four
combination boxes. A click with the right mouse but- ton onto routing block opens the Copy & Paste
menu of all DSP settings, which allows copying all DSP parameters of an sound system processor to
any other sound system processor within the same project.
Channel EQ Block:
The Channel EQ block displays the 4 Channel EQs of the corresponding output channel. The 4 LEDs
indicate which EQ-bands are being used while the graph shows the frequency response of the Channel
EQ block. A single click with the left mouse button onto this block opens the CHANNEL EQ page.
Clicking with the right mouse button opens the Copy & Paste menu, which allows copying all
parameters of the corresponding EQ block to any other EQ block within the same project.
IRIS-Net DIGITAL SOUND PROCESSOR | en 555
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
