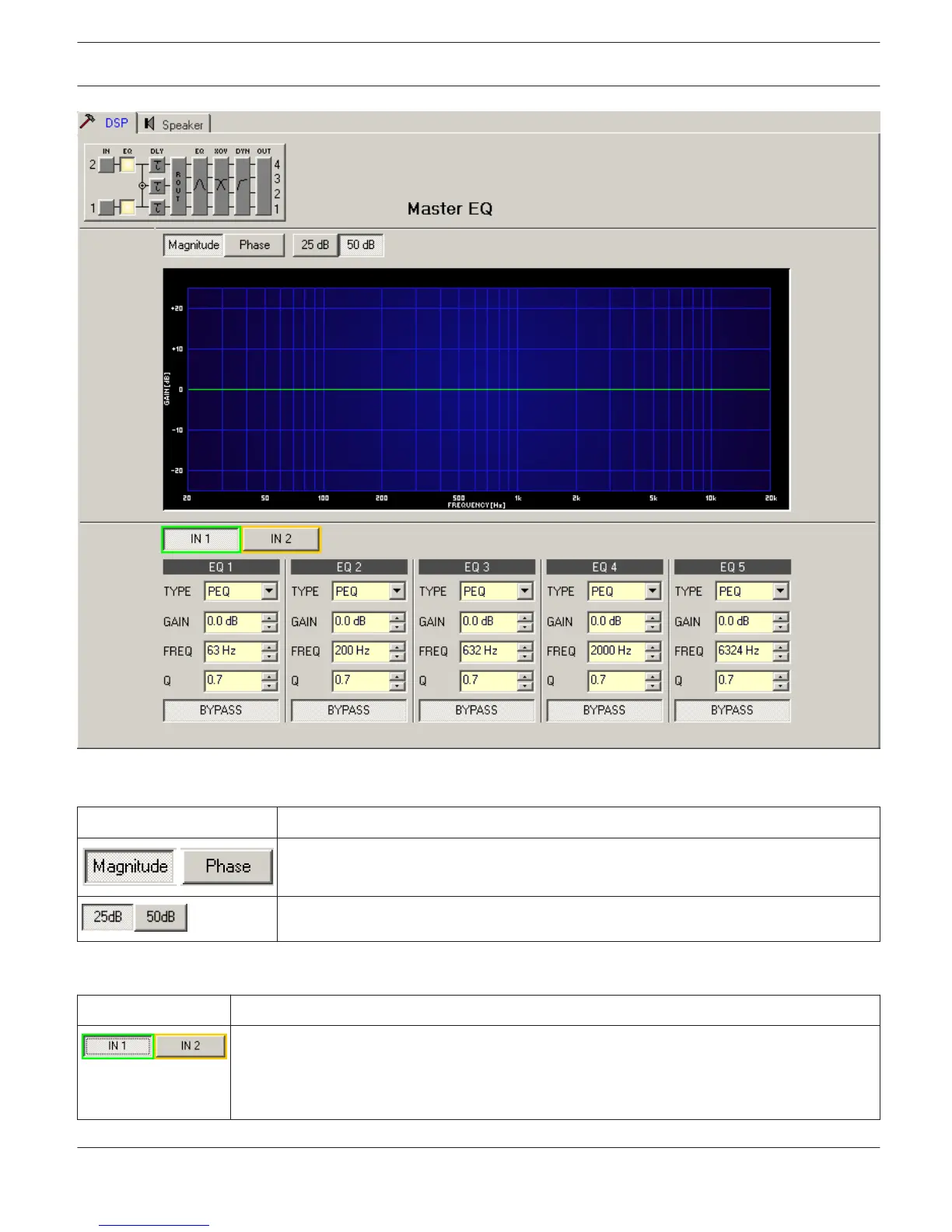

Graphics Display Indication
Element Description
Switches between frequency (magnitude) and phase response (phase) indication
Switch for selecting dB-axis scaling of 25 dB (± 12.5 dB) or 50 dB (± 25 dB)
Channel Selection
Element
Description
Switch for selecting input 1 (IN 1) or input 2 (IN 2) for filter editing.
A click with the right mouse button opens the ”Copy & Paste” menu, which allows convenient
copying all EQs of the corresponding out- put to any other EQ-filter bank within the same
project.
