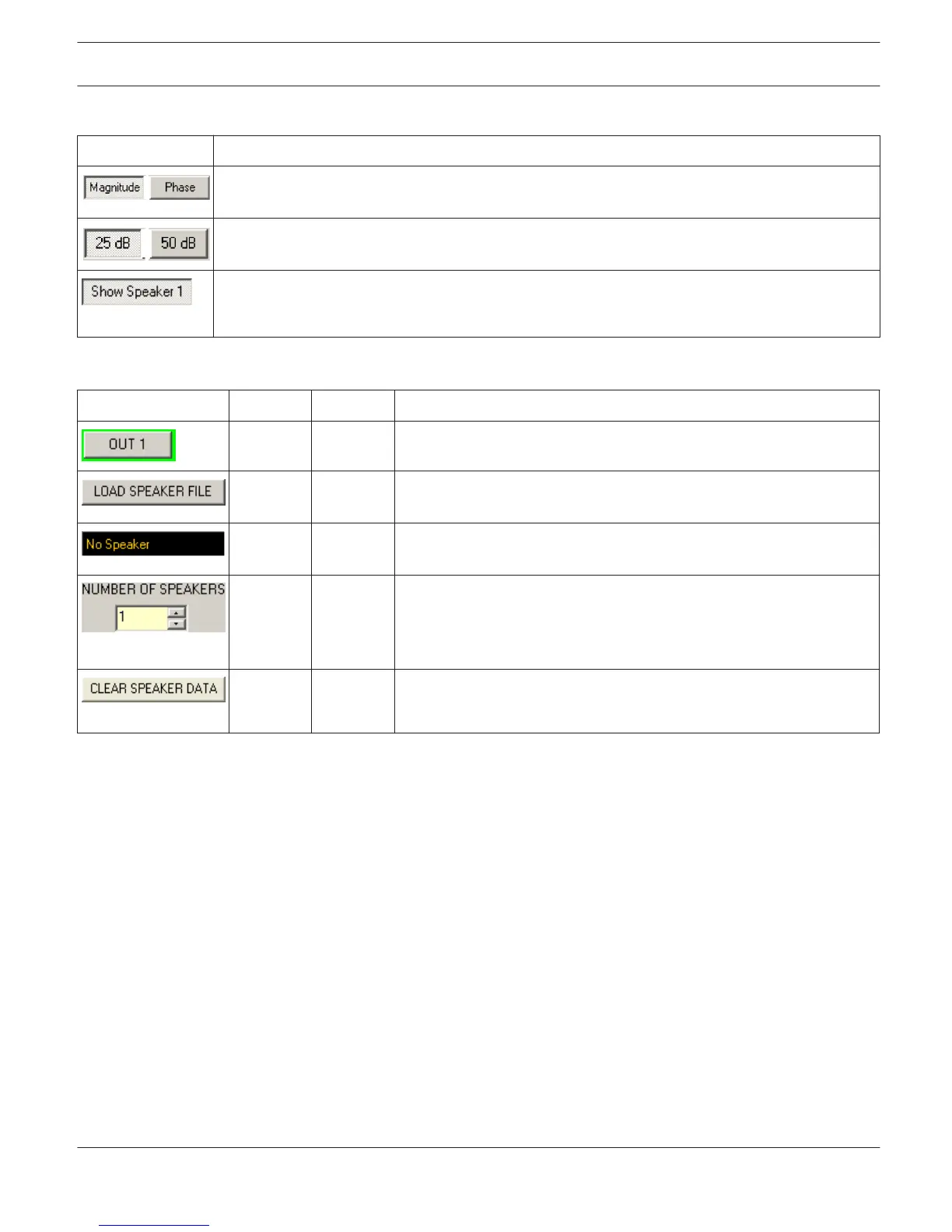

Indication on the Graphic Display
Element Description
Switch for toggling between frequency response (magnitude) and phase response (phase)
display
Switch for adjusting the scale of the amplifier axis to 25 dB (± 12.5 dB) or to 50 dB (± 25 dB)
Switching the display of the corresponding speaker data for an sound system processor channel
on/off is performed using the ”Show Speaker 1” to ”Show Speaker 4” switches.
Channel Parameters
Element
Default Range Description
Channel name.
Clicking the button LOAD SPEAKER FILE opens a dialog that allows
the selection of the desired speaker file.
The name of the loaded loudspeaker model is shown in the black-
shaded field.
1 1...8 The NUMBER OF SPEAKERS parameter allows the user to specify the
number of speaker systems connected to the corresponding channel.
Doubling the number of speakers results in a level increase of 6 dB
within the selected channel. Setting an amount from 1 to 8 is possible.
Clicking the CLEAR SPEAKER DATA button clears the previously
loaded measured speaker data of the selected channel.
IRIS-Net
DIGITAL SOUND PROCESSOR | en 602
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
