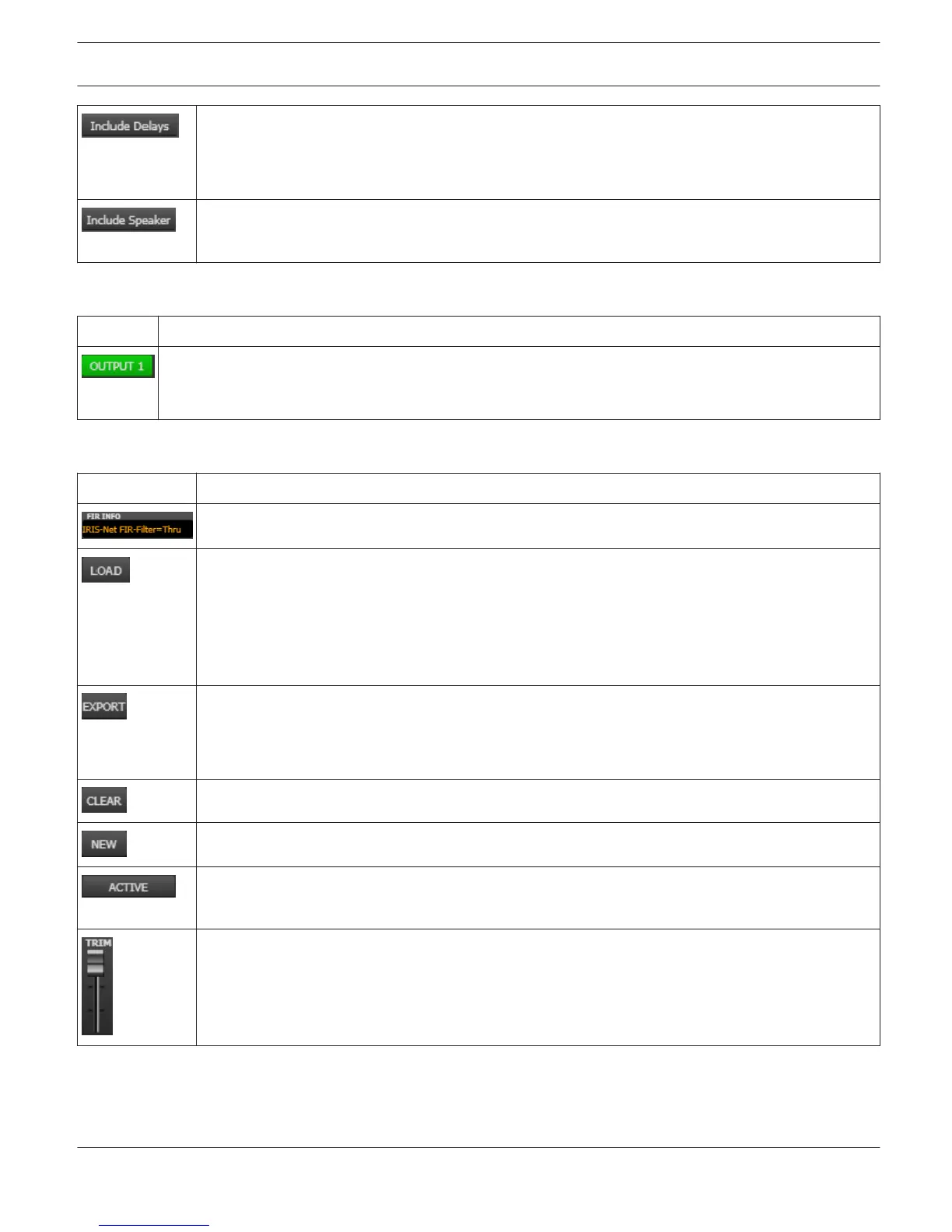

Switch for including programmed delays in the frequency or phase response indication. The delays
mainly affect phase response indication. Indicating the sound system processor channels’ summed
signals reveals very clearly the effect that the delays have on the frequency res- ponse, e.g. as notch
filter effect.
Switch for additionally indicating measured speaker transfer functions. For this function to be
effective you first have to load speaker data in the ”Speaker” tab.
Channel Selection
Element Description
Switch for selecting output 1, 2, 3, 4. 5 or output 6 for filter editing.
A click with the right mouse button opens the ”Copy & Paste” menu, which allows convenient copying of
all FIR filter settings of the corresponding output to any other FIR filter within the same project.
Channel Parameters
Element
Description
Description of the FIR filter currently in use.
After clicking onto LOAD the "Open File..." dialog box appears. Enter the correct path of the
directory in which the desired file is located and select the desired FIR file to be opened. This loads
and afterwards displays all FIR filter parameters that are stored within that file.
CAUTION: The loaded FIR filter file becomes instantly audible when in on-line mode. Be sure to
select the desired FIR file with the correct set of parameters. In the worst case, this could lead
to severe damage to the connected loudspeaker cabinets due to improper signal processing!
After clicking on EXPORT FIR a "Save File..." dialog box appears. Enter the correct path of the
directory that you want to save the data in. Enter a file name (without extension). Click on the SAVE
button to store the FIR filter parameters together with the corresponding file name. ".gkf" is
automatically added as file extension.
Clears the current FIR filter settings. A Default-FIR-Filter (Thru) is activated instead.
Clicking on the NEW button opens the Filter Design dialog.
Press the ACTIVE button to deactivate the filter (Bypass), which allows for quick A / B-evaluation of
the actual effect that the filter has on the sound.
Adjusts the gain of the signal between -30 dB and +6 dB.
IRIS-Net DIGITAL SOUND PROCESSOR | en 637
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
