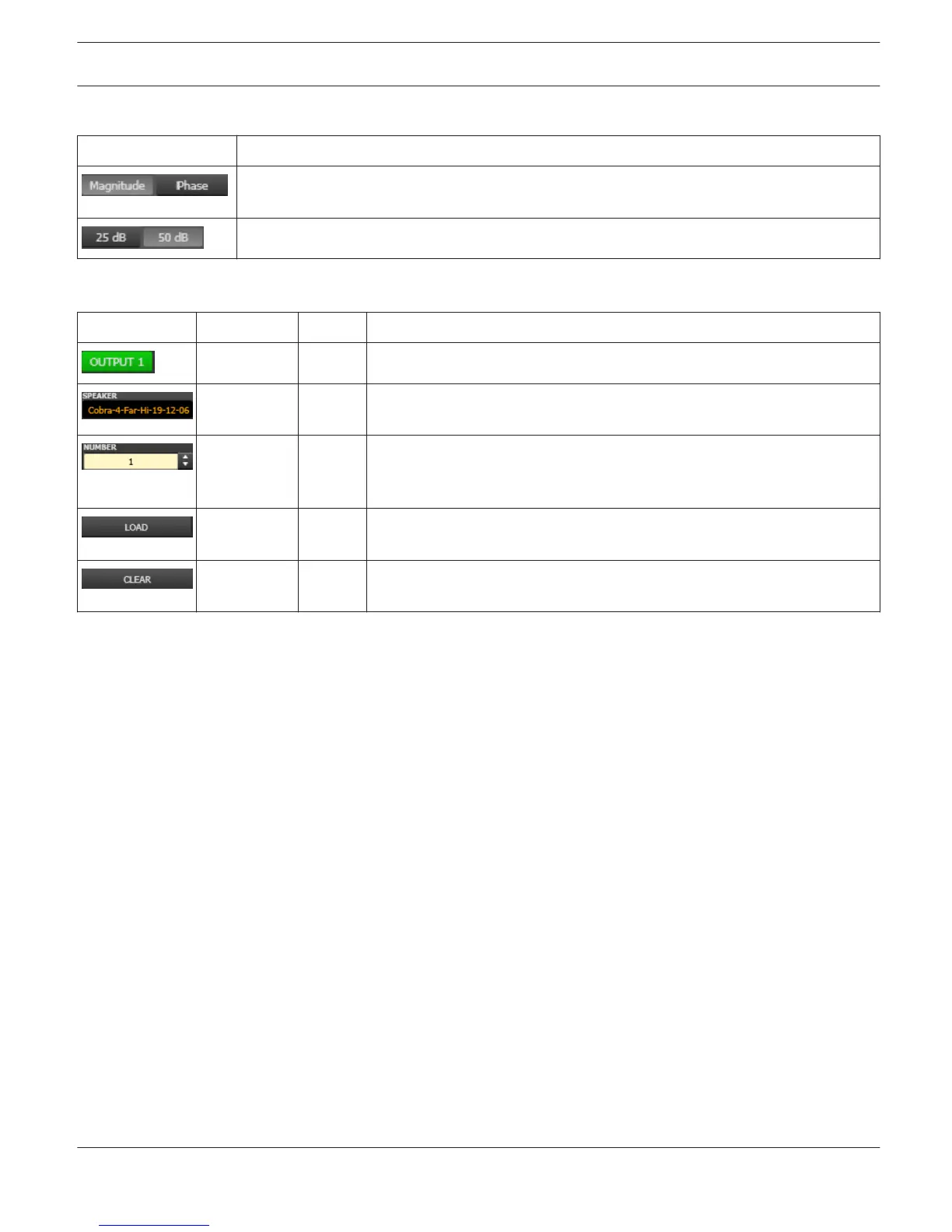

Indication on the Graphic Display
Element Description
Switch for toggling between frequency response (magnitude) and phase response (phase)
display
Switch for adjusting the scale of the dB-axis to 25 dB (± 12.5 dB) or to 50 dB (± 25 dB)
Channel Parameters
Element Default Range Description
Switch for selecting output 1, 2, 3, 4. 5 or output 6 for limiter editing.
The name of the loaded loudspeaker model is shown in the black-shaded
field.
1 1 to 10 The NUMBER parameter allows the user to specify the number of speaker
systems connected to the corresponding channel. Doubling the number of
speakers results in a level increase of 6 dB within the selected channel.
Clicking the LOAD button opens a dialog that allows the selection of the
desired speaker file.
Clicking the CLEAR button clears the previously loaded measured speaker
data of the selected channel.
Supervision & Test
The Supervision window allows configuration of the test and pilot tone generator, additionally the status of the pilot
tone detection is indicated.
IRIS-Net DIGITAL SOUND PROCESSOR | en 645
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
