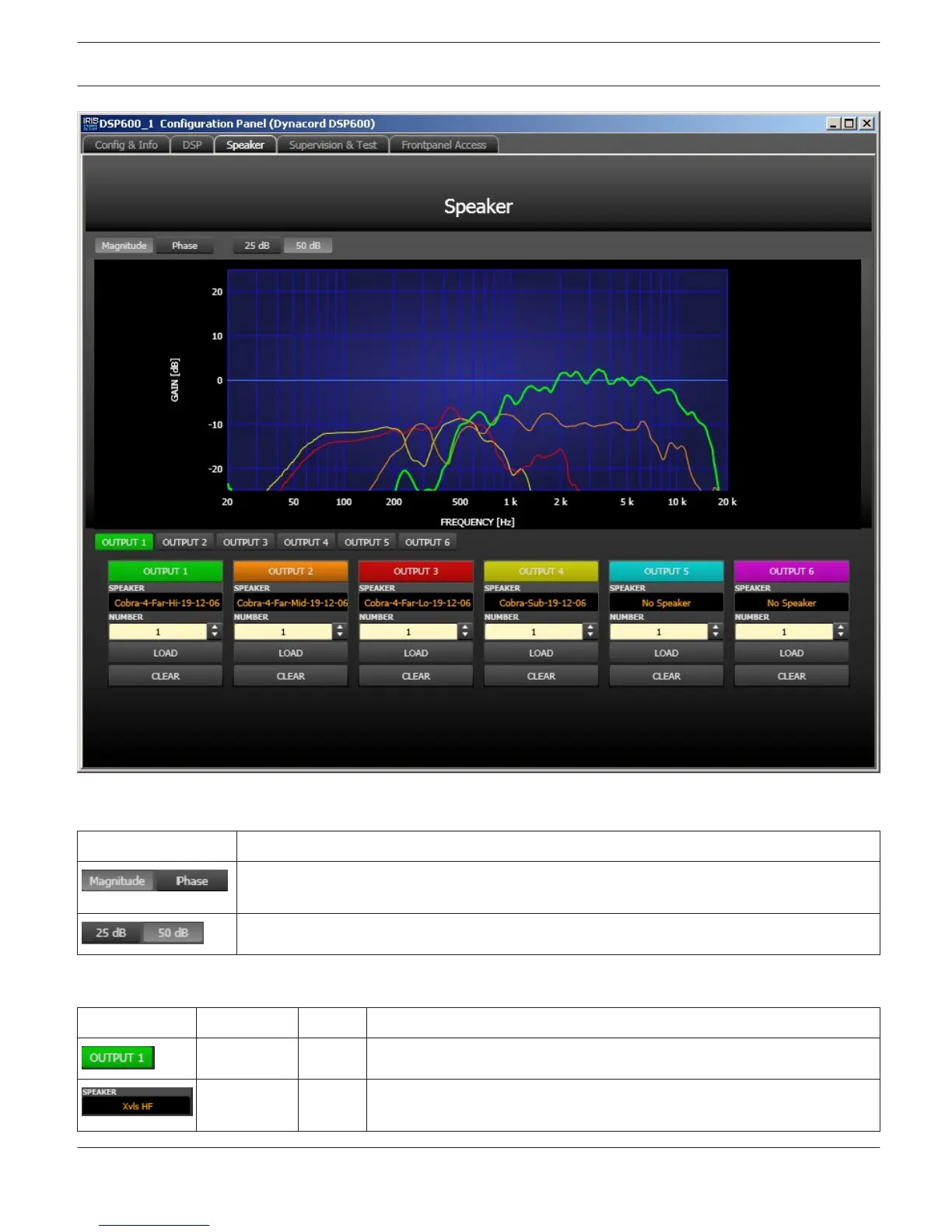

Indication on the Graphic Display
Element Description
Switch for toggling between frequency response (magnitude) and phase response (phase)
display
Switch for adjusting the scale of the dB-axis to 25 dB (± 12.5 dB) or to 50 dB (± 25 dB)
Channel Parameters
Element Default Range Description
Switch for selecting output 1, 2, 3, 4. 5 or output 6 for limiter editing.
The name of the loaded loudspeaker model is shown in the black-shaded
field.
