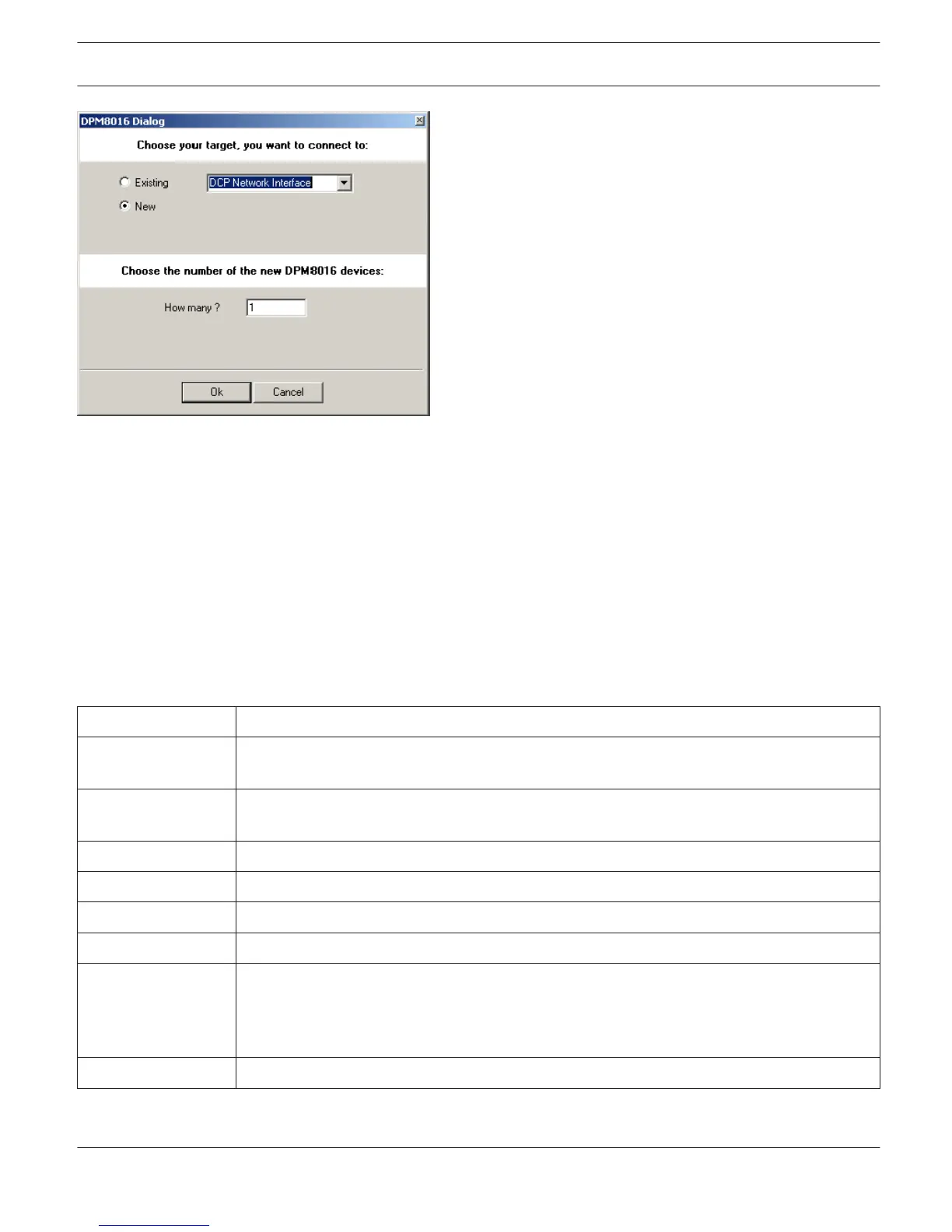

Enter the required number of devices and select a communication interface. Click on the OK button to accept these
settings. The specified number of devices will be created and displayed in the worksheet. Selected devices can be
dragged around and repositioned at will. To select a device either click and drag the mouse to draw a rectangle around
it or hold down the 'ctrl' key and click on the device. In either case a successfully selected device is shown with a red
border around it.
Double clicking on a device icon opens the configuration dialog window. Double clicking on a device for the first time
will open the General dialog box. Here, you can specify initial settings that are necessary for further configuration and
communication. Additional configuration windows can be navigated to by clicking on the icons at the top of the
window. However, as a basic rule, IRIS-Net will remember which window was used last and reopen to this window next
time you double click on the device icon.
The following table lists all available device dialogs with a short description for each. For more detailed information,
please refer to the appropriate chapters.
Dialog
Description
General This window allows hardware settings to be configured, e.g. input/output module slots,
network settings, device name, system time and firmware version.
Supervision This window provides an overview of the operational state and current fault status of the
device.
DSP This window allows editing the DSP configuration of the device.
Task Engine This window lets you configure the Task Engine of the device.
Pagings This window lets you configure dynamic add/sub zones (VAR pattern).
User Mix This window lets you configure background music.
Interface From this window the DPM 8016 CAN bus, RS-232 ports and GPIO control port interfaces can
all be configured.
HINT: Ethernet interface settings are explained under General dialog in the paragraph
Network Settings.
Power Management From this window the power management of the device can be configured.
IRIS-Net PROMATRIX 8000 | en 723
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
