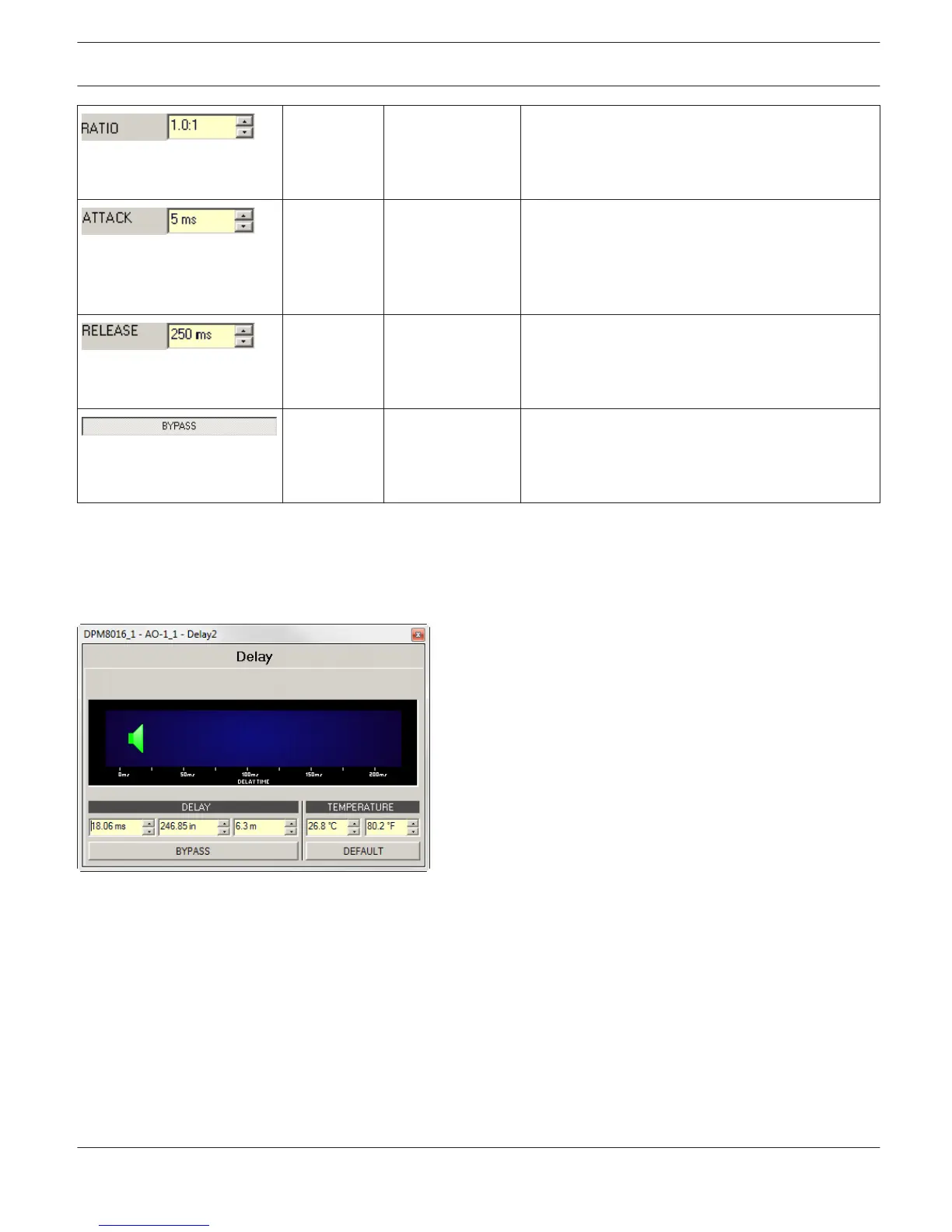

1.0:1 1.0:1 to 8.0:1 RATIO defines the compression rate, i.e. the degree
of compression above the threshold level. For
example, a rate of 4.0 : 1 represents a signal
reduction by factor 4.
5 ms 0 to 99 ms ATTACK defines the velocity, at which the
compressor sets in. A short attack rate means that
even short signal peaks are efficiently com-
pressed. Longer attack rate leave signal peaks
untouched.
250 ms 0 to 999 ms RELEASE defines the control time interval the
compressor takes to return to an uncompressed
signal level, after the signal dropped below the set
threshold.
BYPASS activates (not engaged) or deactivates the
Compressor (engaged), which allows for quick A / B
comparison between the com- pressed and
uncompressed audio signal.
DELAY
The Delay block allows to delay the audio signal of AO-1 output modules by up to 220 ms.
IRIS-Net
PROMATRIX 8000 | en 738
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
