OUTPUT

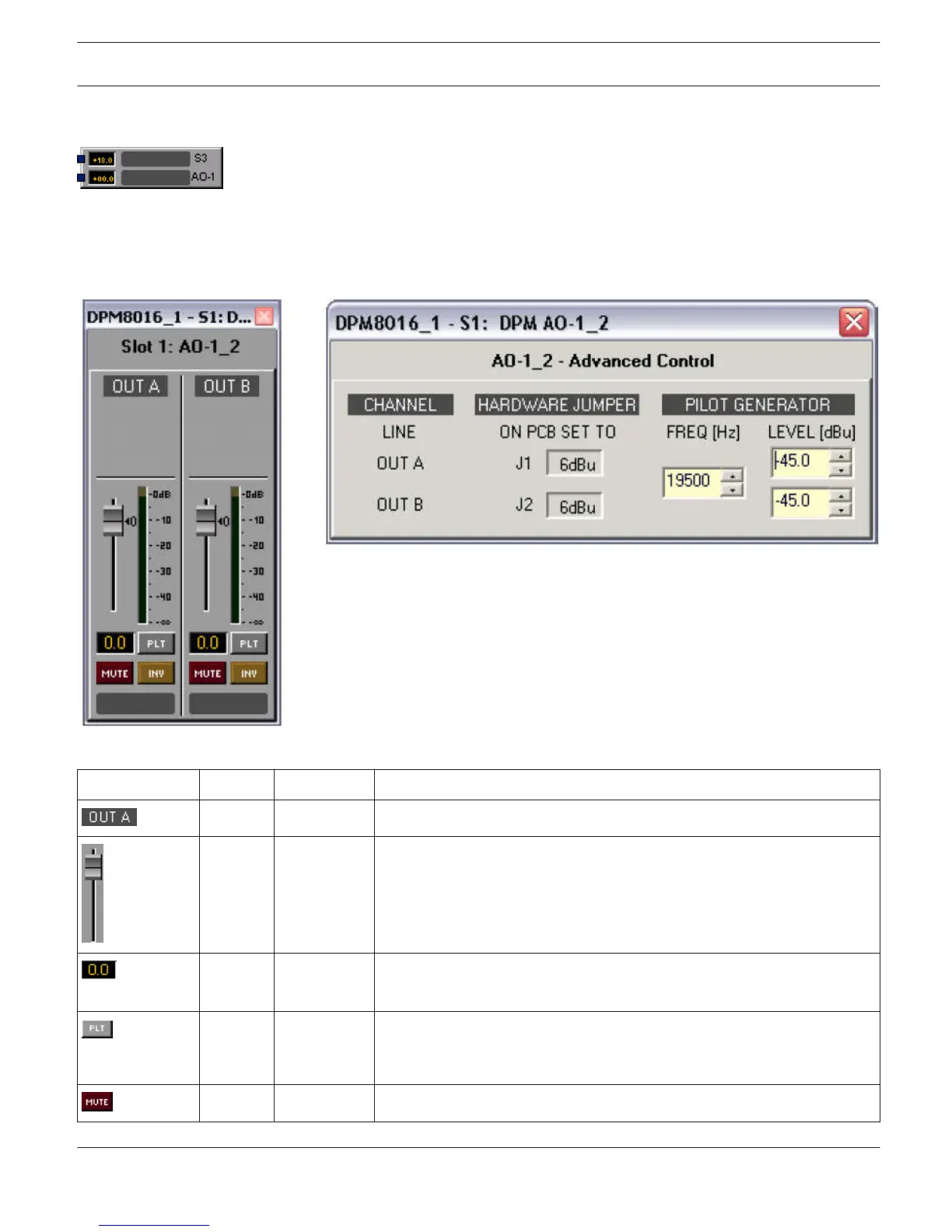

The Output block provides access to the outputs of an AO-1 Analog Output Module. The slot
number, name and gain values of the out channels are indicated in the block. Double click the block to open the
Output dialog. Select the entry Advanced Control from the context menu of the block to open the Advanced Control
dialog.
Element Default Range Description
Permanent channel labeling.
0.0 dB -80 to +18.0
dB
Fader for setting the output level.
0.0 dB -80 to +18.0
dB
The fader display shows the numerical value of the current fader setting
and additionally provides the possibility for entering a desired value.
The PLT button activates (engaged) or deactivates (not engaged) the
pilot tone generator. The PLT button appears only when the pilot tone
generator has previously been activated in the Advanced Control window.
MUTE button for muting the output signal.
IRIS-Net PROMATRIX 8000 | en 743
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
