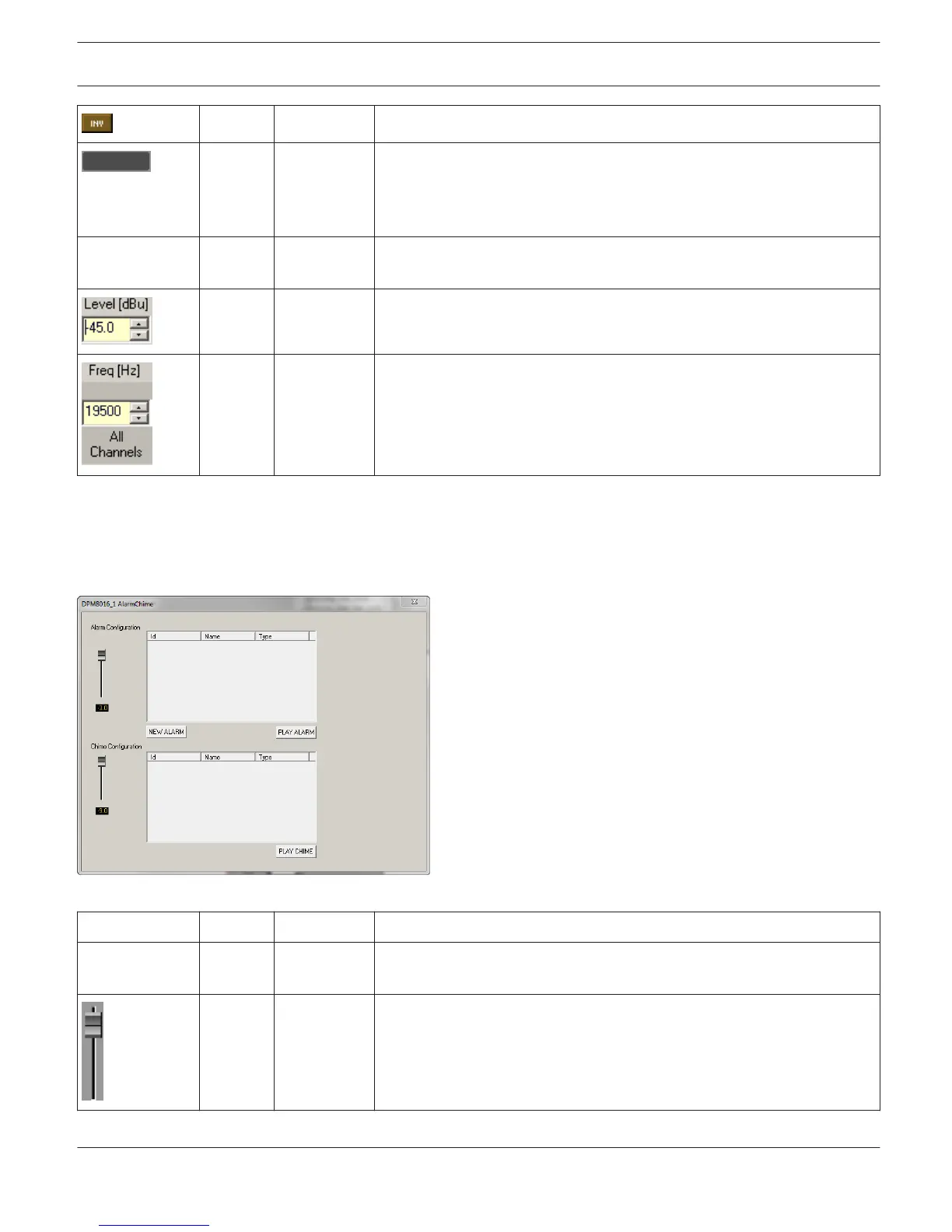

INV button for inverting the output signal’s polarity.
Text field for labeling an output channel, e.g. giving it an application
specific name.
CAUTION: Using * (asterisk) and/or = (equal) signs in a name is not
permissible.
HARDWAREJUM
PER
6 dBu or 18
dBu
Indicates the jumper setting of the AO-1 module in online mode.
-45.0 dBu -60 to 0 dBu This field allows setting the level of the pilot tone signal.
19500 Hz 20 to 20000
Hz
This field allows setting the frequency of the pilot tone signal. The set
frequency applies to all outputs, for which the pilot tone signal has been
activated.
ALARM CHIME
The Alarm Chime dialog allows the configuration of the internal alarm and chime generators.
Element
Default Range Description
Alarm
Configuration
-3.0 dB -80 to 0 dB Fader for setting the alarm level.
IRIS-Net PROMATRIX 8000 | en 744
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
