Topologies
This dialog allows adding new topologies to the Topology/Zones configuration. Following four topology types are
available:
– 1 in N
– Direct
– Direct AB
– Prog/Call
Following tables describe the elements of the four topology setting dialogs and maximized topology blocks.

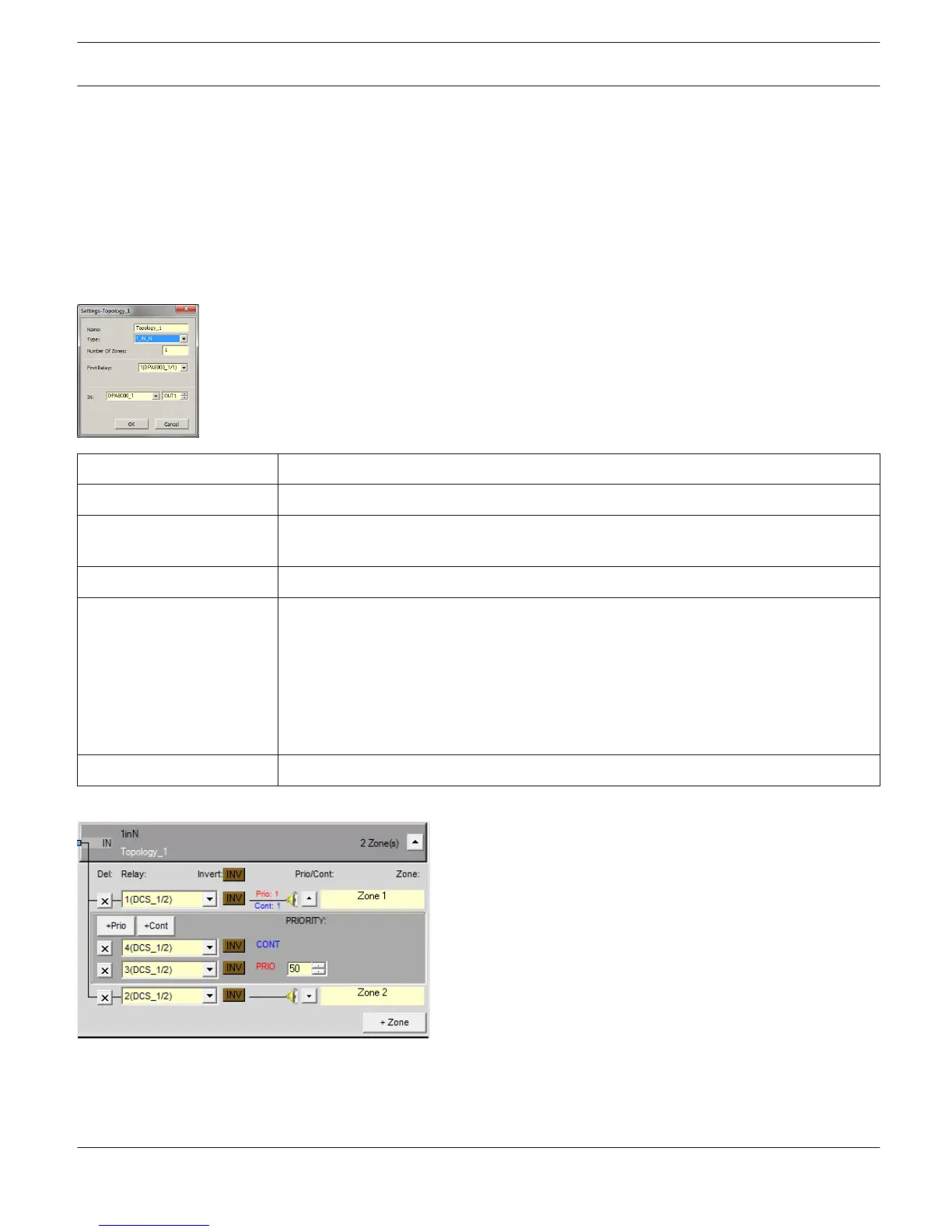

1 IN N topology
Element Description
Name Name of topology
Type This combo box lists all type of topologies that can be created in the Promatrix 8000
system.
Number Of Zones Number of zones to be created in the selected topology.
First relay Number of the first relay to be assigned to first zone created in this topology. Relays are
automatically assigned to the subsequent Zones in ascending order starting from the
first relay.
Note: The Relay Name is given as “Relay No (Device_x/Channel or Slot)” with x as
number of the device. An example for making this numbering clearer is listed below.
If No Relay is selected as first relay, zones are created without assigning any physical
device relays to them. In this case the relays have to be assigned manually.
IN Select the output channel of the amplifier to be used as input for this topology.
IRIS-Net
PROMATRIX 8000 | en 779
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
