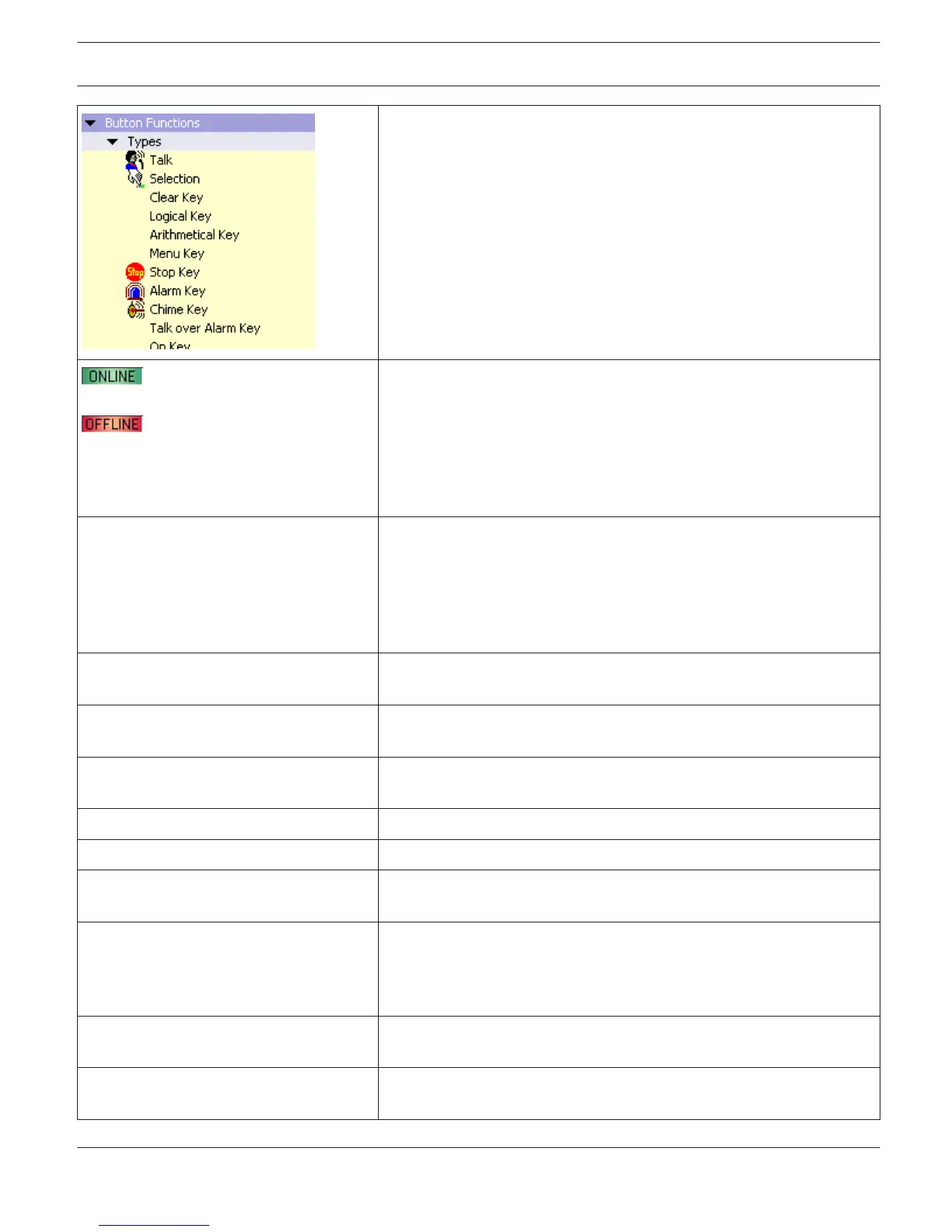

Select the desired button type and drag it from this dialog box onto the
button of a call station or a call station extension. Detailed information
about different types of buttons is provided on the following pages.
The Online / Offline indicator signals whether the call station is included
in the network or off-line. The red OFFLINE indicator signals that the
corresponding call station is off-line and that therefore no
communication is possible.
The green ONLINE indicator shows that the corresponding call station is
on-line and that sending and recei- ving data is possible. When on-line,
any parameter changes are immediately transmitted and active.
CAN ADDRESS Displays and lets the user enter the CAN address of the call station. Left-
click in the ENTER field and enter the desired address in the range from
1 to 16. The entered value is adopted by pressing RETURN. The entered
address has to match the setting in the call station's menu and may only
exist once on the CAN-Bus. When adding new call stations to an IRIS-Net
project, CAN addresses are automatically assigned in ascending order.
CAN TERMINATION Press this button (ON) to activate the internal termination resistor of the
CAN bus in the call station.
BAUDRATE The baud rate of the call station. Defining the baud rate is performed via
the UI-1 Universal Input Module of the DPM 8016.
CONNECTION Name of the UI-1 module and the DPM 8016, the call station is
connected to.
SLOT Number of the slot, the UI-1 module is assembled to.
EXTENSION Number of DPC 8120 extensions.
COMPRESSOR Press this button (ON) to activate the internal compressor of the call
station.
PILOT TONE Press this button (ON) to activate the pilot tone supervision of the call
station.
HINT: When using the pilot tone supervision only one call station can
be connected to a PCA bus.
FAULT MSG Press this button (ON) if error messages should be indicated in the LC-
display of the call station.
BUZZER Press this button (ON) if errors should be signaled via the integrated
buzzer.
IRIS-Net PROMATRIX 8000 | en 798
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
