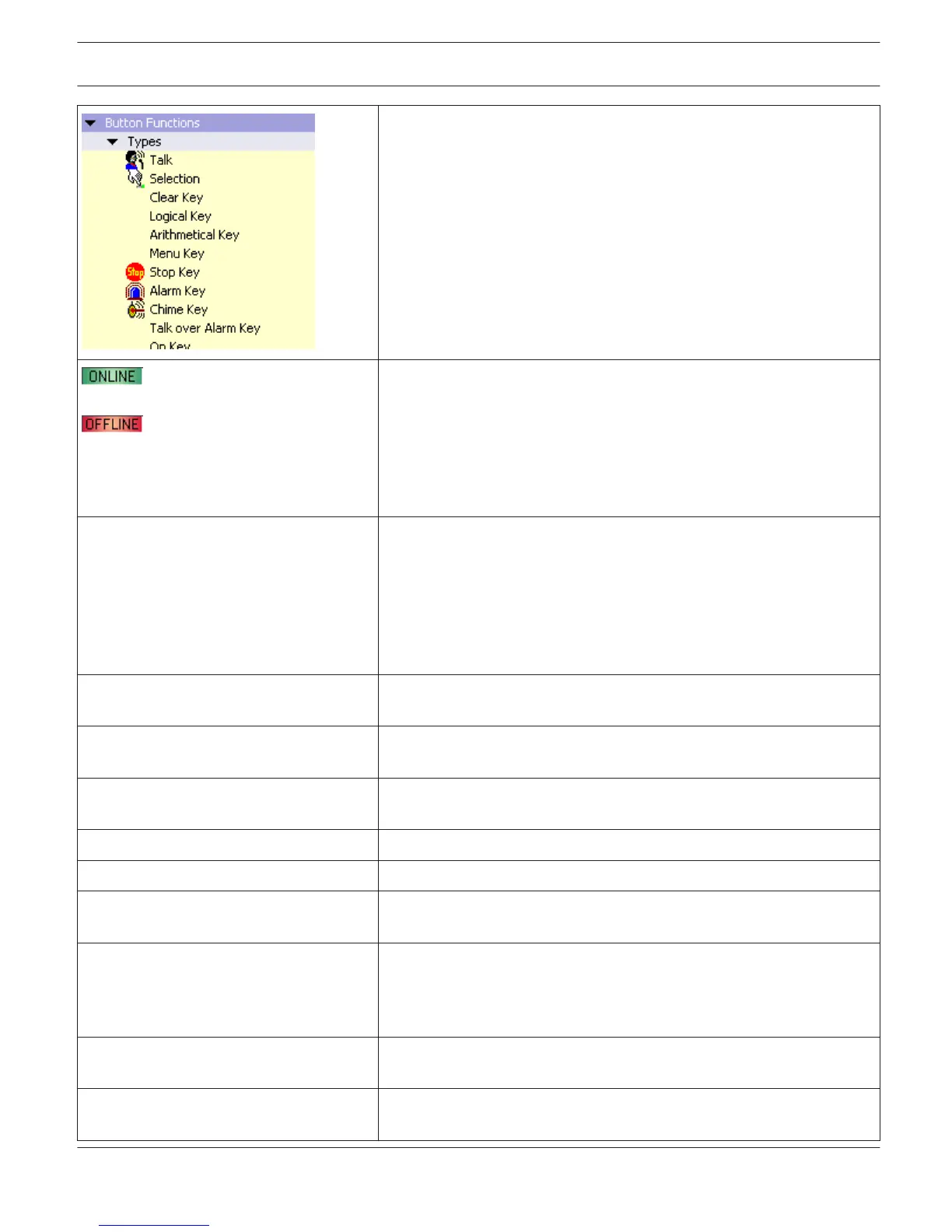

Select the desired button type and drag it from this dialog box onto the
button of the call station kit. Detailed information about different types
of buttons is provided on the following pages.
The Online / Offline indicator signals whether the call station kit is
included in the network or off-line. The red OFFLINE indicator signals
that the corresponding call station is off-line and that therefore no
communication is possible.
The green ONLINE indicator shows that the corresponding call station kit
is on-line and that sending and receiving data is possible. When on-line,
any parameter changes are immediately transmitted and active.
CAN ADDRESS Displays and lets the user enter the CAN address of the call station. Left-
click in the ENTER field and enter the desired address in the range from
1 to 16. The entered value is adopted by pressing RETURN. The entered
address has to match the setting of DIP switch S22 on the call station kit
and may only exist once on the CAN- Bus. When adding new call stations
to an IRIS-Net project, CAN addresses are automatically assigned in
ascending order.
CAN TERMINATION Please refer to the PMX-CSK owner‘s manual for details about CAN
termination.
BAUDRATE The baud rate of the call station kit. Defining the baud rate is performed
via the UI-1 Universal Input Module of the DPM 8016.
CONNECTION Name of the UI-1 module and the DPM 8016, the call station kit is
connected to.
SLOT Number of the slot, the UI-1 module is assembled to.
EXTENSION Number of paging console extensions.
COMPRESSOR Press this button (ON) to activate the internal compressor of the call
station kit.
PILOT TONE Press this button (ON) to activate the pilot tone supervision of the call
station kit.
HINT: When using the pilot tone supervision only one call station can
be connected to a PCA bus.
FAULT MSG Press this button (ON) if error messages should be indicated in the LC-
display of the call station kit.
BUZZER Press this button (ON) if errors should be signaled via the integrated
buzzer.
IRIS-Net PROMATRIX 8000 | en 813
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
