The Timer block sets the state at the output to true for an adjustable duration, when the Boolean
value at the input changes from false to true.
– Duration: Enter the duration in seconds, without unit.
– Hold: See illustration below.

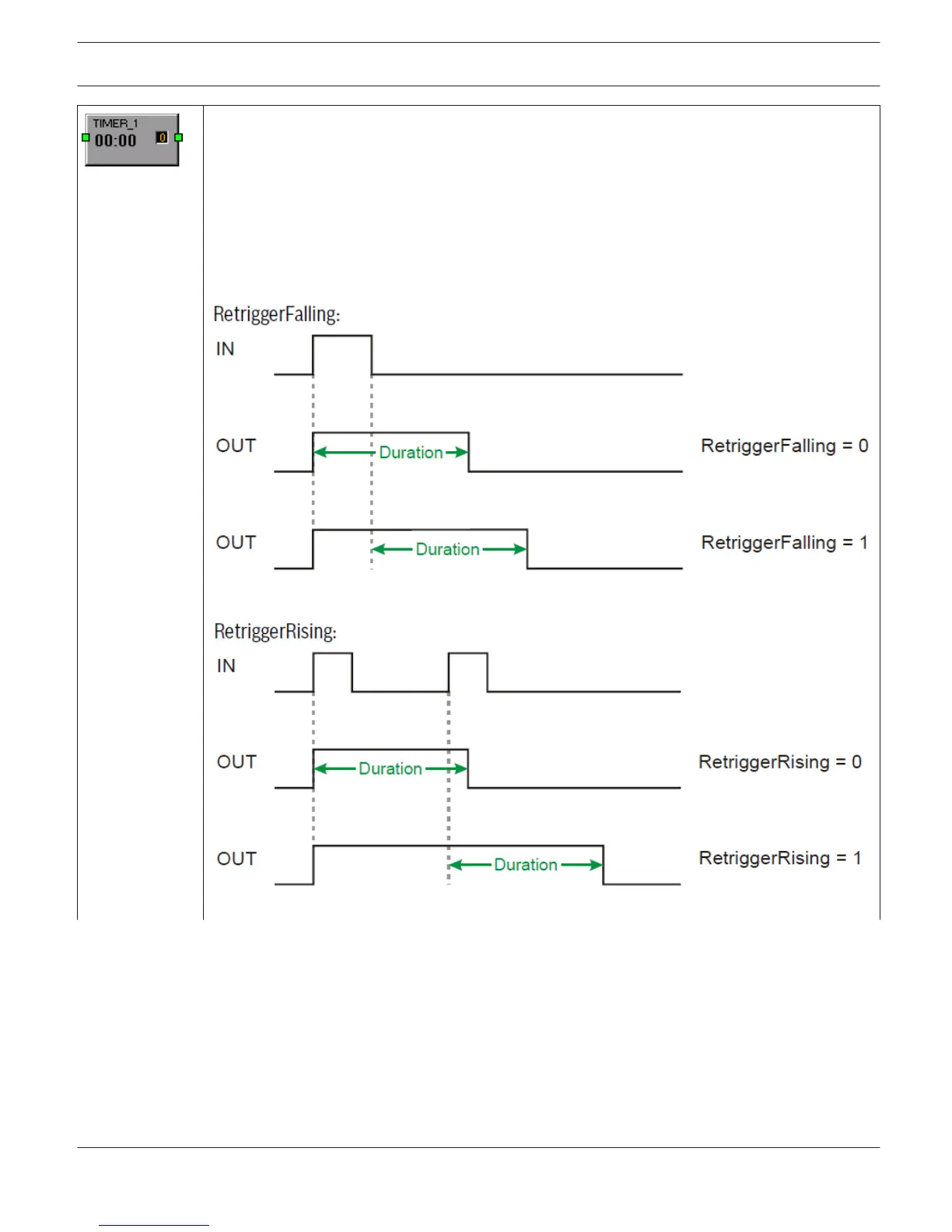

– Retrigger Falling: See illustration below.
– Retrigger Rising: See illustration below.
– State: State of the block (1 = time running)
– Timer Value
IRIS-Net
PROMATRIX 6000 | en 859
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
