– Green: Zone in use for non emergency purpose
– Red: Zone in use for emergency purpose
– Yellow: Zone fault detected
– Off: Zone in idle condition
PVA-4CR12 Device

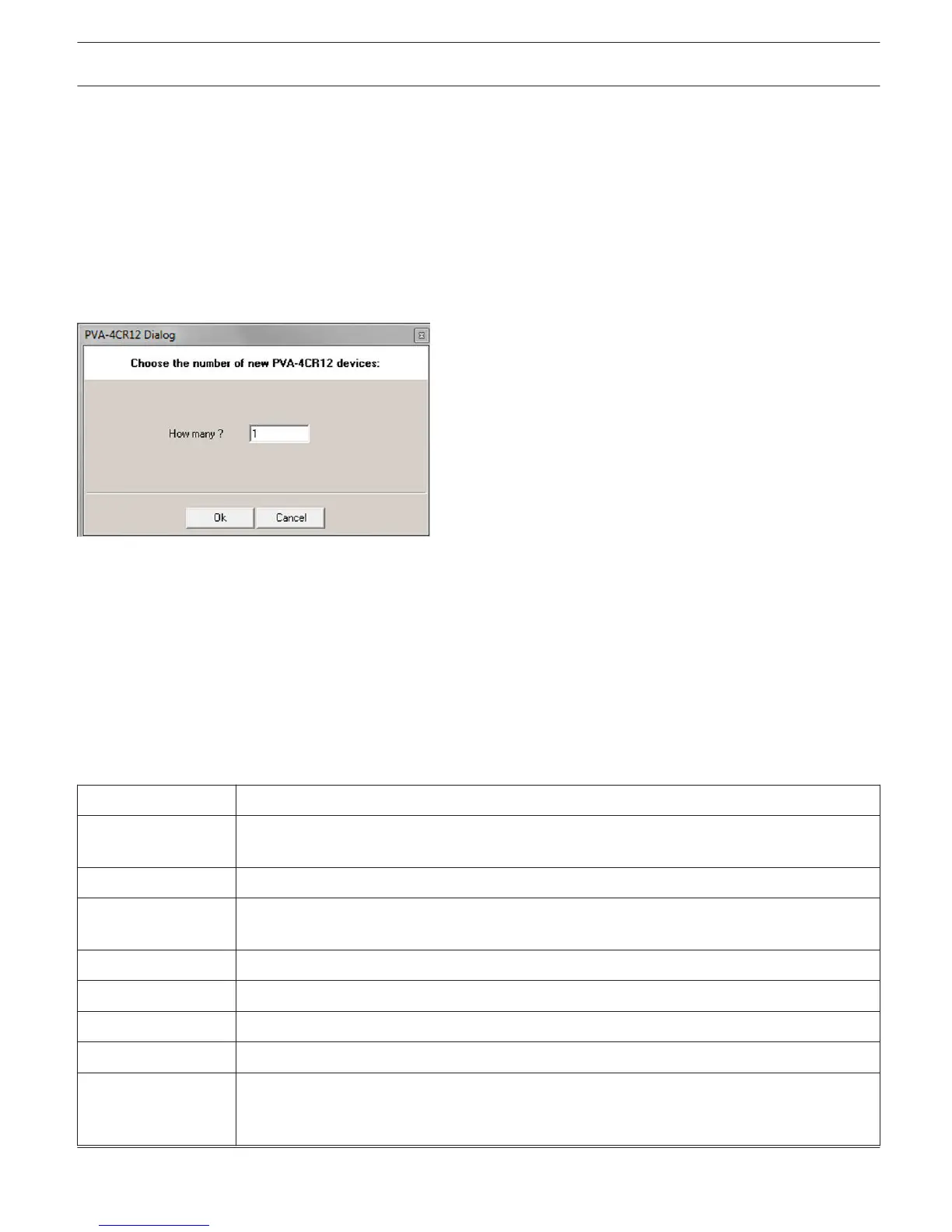

Start by creating a Controller Device in your IRIS-Net project. Drag a PVA-4CR12 from the Object Bar’s Devices
category or from the Devices window into the worksheet (see also chapters: Devices and Configurations menu). The
following dialog box appears:
Enter the required number of devices. Click on the OK button. The specified number of devices will be created and
displayed in the worksheet. A maximum of 4 controllers can be added.
The combo box at the top right of the worksheet lists all the controllers available in the network and allows access to
the different controllers.
Double clicking on a device icon opens the configuration dialog window. Double clicking on a device for the first time
will open the General dialog box. Here, you can specify initial settings that are necessary for further configuration and
communication. Additional configuration windows can be navigated to by clicking on the icons at the top of the
window. However, as a basic rule, IRIS-Net will remember which window was used last and reopen to this window next
time you double click on the device icon.
The following table lists all available device dialogs with a short description for each. For more detailed information,
please refer to the appropriate chapters.
Dialog
Description
General This window allows hardware settings to be configured, e.g. network settings, device name,
system time and firmware version.
Security This window allows editing passwords.
Supervision This window provides an overview of the operational state and current fault status of the
device.
DSP This window allows editing the DSP configuration of the device.
Task Engine This window lets you configure the Task Engine of the device.
Pagings This window lets you configure dynamic add/sub zones (VAR pattern).
UserMix This window lets you configure background music.
Interface From this window the interfaces (e.g. CAN bus, GPIO control port) can all be configured.
HINT: Ethernet interface settings are edited under General dialog in the paragraph Network
Settings.
IRIS-Net PAVIRO | en 912
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
