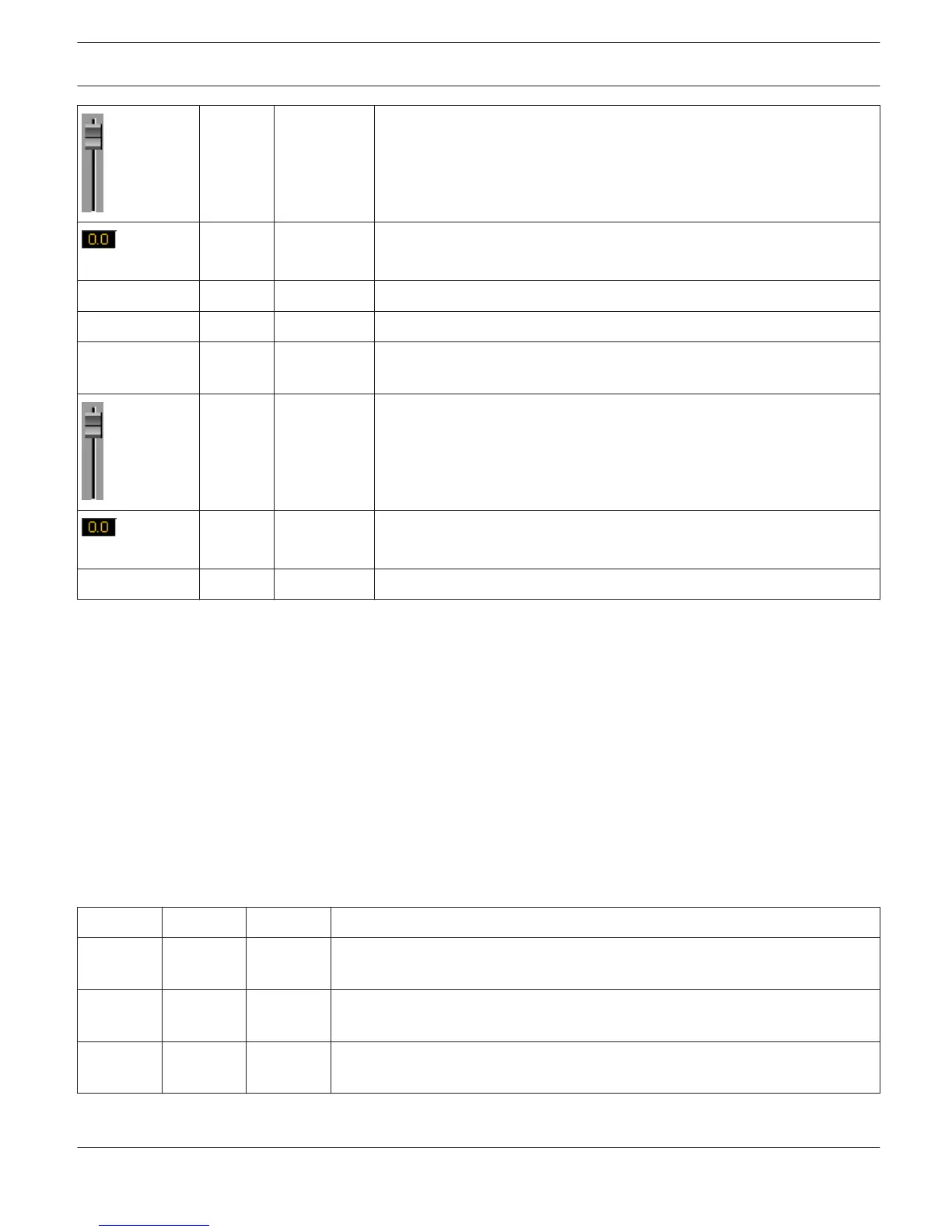

-3.0 dB -80 to 0 dB Fader for setting the alarm level.
-3.0 dB -80 to 0 dB The fader display shows the numerical value of the current fader setting
and additionally provides the possibility for entering a desired value.
NEW ALARM Press this button to ad a new alarm to the alarm list.
PLAY ALARM Press this button to playback the alarm selected in the alarm list.
Chime
Configuration
-9.0 dB -80 to 0 dB Fader for setting the chime level.
-9.0 dB -80 to 0 dB The fader display shows the numerical value of the current fader setting
and additionally provides the possibility for entering a desired value.
PLAY CHIME Press this button to playback the chime selected in the chime list.
MATRIX
Double click on the Matrix 14x4 to open the Matrix 10x4 dialog (the 4 missing inputs in this dialog are used for the
internal generators of the PVA-4CR12). The Matrix 10x4 allows connecting inputs and outputs. Left clicking the node in
the matrix where the output channel’s column and the input channel’s line meet with the mouse does connect an
output to an input. Clicking again onto the corresponding node disconnects inputs and outputs.
Please note following restrictions for making connections in the matrix:
– BGM inputs can only routed via a call station, so this is not possible in this dialog
– Unused inputs cannot be routed
– Inputs used for alarms, announcements etc. cannot be routed
– Inputs used for the Message Manager cannot be routed
– Manual routings override existing BGM routings
Element
Default Range Description
DUCKING -40 dB -85 to 0 dB The signal level of the back ground music is reduced by the level entered here
when the in input signal, signal level reaches or exceeds a set threshold.
FADE IN 0.02 s 0.01 to 4 s FADE IN defines how fast the gain of the background music signal is reduced
after the input signal exceeds the threshold level.
FADE OUT 0.02 s 0.01 to 0.4
s
FADE OUT defines how fast the gain of the background music signal is returned
to the preset level once the input signal drops below the threshold level.
IRIS-Net PAVIRO | en 926
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
