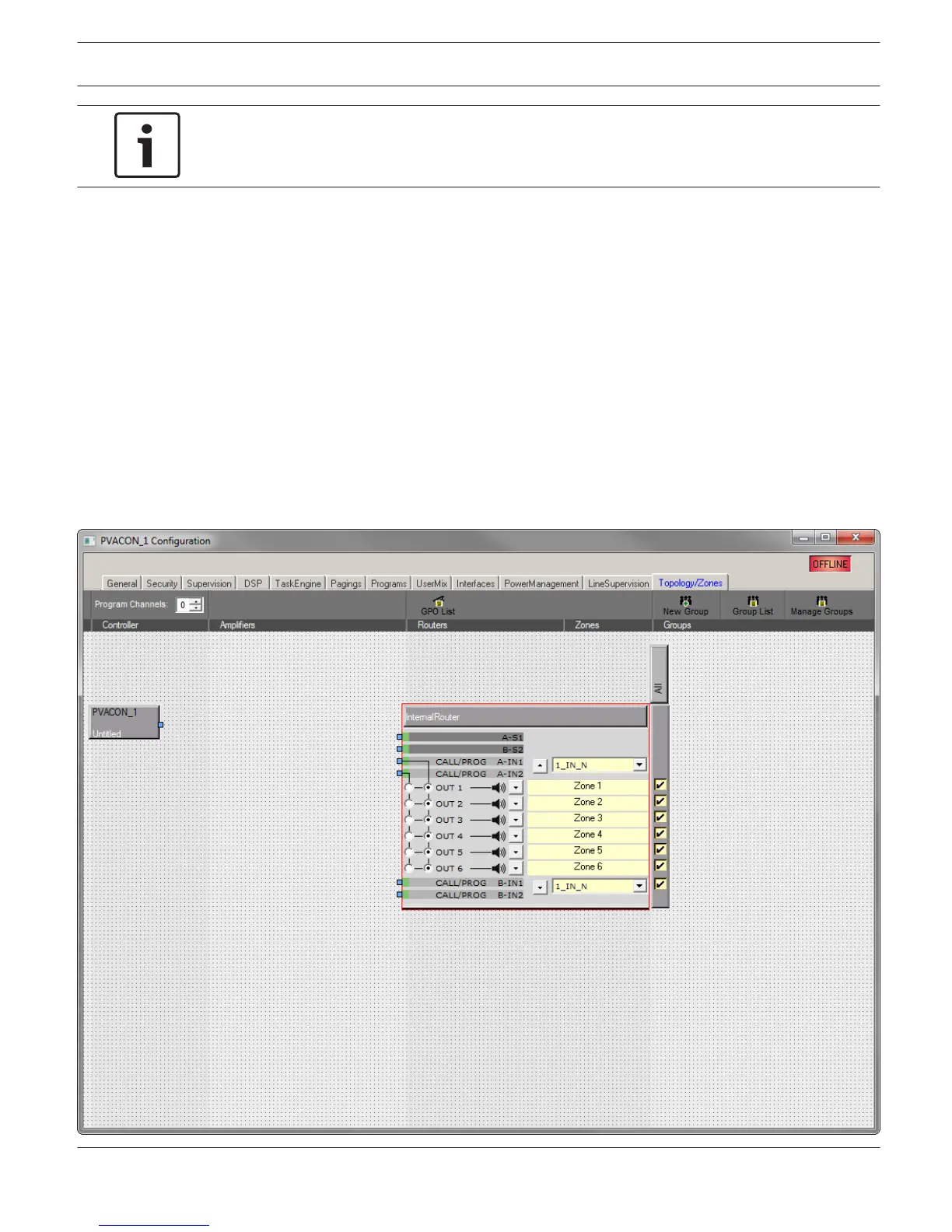

Notice!
If router clusters with EOL8001 supervision are used, switching router clusters within one device
is possible. This allows creating 1-in-24 or 2-in-24 topologies with EOL 8001 supervision.
– If a 1-in-N topology is selected, the connections of the router cluster inputs (IN1 or IN2) have to be set correctly.
E.g. every loudspeaker output has to be connected to a router cluster input, and the router cluster input has to be
connected to a amplifier output.
For spare amplifier switching, the following rules apply:
– Automatic spare amplifier switching can be activated for every amplifier channel in the system. One spare
amplifier channel is possible for an amplifier channel connected to the AMP IN 1 or AMP IN 2 input of a router
cluster. The spare amplifier channel as to be connected to the S1 or S2 input of the same router cluster.
– If an amplifier output channel is connected to the inputs of more than one router clusters in parallel and should be
backed up by a spare amplifier, the channel of the spare amplifier has to be connected to the same router clusters
in parallel.
If a 2-in-N or Program/Call topology is selected and the amplifier should be backed up by a spare amplifier, two spare
amplifier channels are required. It is not allowed to backup both channels of the topology with one spare amplifier
channel only.
IRIS-Net PAVIRO | en 955
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
