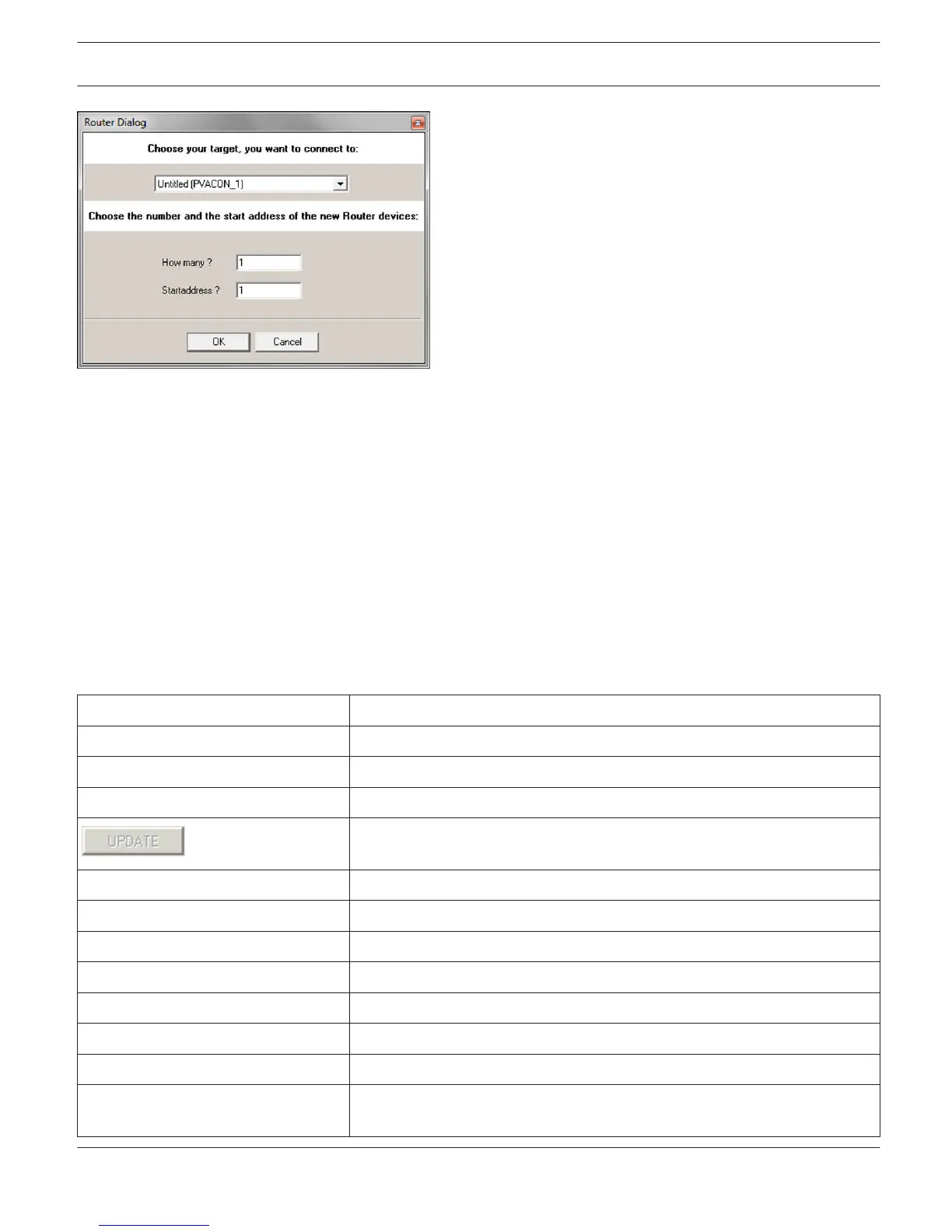

Select the PVA-4CR12 the router is to be connected to. A maximum of 20 external routers is allowed per controller and
a maximum of 39 external routers is allowed in a network.
Enter the required number of devices and select a communication interface. Click on the OK button to accept these
settings. The specified number of devices will be created and displayed in the worksheet. Selected devices can be
dragged around and repositioned at will. To select a device either click and drag the mouse to draw a rectangle around
it or hold down the 'ctrl' key and click on the device. In either case a successfully selected device is shown with a red
border around it.
Double clicking on a device icon opens the configuration dialog window. Double clicking on a device for the first time
will open the General dialog box. Here, you can specify initial settings that are necessary for further configuration and
communication. Additional configuration windows can be navigated to by clicking on the icons at the top of the
window. However, as a basic rule, IRIS-Net will remember which window was used last and reopen to this window next
time you double click on the device icon.
Configuration Dialog
Element Description
MODEL Indicates PVA-4R24, so you know the model of the device.
NAME IRIS-Net internal device name of the Router.
FIRMWARE Indicates the firmware version of the Router when on-line.
Opens the firmware update dialog.
NOTE: The default password for the firmware update is “0000”.
ADDRESS Indicates the CAN address of the device.
FIND Press the find button to activate the find function of the device.
OPERATING STATUS Indicates the operating status of the Router.
CONTROL IN
STATE Displays the control inputs’ current state.
VOLTAGE Displays the control inputs’ current voltage.
FAULT MON Set the checkbox of supervised control inputs to activate the supervision.
ACTIVE Set the upper and lower bound (voltage) of the ACTIVE state of the
supervised control inputs.
IRIS-Net PAVIRO | en 966
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
