3-56
Confidential
8.13 PULL ARM L/R
(1) Remove the Pull arm spring ADF L and the Pull arm L from the Joint cover.
(2) Remove the Pull arm spring ADF R and the Pull arm R from the Joint cover.

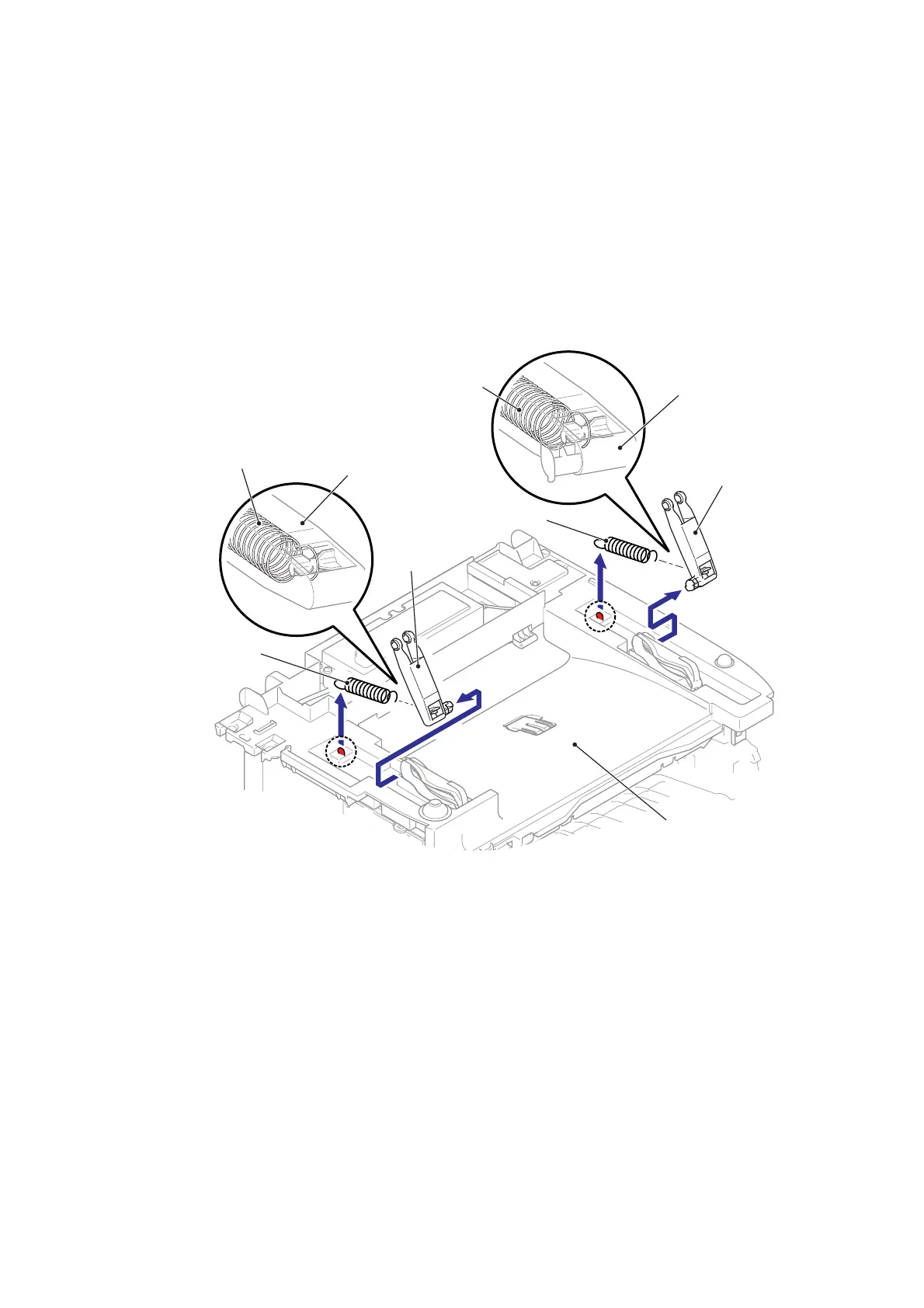

Fig. 3-54
Joint cover
Pull arm R
Pull arm spring ADF R
Pull arm spring ADF L
Pull arm L
Pull arm R
Pull arm spring ADF R
Pull arm spring ADF L
Pull arm L
