8.11.10 EJECTION ROLLER ASSY
(1) Release the Hook of the Ejection roller bushing, and then slide the Ejection roller ASSY
to remove the Ejection roller ASSY from the Lower document chute ASSY.

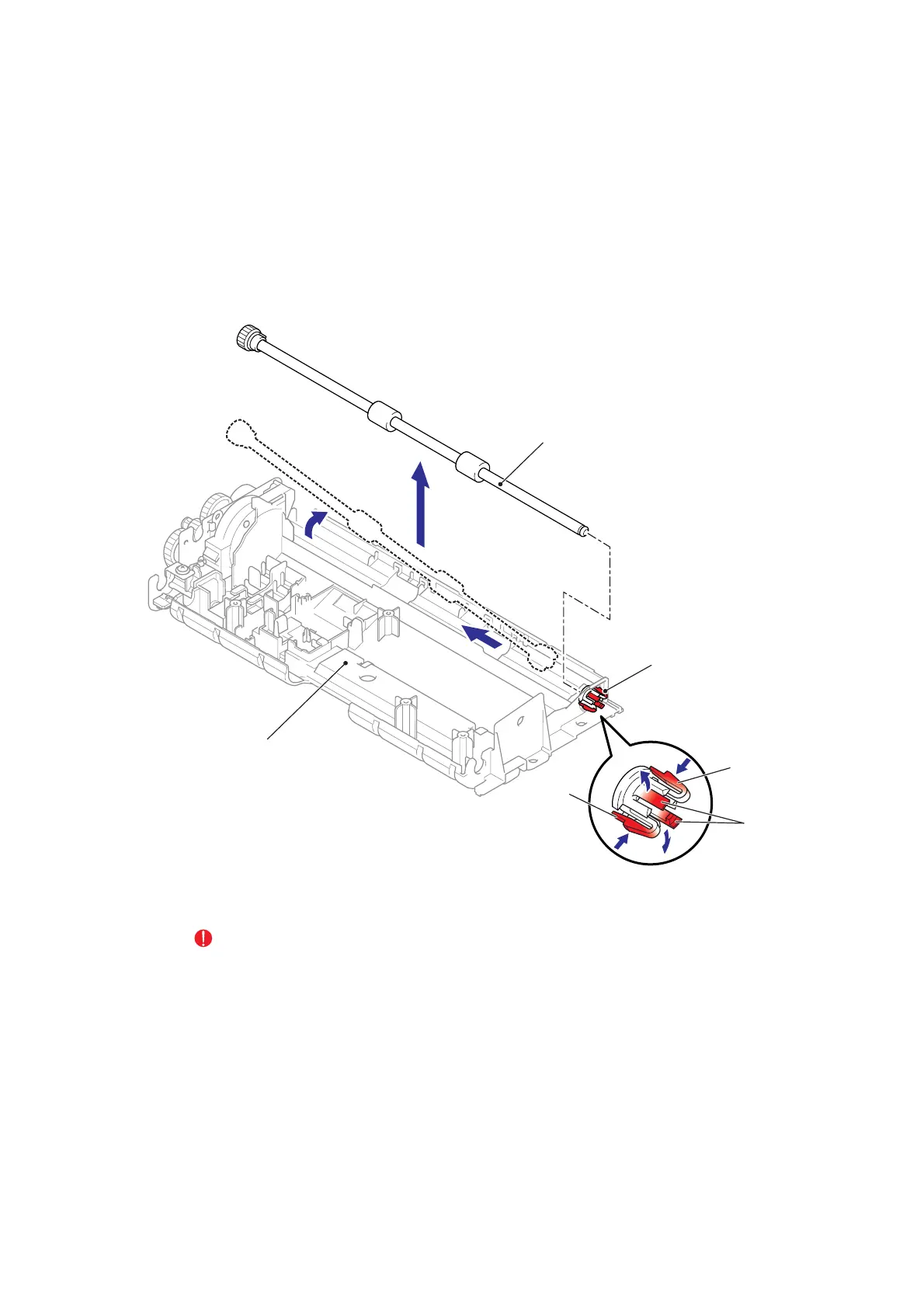

Fig. 3-39
CAUTION:
Be careful not to get grease on the roller.
Ejection roller ASSY
Lower document chute ASSY
Ejection roller bushing
Hook
Hook
Hook
