Brother MFC-7450 Service Manual

3-92
Confidential
8.36 TONER SENSOR PCB UNIT ASSY
(1) Remove the Taptite bind B M3x10 screw, and then remove the Link stopper and the
Toner sensor PCB unit ASSY from the Main body.
(2) Remove the PT sensor holder from the Toner sensor PCB unit ASSY.

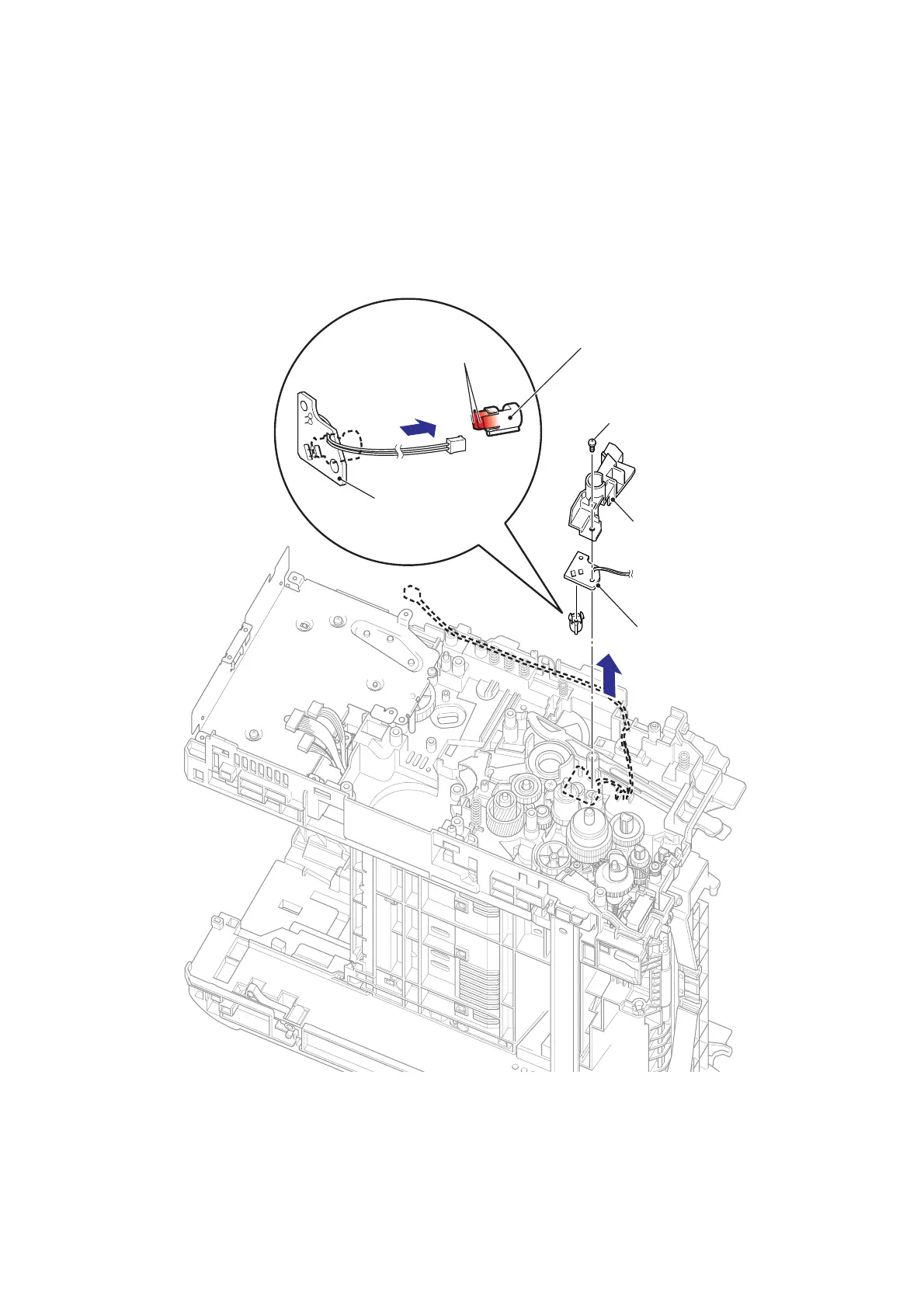

Fig. 3-96
1
2
Toner sensor PCB
unit ASSY
Link stopper
Taptite bind B M3x10
PT sensor holder
Toner sensor PCB
unit ASSY
<Left side>
Hook
