3-88
Confidential
8.33 DRIVE SUB ASSY
(1) Remove the Taptite cup S M3x6 SR screw and the Taptite bind B M4x12 screw, and then
remove the Under FG wire from the Main body.

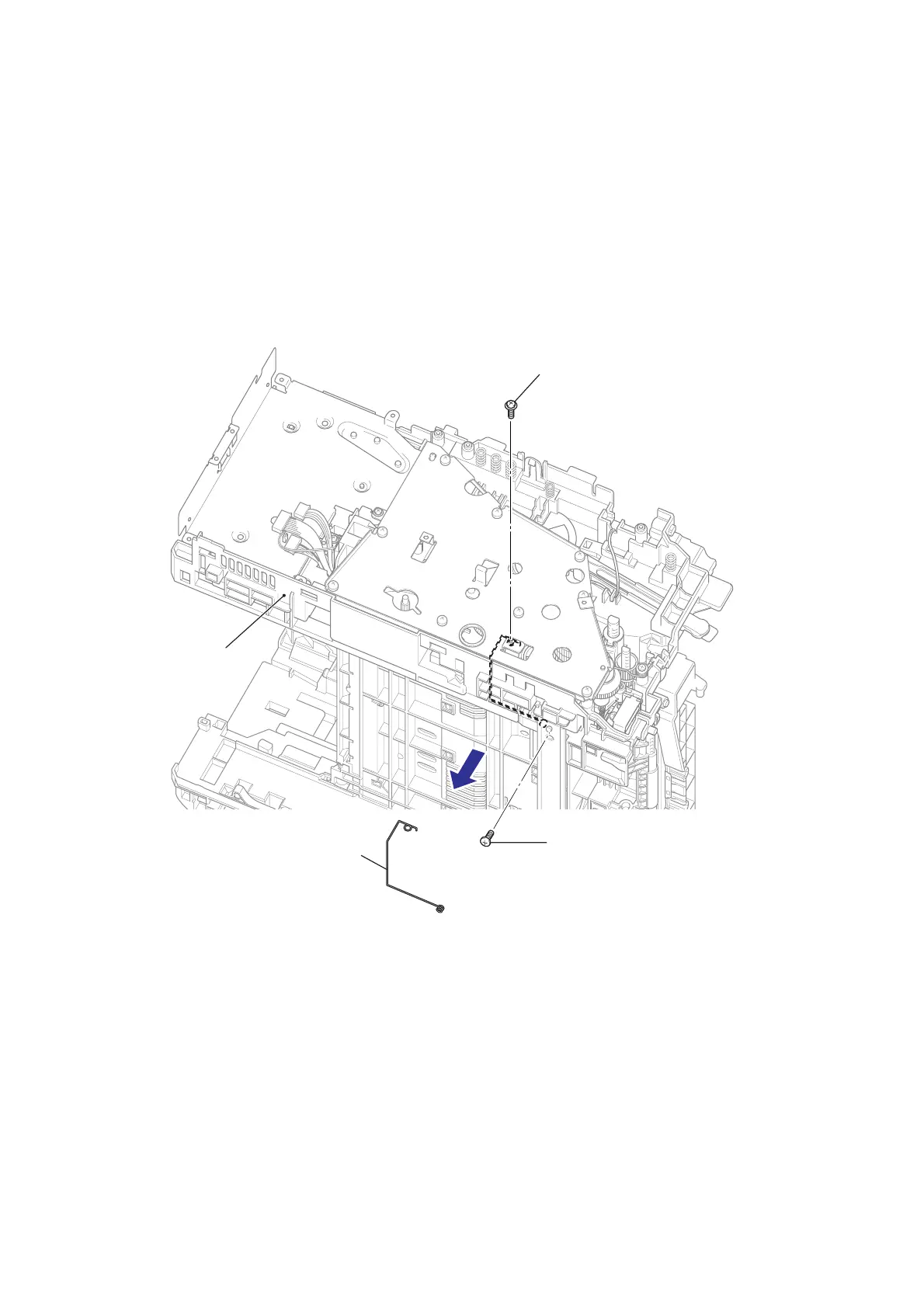

Fig. 3-92
Main frame L
ASSY
Taptite cup S M3x6 SR
Taptite bind B M4x12
Under FG wire
<Left side>
