8.11.6 UPPER DOCUMENT CHUTE ASSY
(1) Remove the four Taptite cup B M3x10 screws.
(2) Release the Hook to remove the Upper document chute ASSY from the ADF unit.

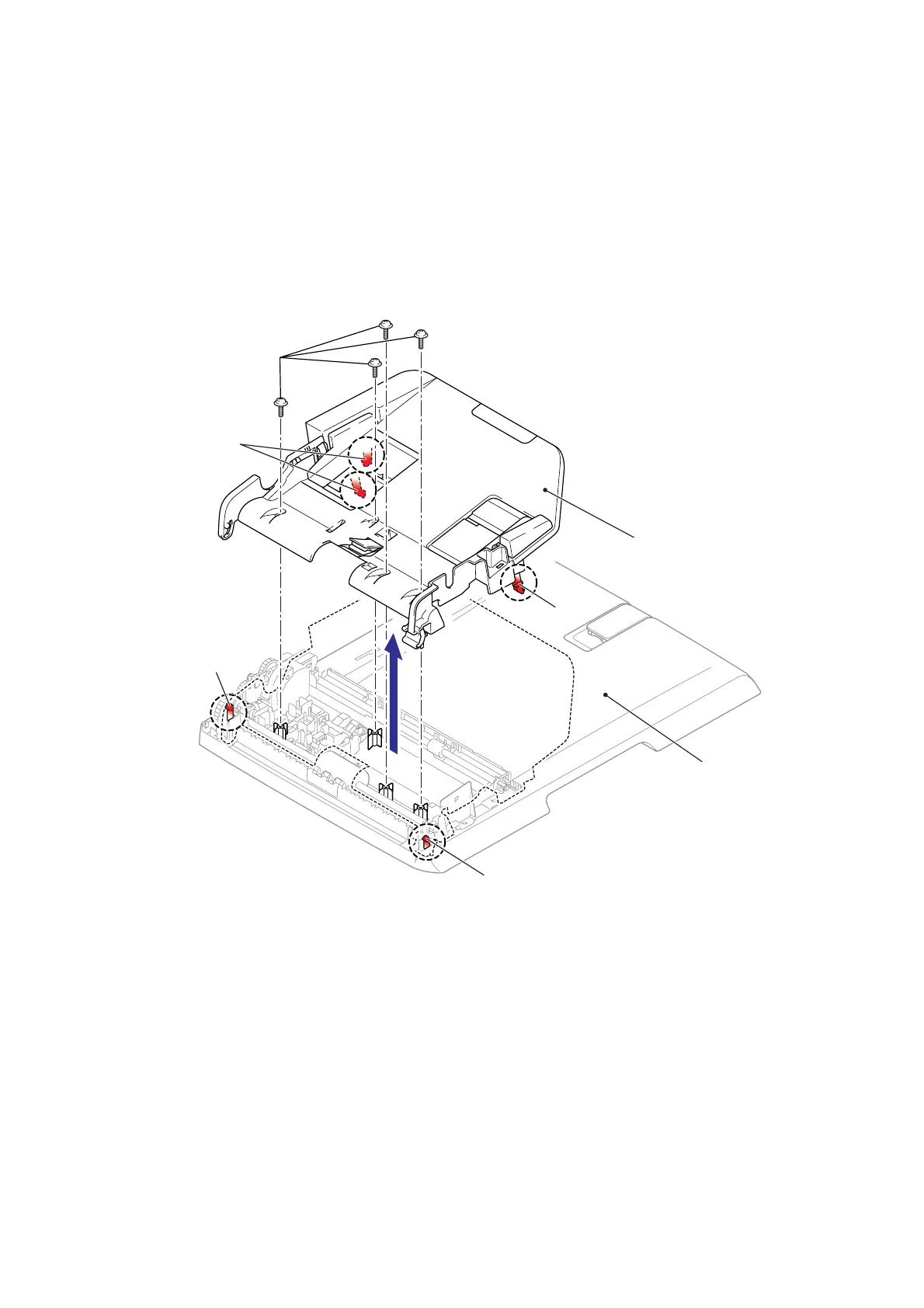

Fig. 3-33
Upper document chute ASSY
ADF unit
Taptite cup B M3x10
Hook
Hook
Hook
Hook
