Brother MFC-7450

3-77
Confidential

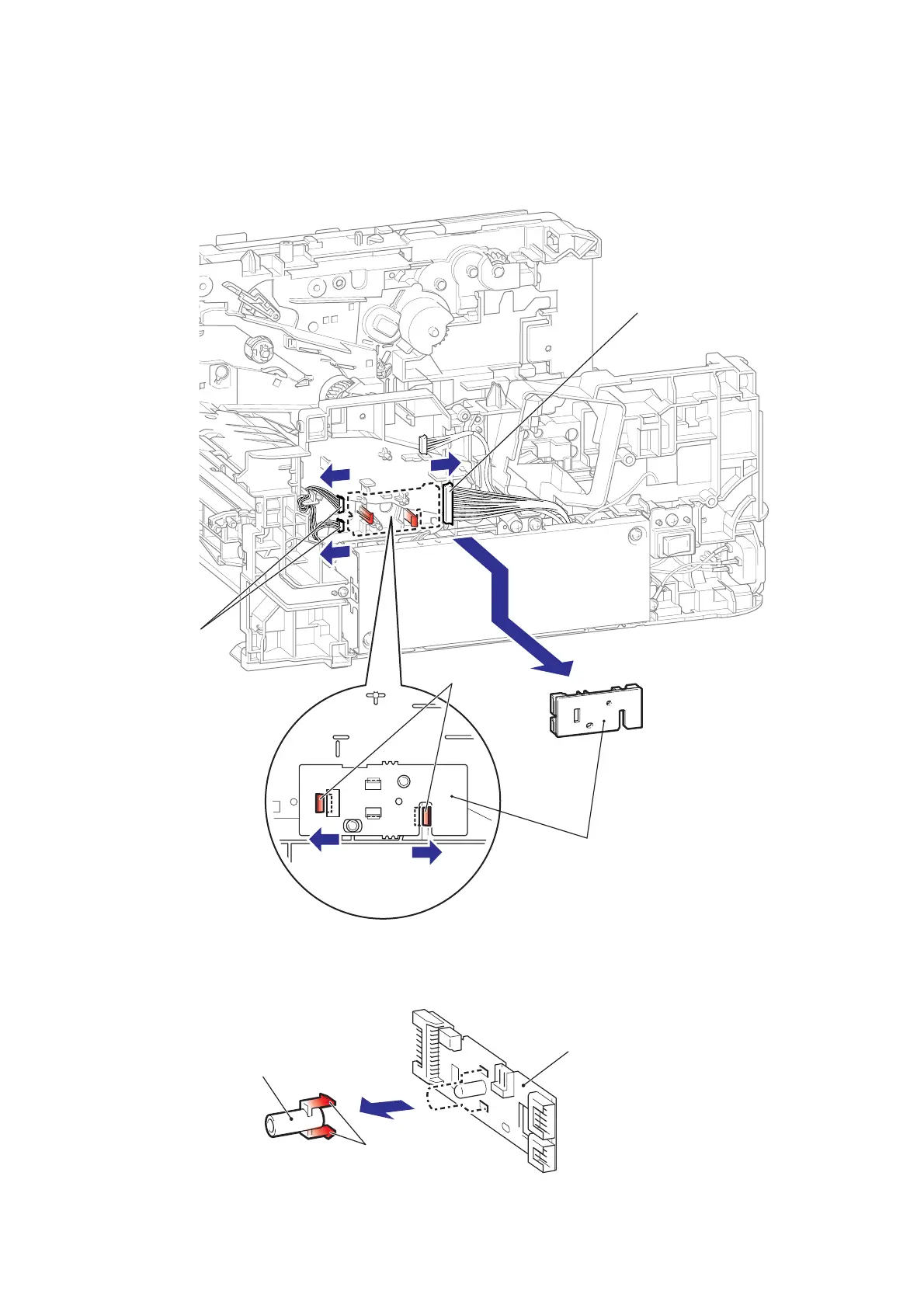

8.29.3 TONER LED PCB ASSY
(1) Disconnect the three Connectors from the Toner LED PCB ASSY.
(2) Release the Hook to remove the Toner LED PCB ASSY from the Main body.
Fig. 3-78
(3) Release the Hook to remove the LED holder from the Toner LED PCB ASSY.
Fig. 3-79
Hook
Connector
Toner LED PCB ASSY
Connector
1a
2b
2a
1
1
1
2a
1
1
1
<Right side>
Hook
Toner LED PCB ASSY
LED holder
