3-20
Confidential
8.2.2
PAPER STOPPER L / PAPER STOPPER S
(1) Release the Boss to remove the Paper stopper L from the Front cover ASSY.
(2) Release the Boss to remove the Paper stopper S from the Paper stopper L.

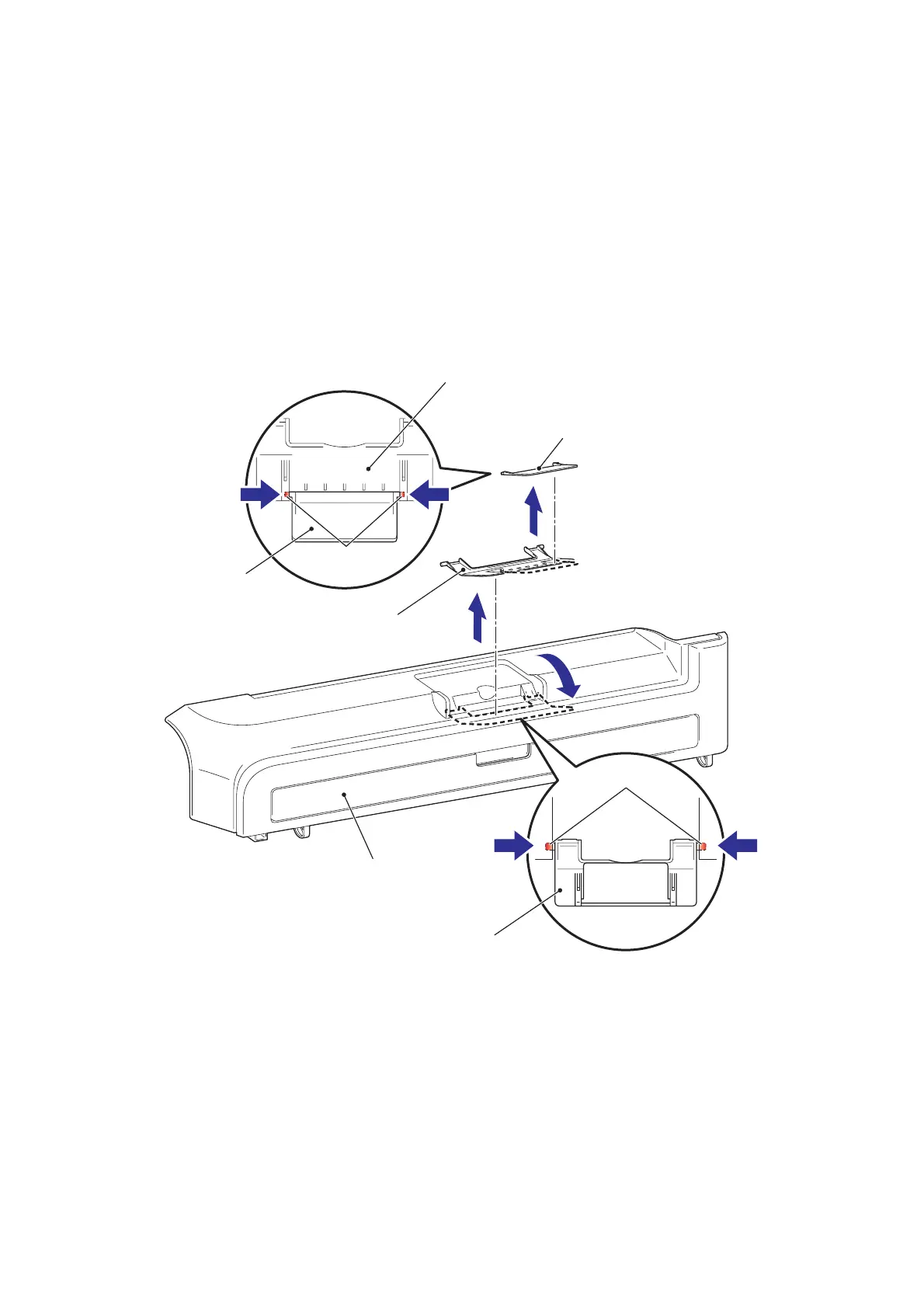

Fig. 3-11
Front cover ASSY
Paper stopper S
Paper stopper S
Paper stopper L
Paper stopper L
Paper stopper L
1a
1c
2a 2a
2b
1b 1b
Boss
Boss
