8.11.15 DOCUMENT DRESS COVER
(1) Remove the Taptite cup B M3x8.
(2) Release the Boss of the Document dress cover from the Document cover sub ASSY.
(3) Release the Hook to remove the Document dress cover from the Document cover sub
ASSY.

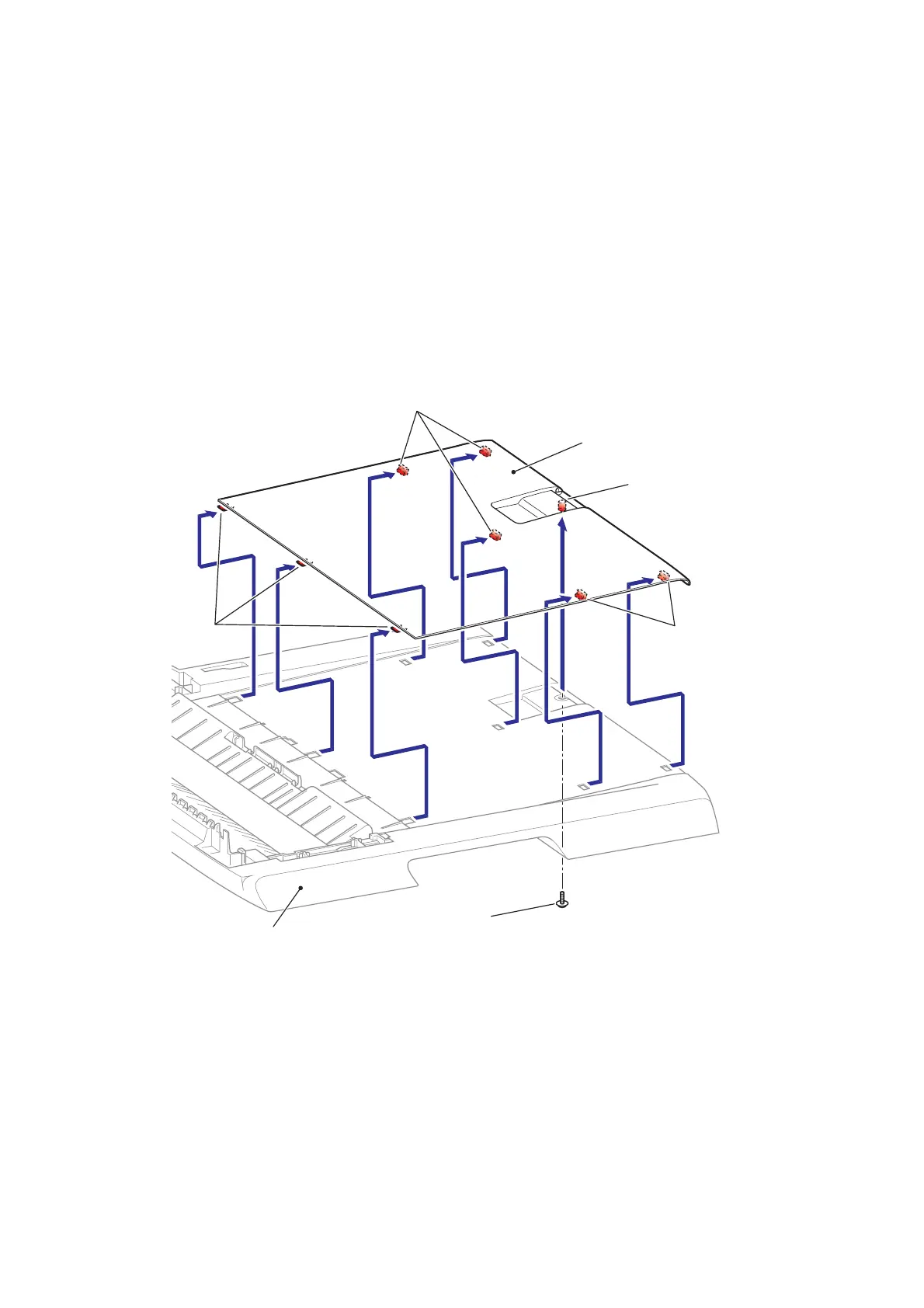

Fig. 3-44
Hook
Hook
Hook
Boss
Taptite cup B M3x8
2
3
3
3
3
3
3
3
3
Document dress cover
Document cover sub ASSY
