3-50
Confidential
8.12 DOCUMENT SCANNER UNIT
8.12.1
DOCUMENT SCANNER UNIT

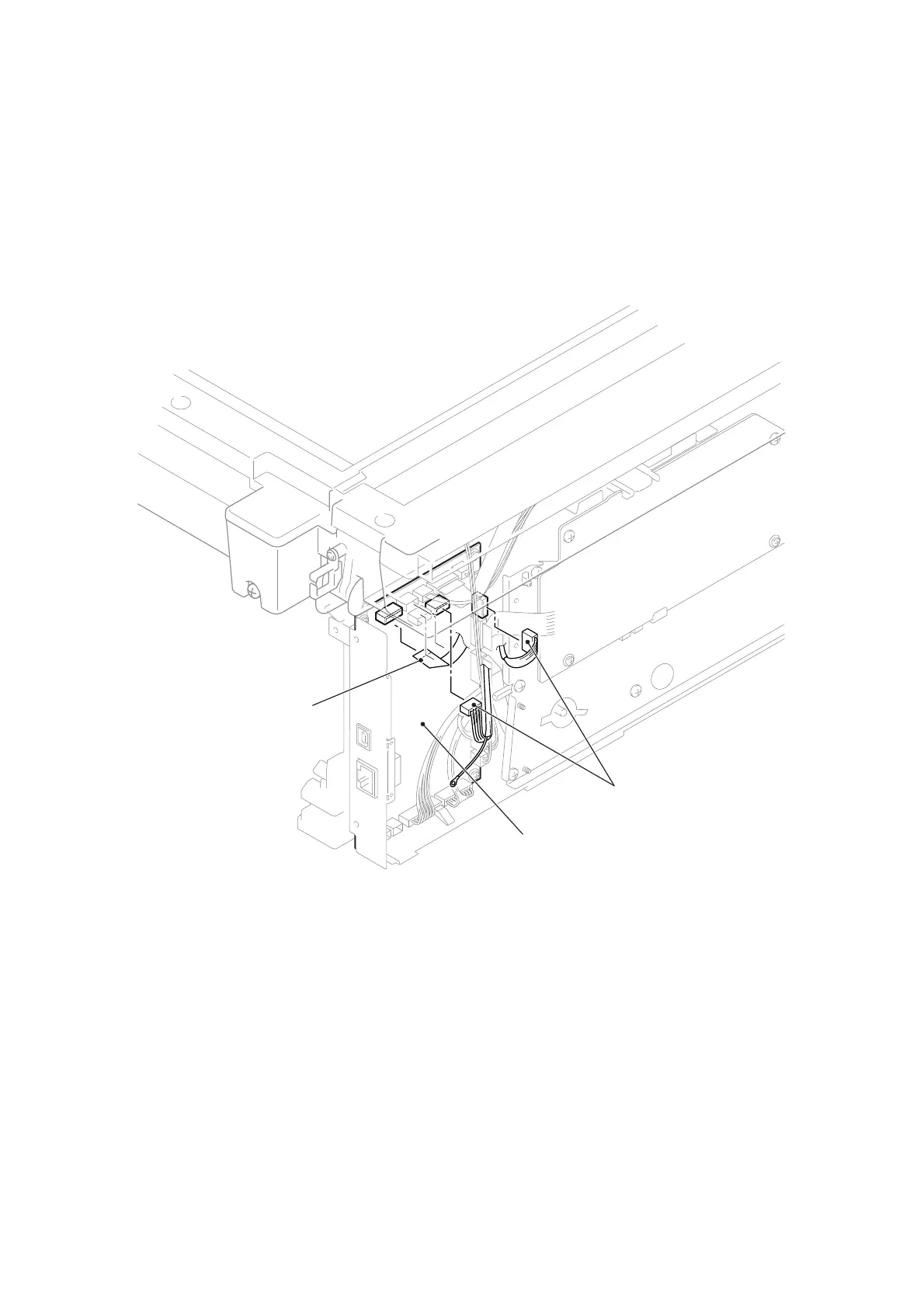

(1) Disconnect the two connectors and FFC from the Main PCB ASSY.
Fig. 3-45
Note:
• After disconnecting the flat cable(s), check that each cable is not damaged at its end or
short-circuited.
• When connecting the flat cable(s), do not insert it at an angle. After insertion, check that
the cable is not at an angle.
Connector
FFC
Main PCB ASSY
<Back side>
To Next Page
