8.11.8 ADF SENSOR PCB ASSY
(1) Pull the Hook to slide the Document front actuator.
(2) Remove the Document front actuator from the Lower document chute ASSY.
(3) Pull the Hook to slide the Document rear actuator.
(4) Remove the Document rear actuator from the Lower document chute ASSY.

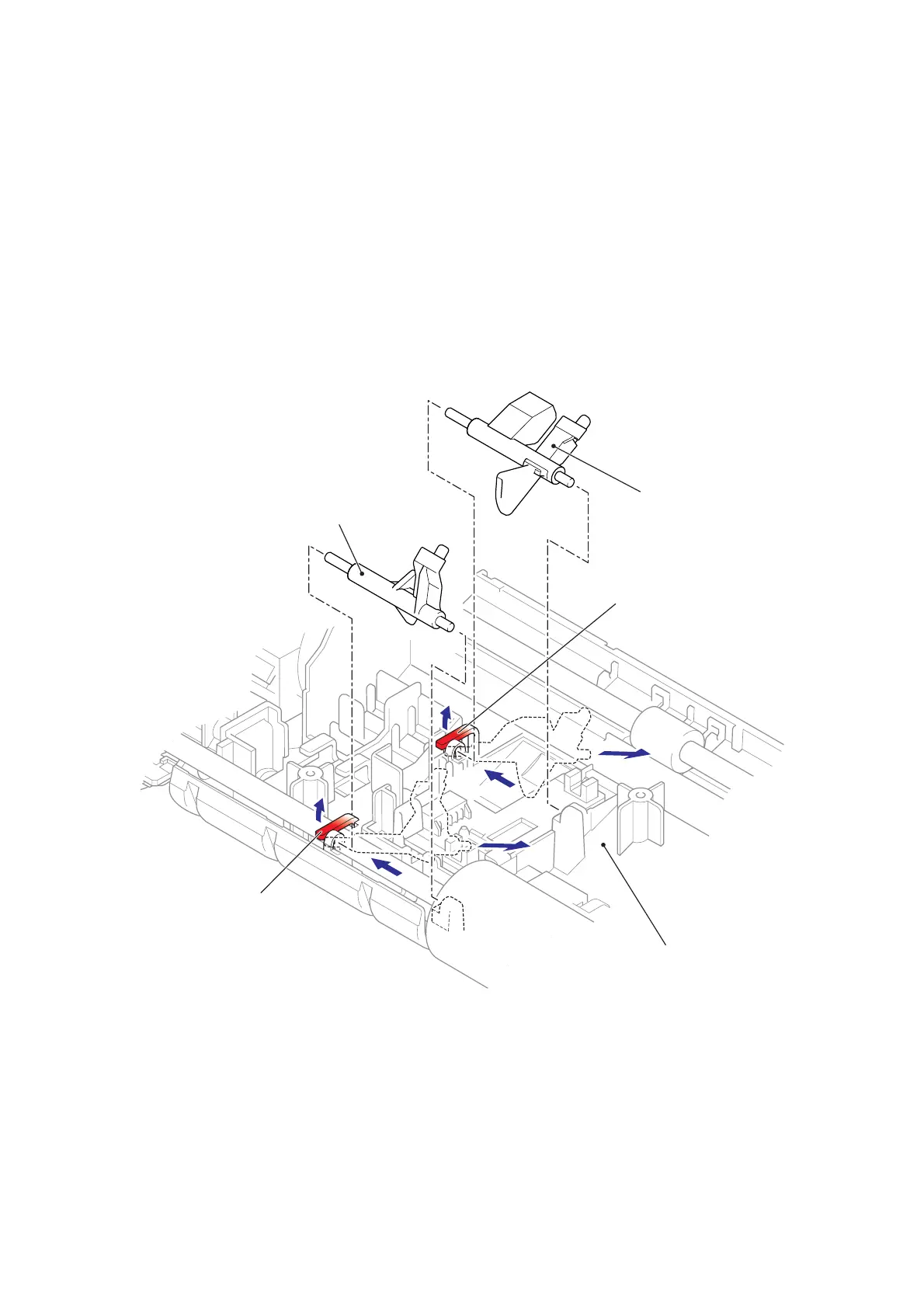

Fig. 3-36
Document front actuator
Document rear actuator
Lower document chute ASSY
Hook
Hook
