Brother MFC-7450

3-75
Confidential
8.29 FAN MOTOR 60 UNIT / COVER SENSOR HARNESS ASSY / TONER LED
PCB ASSY
8.29.1 FAN MOTOR 60 UNIT
(1) Disconnect the Connector from the Toner LED PCB ASSY.
(2) Remove the Fan motor 60 unit from the Main body.

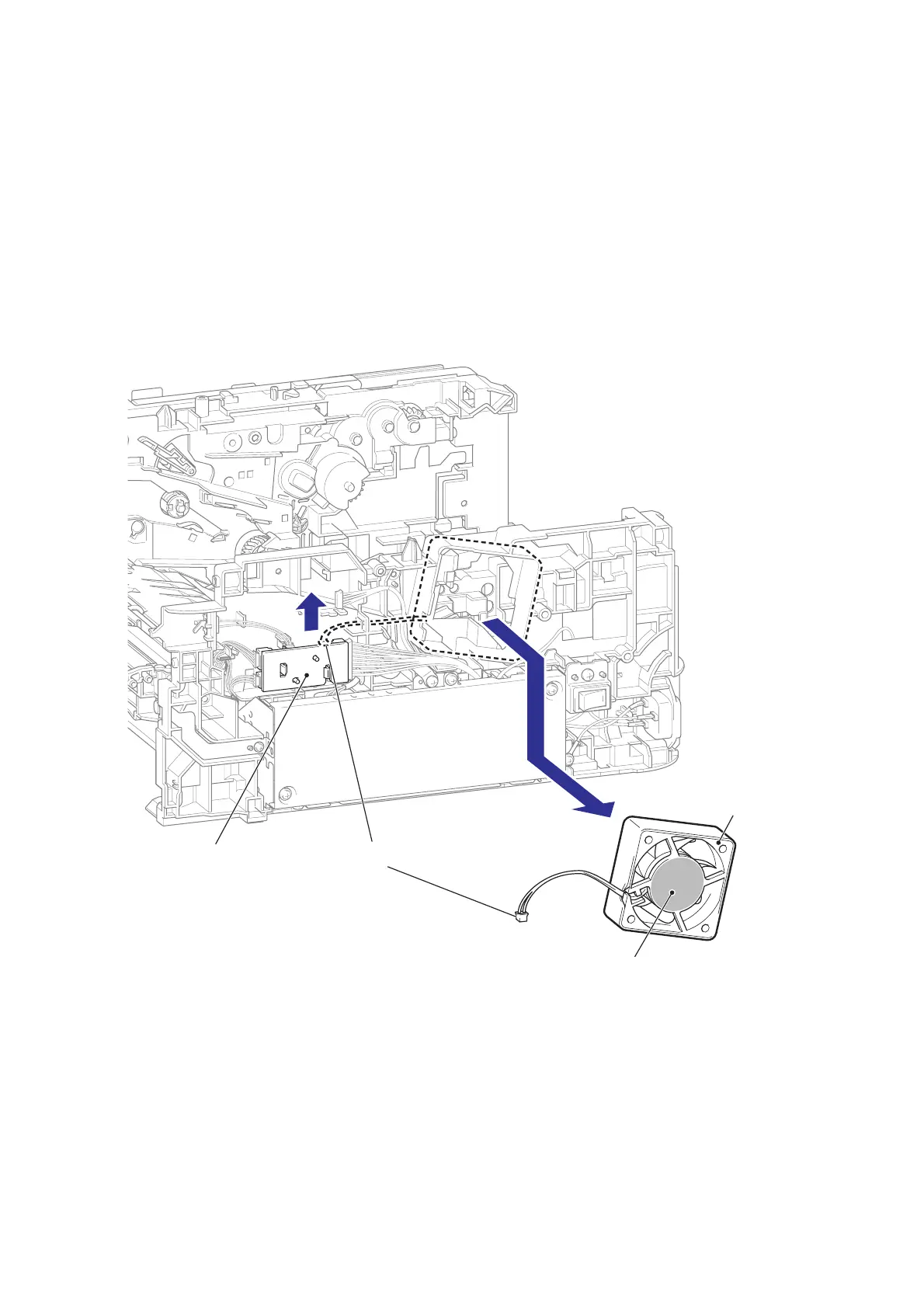

Fig. 3-76
Assembling Note:
When assembling the Fan motor 60 unit, place it so that the attached Label faces outwards.
Fan motor 60 unit
Label
Connector
Toner LED PCB ASSY
2
1
<Right side>
