ADF MOTOR
(1) Remove the Taptite bind S M3x6 screw, and then remove the ADF motor from the Drive
frame ASSY.
(2) Remove the ADF harness unit from the ADF motor.

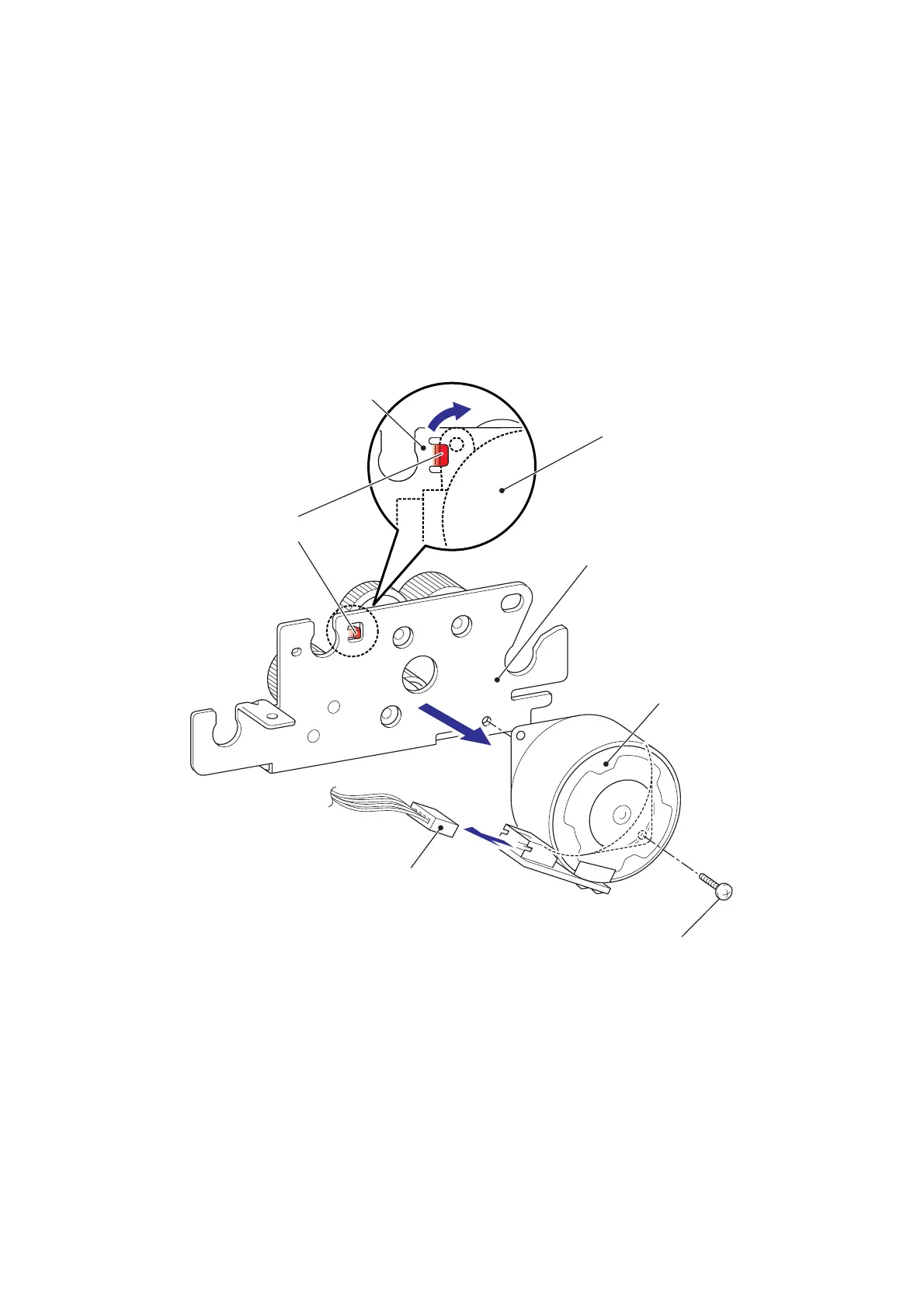

Fig. 3-41
Drive frame ASSY
Drive frame ASSY
ADF motor
ADF harness unit
ADF motor
Hook
Taptite bind S M3x6
1a
1b
2
