8. DISASSEMBLY PROCEDURE
■ Preparation
Prior to proceeding with the disassembly procedure,
(1) Unplug
• the AC cord,
• the modular jack of the telephone line,
• the USB cable, if connected,
• the LAN cable, if connected,
• the modular jack of the external telephone set if connected.
(2) Remove
•the Paper tray,
• the Toner cartridge and Drum unit

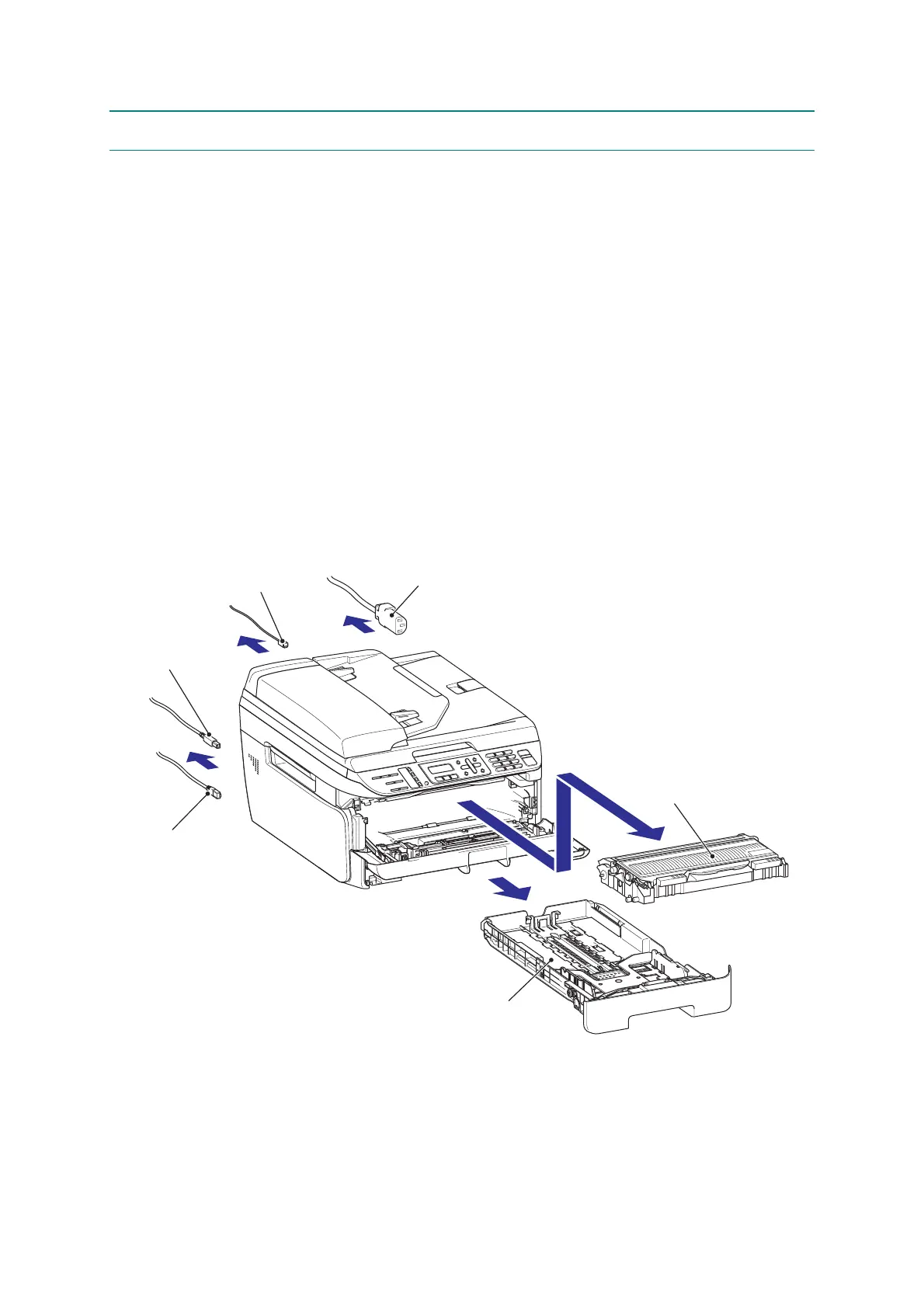

Fig. 3-7
Paper tray unit
AC cord
Telephone line cord
USB I/F cable
LAN cable
Drum/Toner unit
