3-18
Confidential
8.2 FRONT COVER ASSY
8.2.1
FRONT COVER ASSY
(1) Open the Front cover ASSY.
(2) Release the Hook to remove the DEV joint link from the Front cover ASSY.

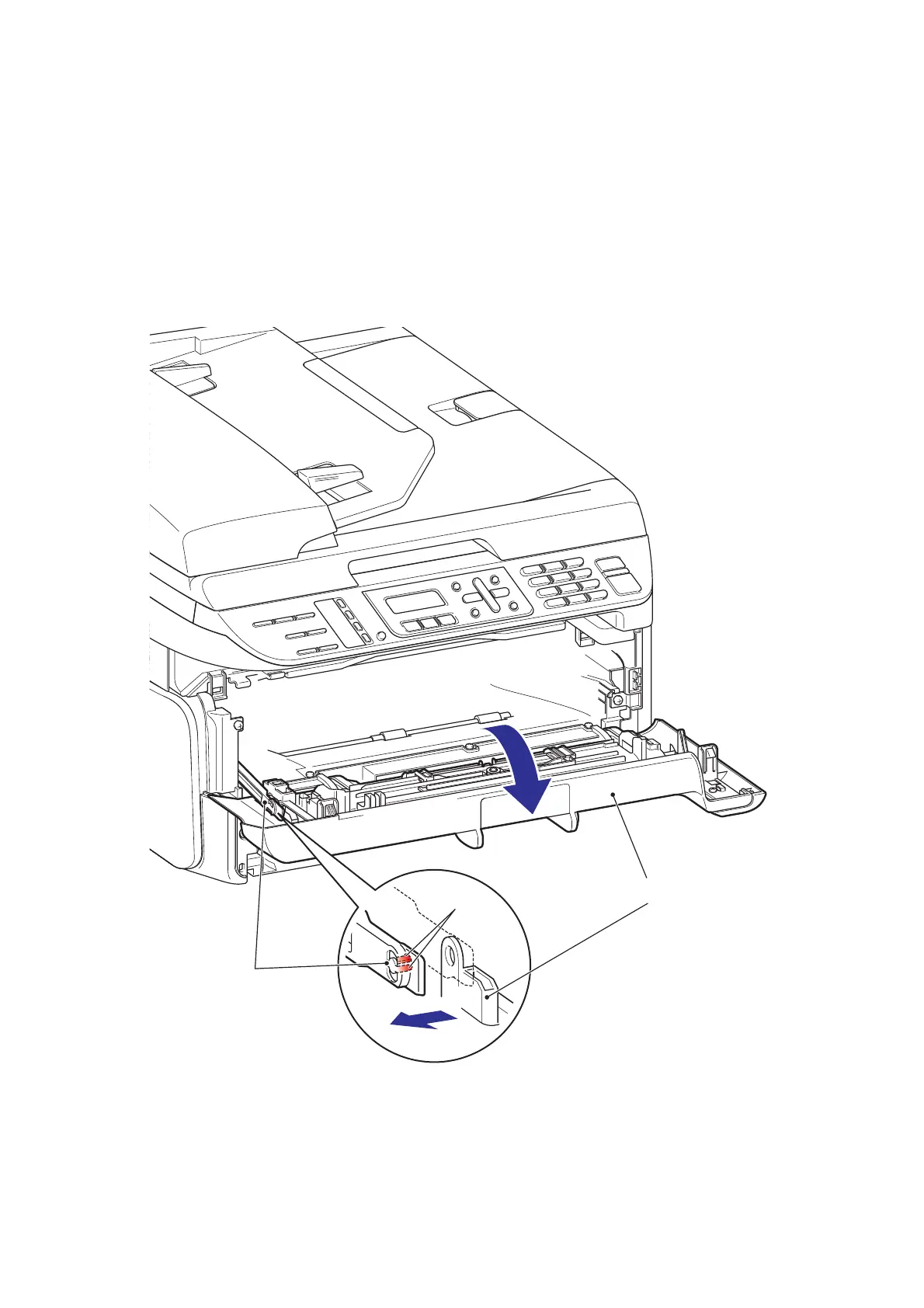

Fig. 3-9
Front cover ASSY
DEV joint link
1
Hook
2
