Brother MFC-7450 Service Manual

3-36
Confidential

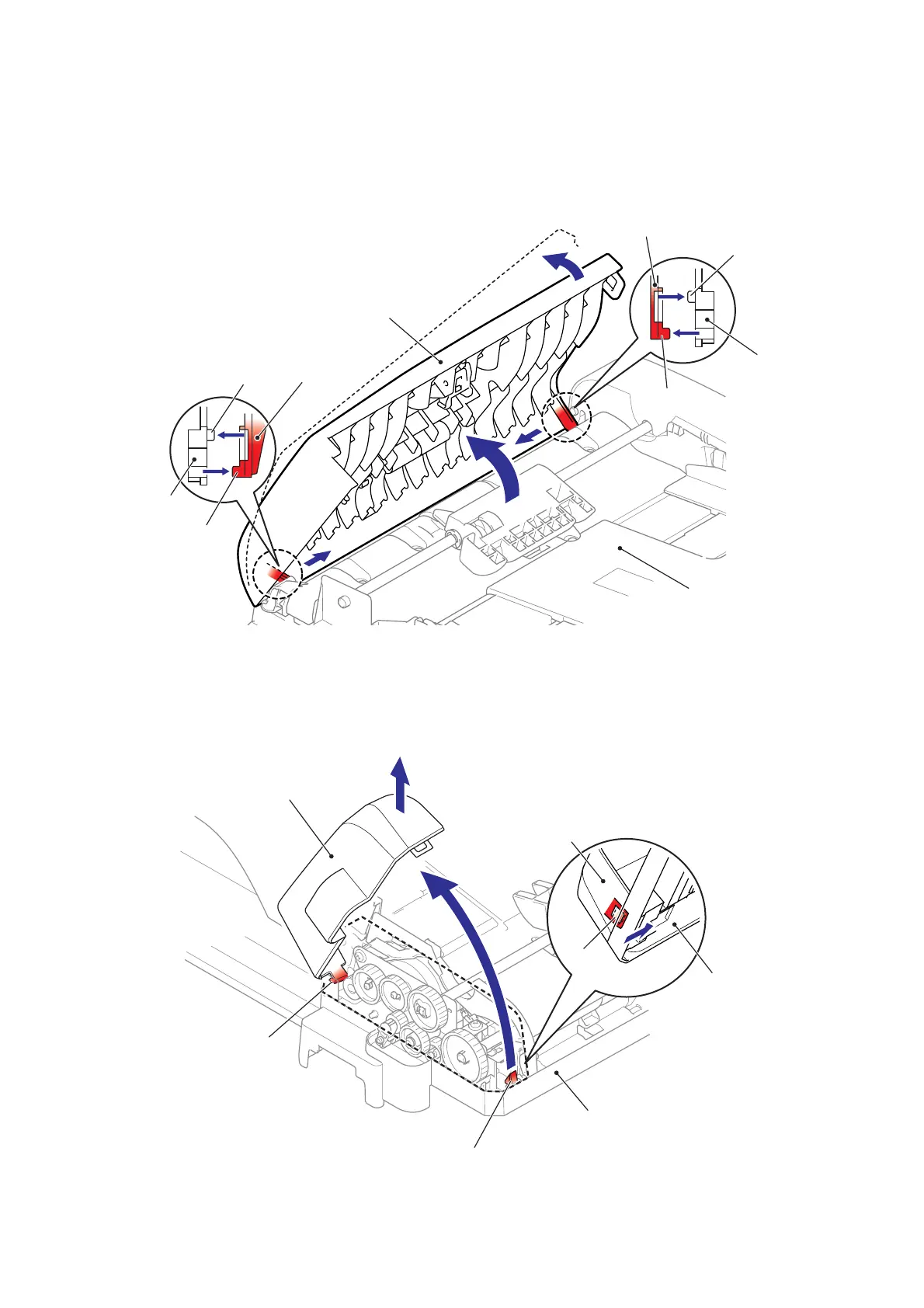

8.11.3 ADF COVER ASSY
(1) Open the ADF cover.
(2) Release the Boss to remove the ADF cover from the ADF unit.
Fig. 3-30
8.11.4 GEAR COVER
(1) Release the Hook to remove the Gear cover from the ADF unit.
Fig. 3-31
ADF unit
ADF cover
ADF cover
ADF cover
ADF unit
ADF unit
Boss
Boss
Boss
Boss
1
2b
2a
2a
2a
2a
2a
2a
2a
ADF unit
ADF unit
Gear cover
Gear cover
Hook
Hook
Hook
<Back side>
1a
1b
1c
1a
