3-66
Confidential
8.21 WIRELESS LAN PCB ASSY (only MFC7840W)
(1) Disconnect the Connector from the Wireless LAN PCB ASSY.
(2) Release the Hook to remove the Wireless LAN PCB ASSY from the Main body.

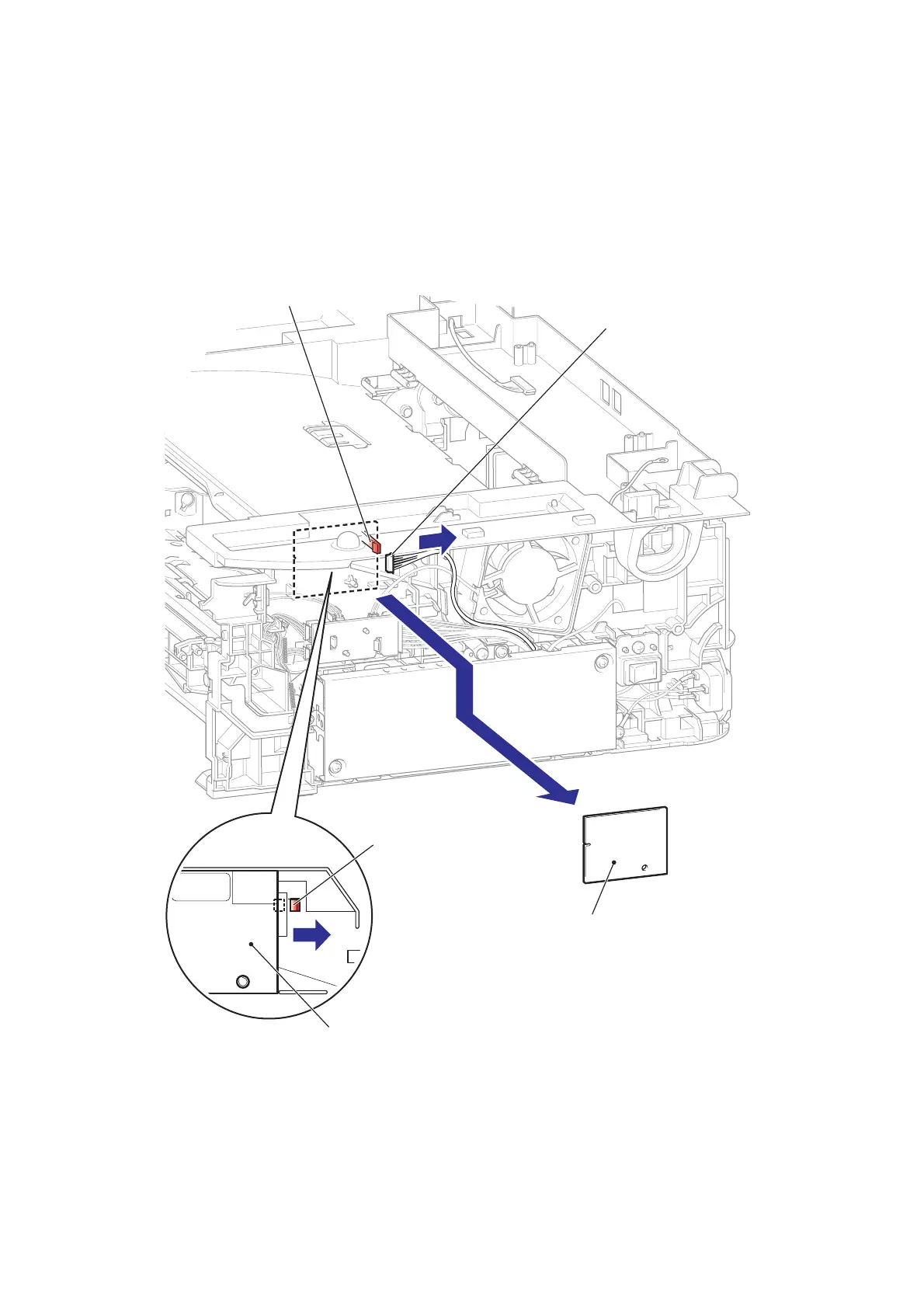

Fig. 3-65
Connector
Hook
Wireless LAN PCB ASSY
Wireless LAN PCB ASSY
Hook
1a
2a
1
1a
2b
<Right side>
