3-47
Confidential
8.11.13

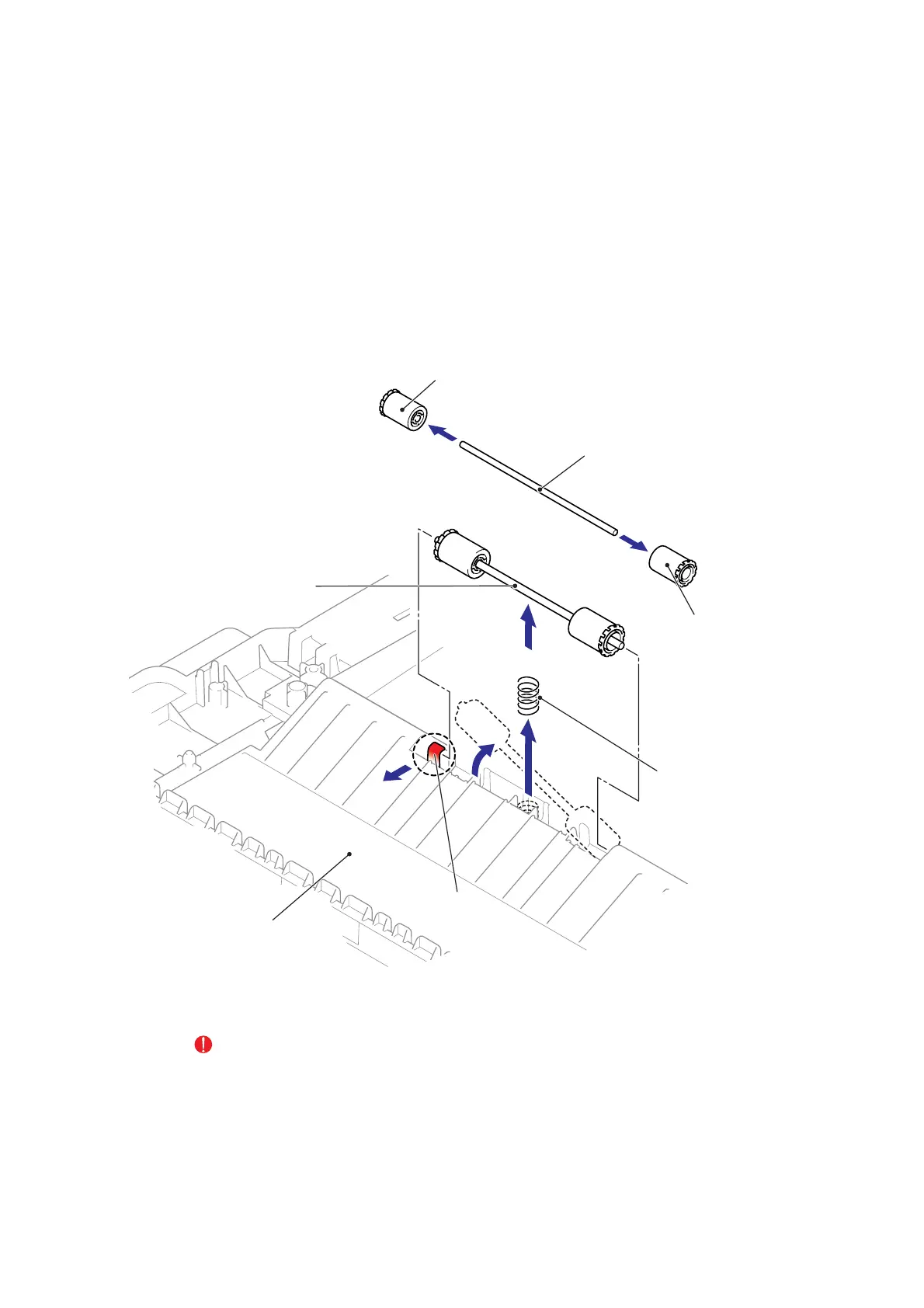

PRESSURE ROLLER ASSY
(1) Release the Hook to remove the Pressure roller ASSY from the Document cover sub
ASSY.
(2) Remove the two Pressure rollers from the Pressure roller shaft.
(3) Remove the Pressure roller spring from the Document cover sub ASSY.
Fig. 3-42
CAUTION:
Be careful not to get grease on the roller.
Document cover sub ASSY
Pressure roller
Pressure roller shaft
Pressure roller
Hook
Pressure roller spring
Pressure roller ASSY
1b
1a
2
2
1c
3
