8.25 HIGH-VOLTAGE PS PCB ASSY
(1) Disconnect the two Connectors from the High-voltage PS PCB ASSY.
(2) Remove the two Taptite cup S M3x6 SR screws and the two Taptite bind B M4x12
screws.
(3) Release the Hook to remove the High-voltage PS PCB ASSY from the Drive sub ASSY.

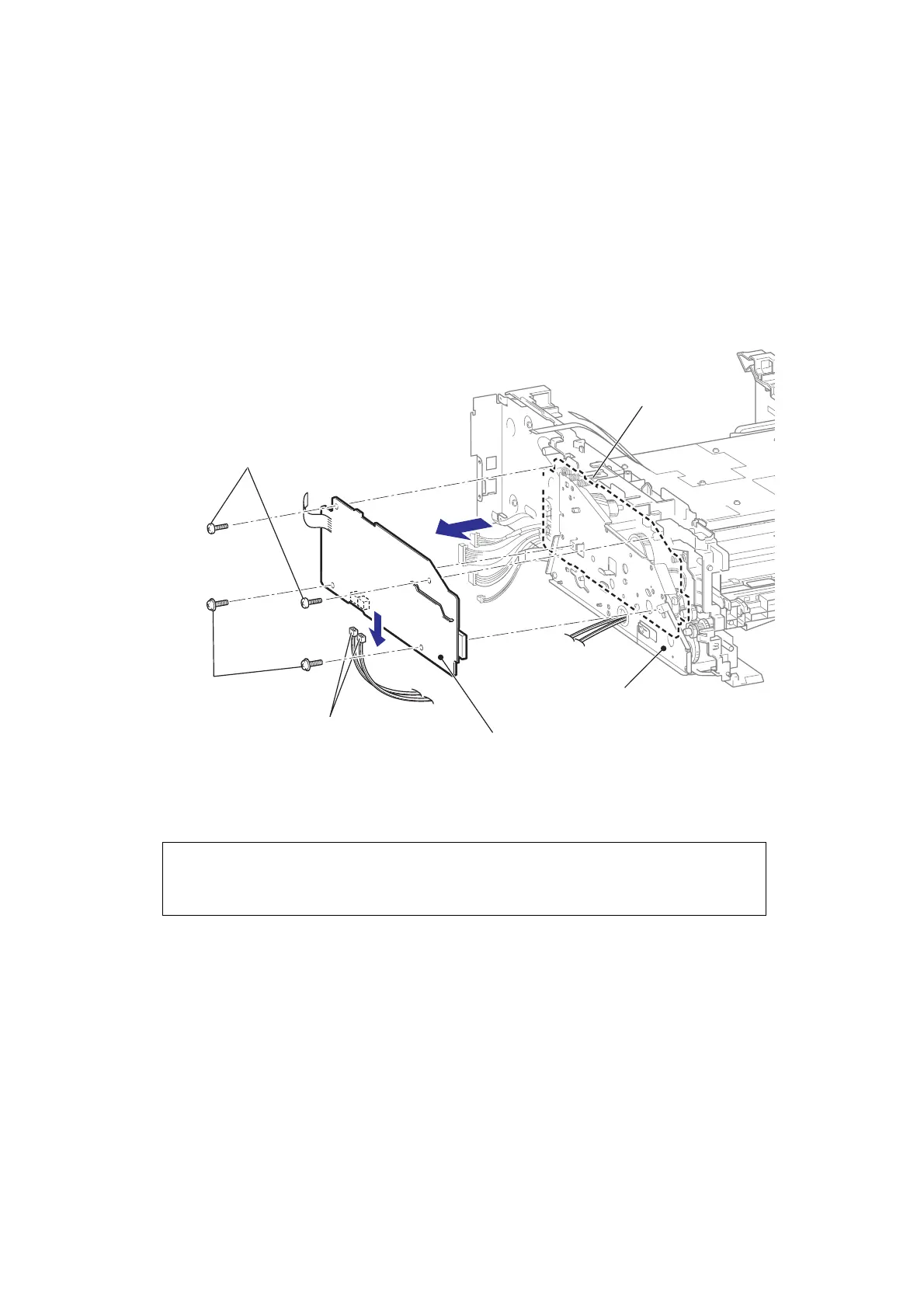

Fig. 3-70
Note:
There are procedures for disassembling Main frame L ASSY after this procedure.
(8.40 MAIN FRAME L ASSY)
High-voltage PS PCB ASSY
Drive sub ASSY
Hook
Taptite bind B M4x12
Taptite cup S M3x6 SR
Connector
3
1
<Left side>
