Brother MFC-7450

3-93
Confidential
8.37 REGISTRATION SOLENOID / T1 SOLENOID
8.37.1 REGISTRATION SOLENOID
(1) Remove the T1 sector gear spring from the T1 gear 38/31 sector.
(2) Remove the T1 gear 38/31 sector from the Main body.
(3) Release the Hook to remove the Registration gear 25 terminal from the Main body.
(4) Remove the Registration differential gear ASSY from the Main body.

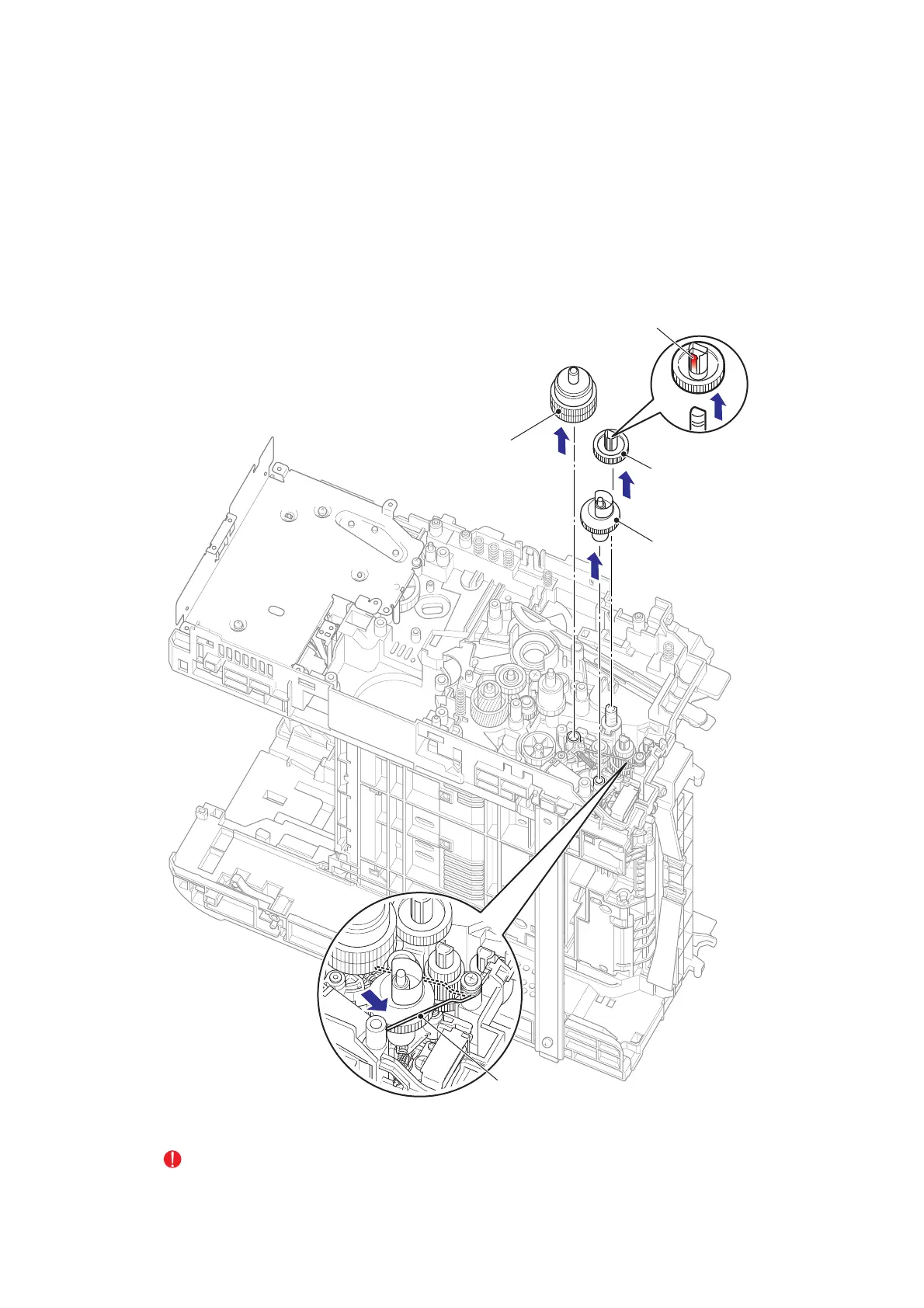

Fig. 3-97
CAUTION:
Be careful, as the inside gear of the Registration differential gear ASSY is easy to fall out.
Registration gear
25 terminal
Hook
Registration differential gear ASSY
T1 sector gear spring
T1 gear 38/31 sector
1
2
3a
4a
2
3
3
4
<Left side>
