(5) Remove the Registration solenoid lever spring from the Main body and the Registration
solenoid lever.
(6) Remove the Harness from the Guide part of the Main body.
(7) Remove the Taptite bind B M3x10 screw, and then remove the Registration solenoid
from the Main body.
(8) Remove the Registration solenoid lever from the Registration solenoid.

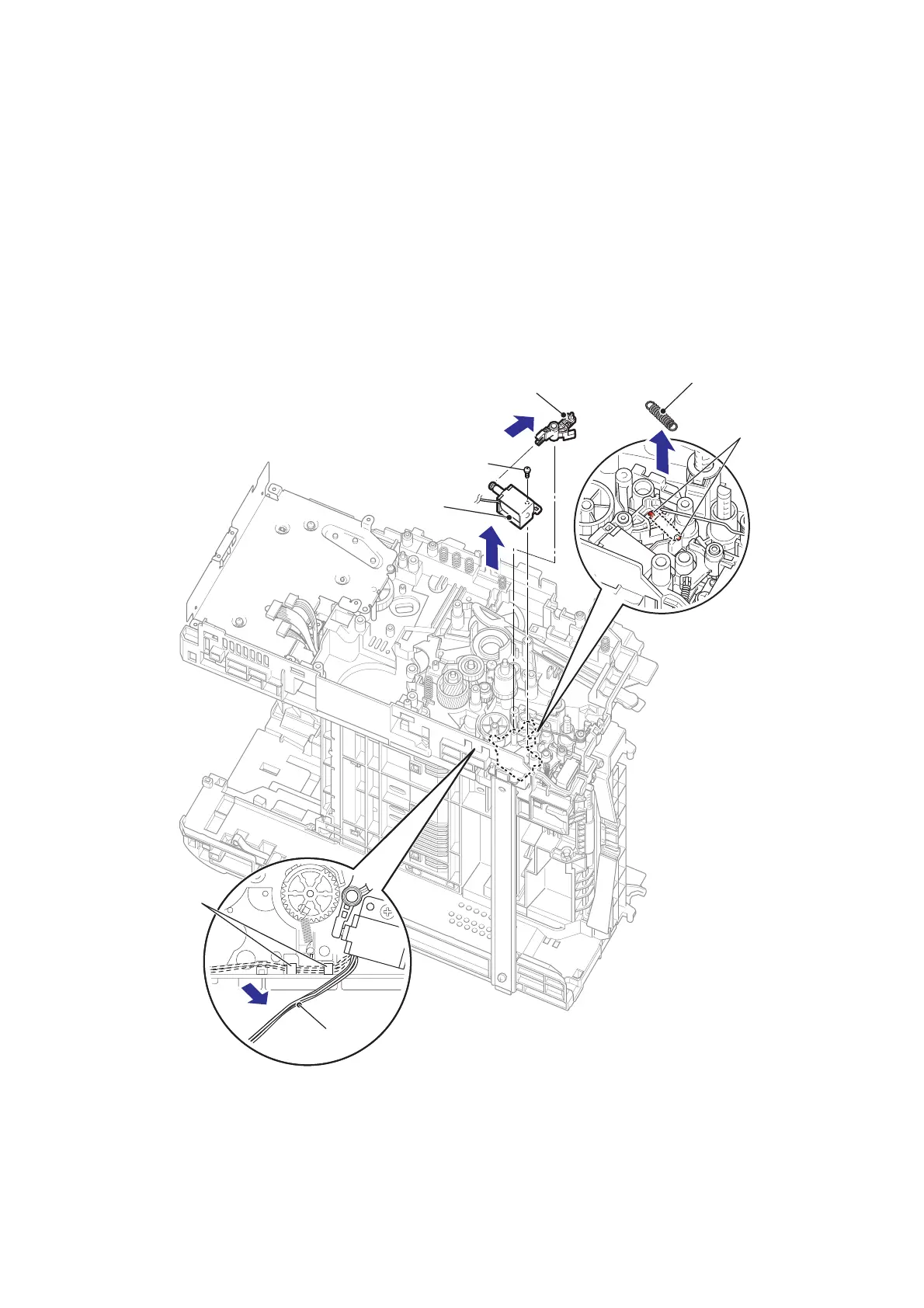

Fig. 3-98
<Left side>
6
7
5
8
5
Hook
Registration
solenoid lever
Registration solenoid
Taptite bind B M3x10
Registration solenoid
lever spring
Harness
Guide part
